Home >> Saturn >> 2007 >> VUE FWD L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> I/P Fuse Block

I/P Fuse Block

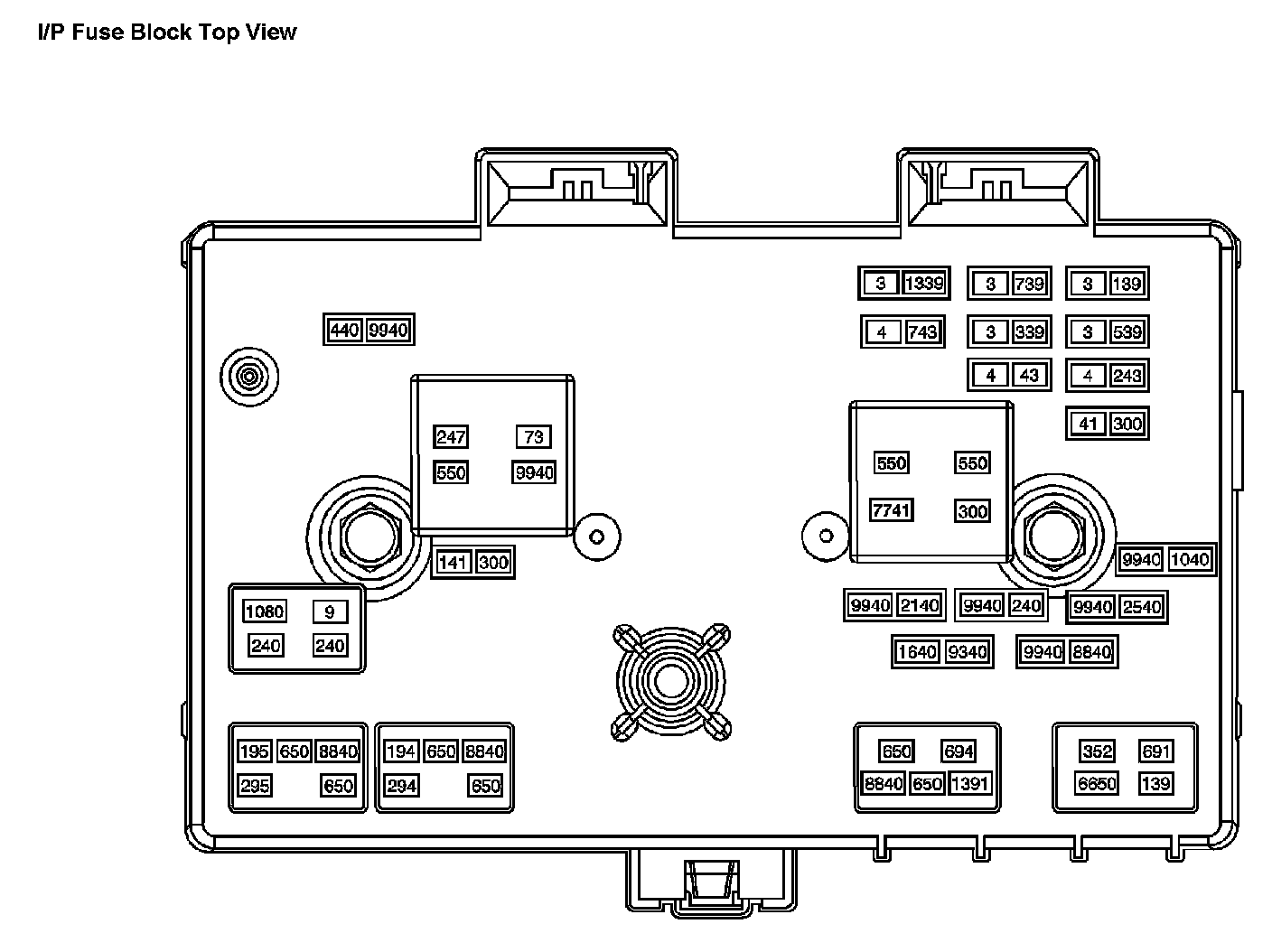

Location View:

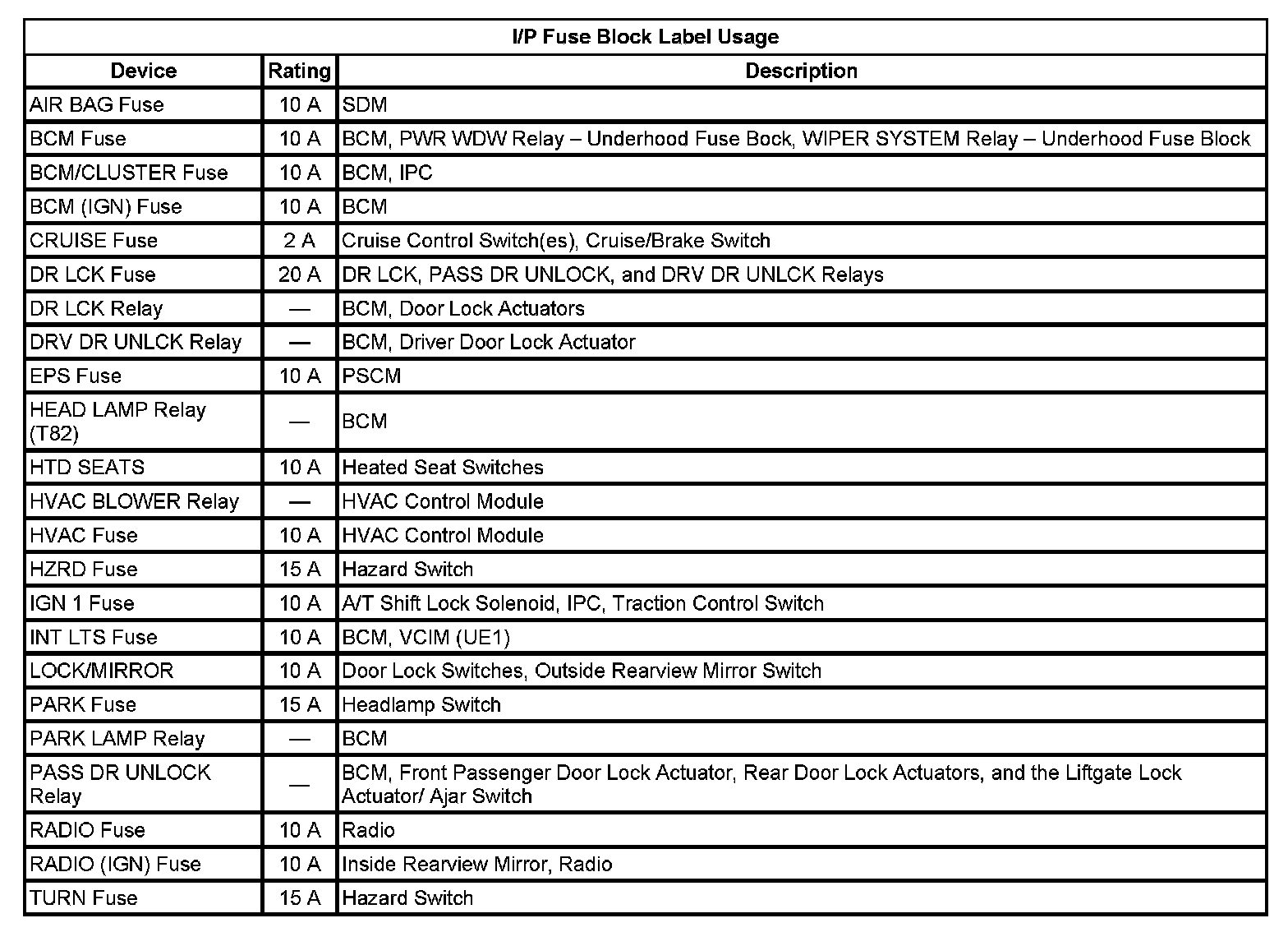

Application Table:

Location View:

Location View:
