Traction Control Switch: Service and Repair



Electronic Traction Control Switch Replacement

Removal Procedure

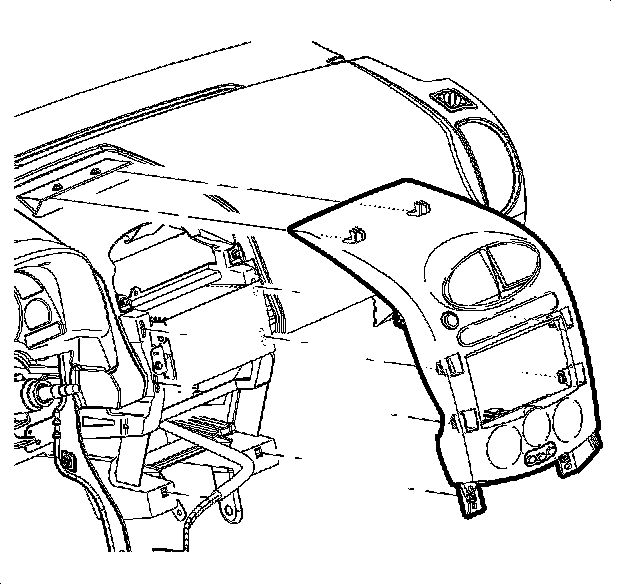

1. Remove the instrument panel (I/P) trim bezel.

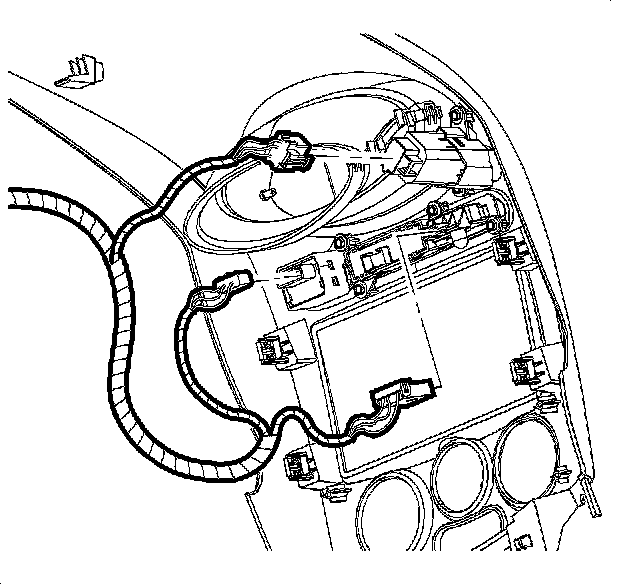

2. Carefully release the retaining tabs and remove the traction control switch from the trim bezel.

Installation Procedure




1. Install the traction control switch to the trim bezel. Ensure that the retaining tabs are fully engaged.




2. Install the instrument panel (I/P) trim bezel.
