Seat Switch Bezel Replacement



Seat Switch Bezel Replacement

Removal Procedure

1. Move the seat to the most forward position.

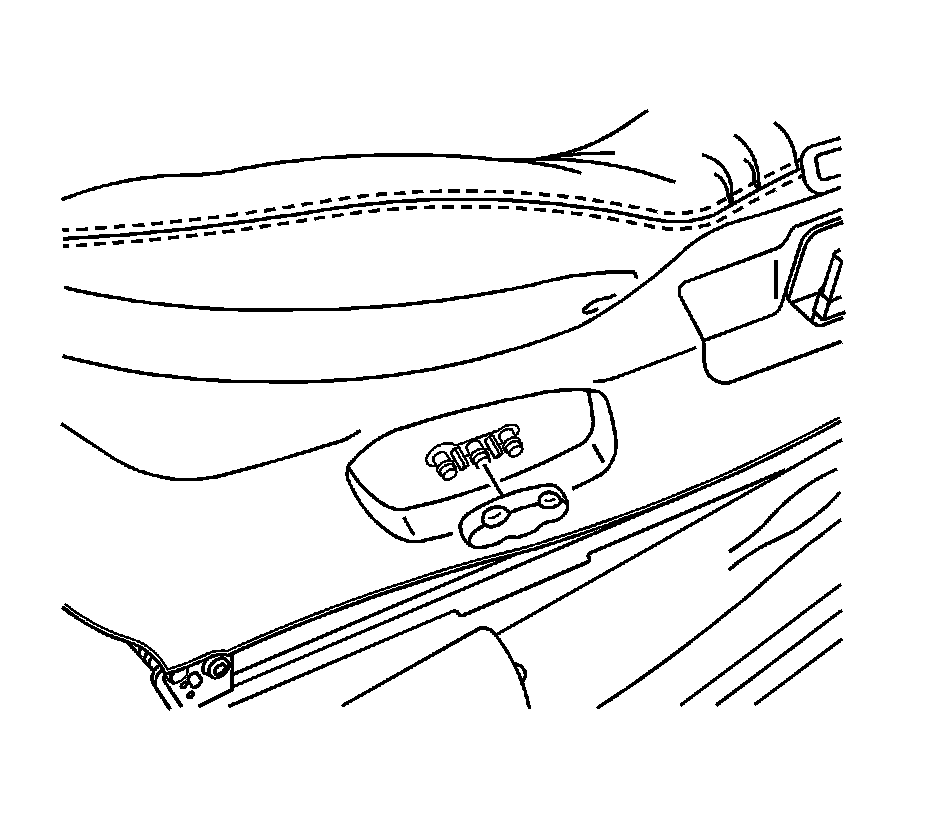

2. Using a flat-bladed tool, remove the bezel from the seat switch.



Installation Procedure





1. Install the seat switch bezel. Press into place.
2. Return the seat to the original position.
