Seat Temperature Element: Testing and Inspection



Heated Seat Inoperative

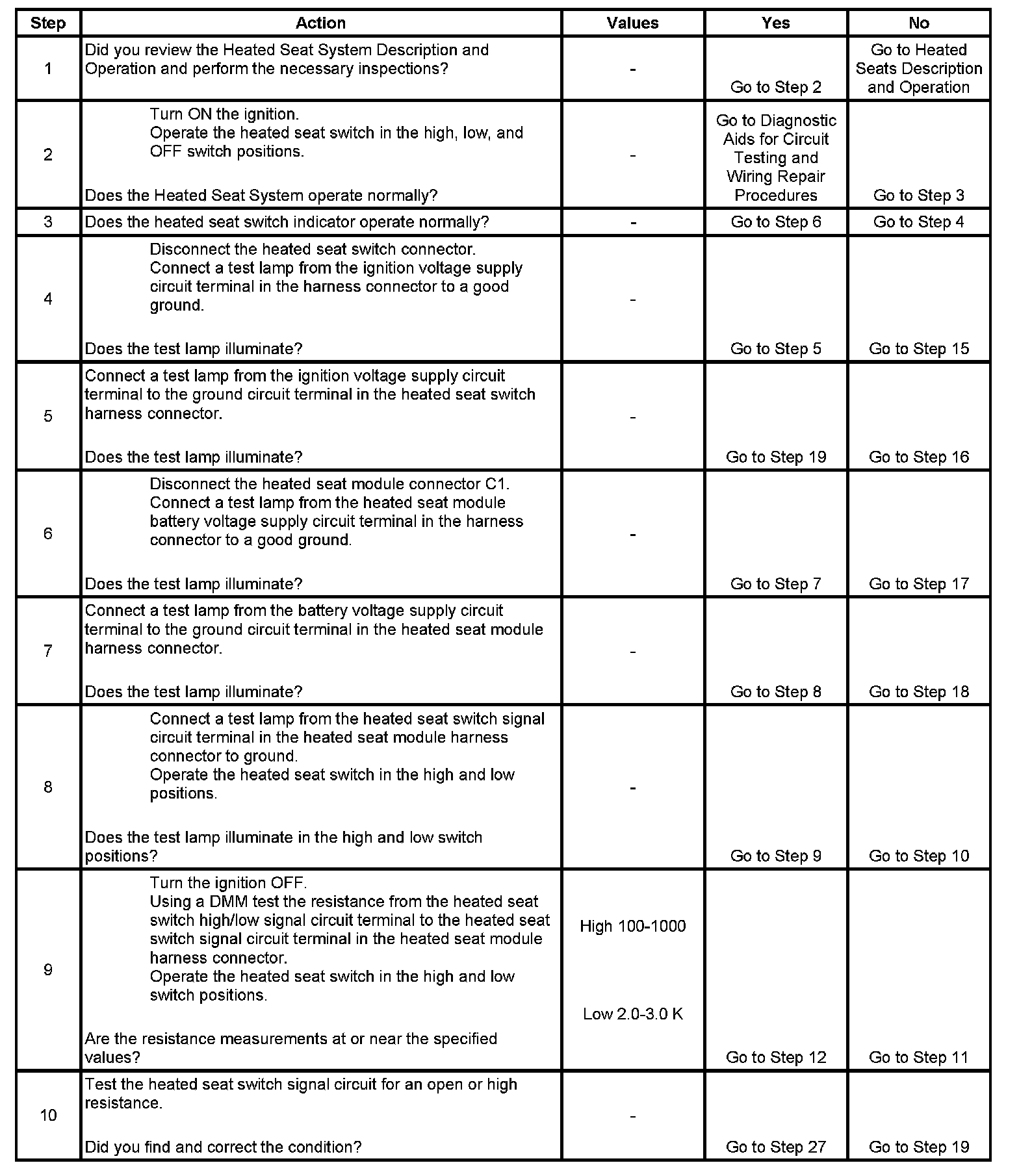

Step 1 - Step 10:

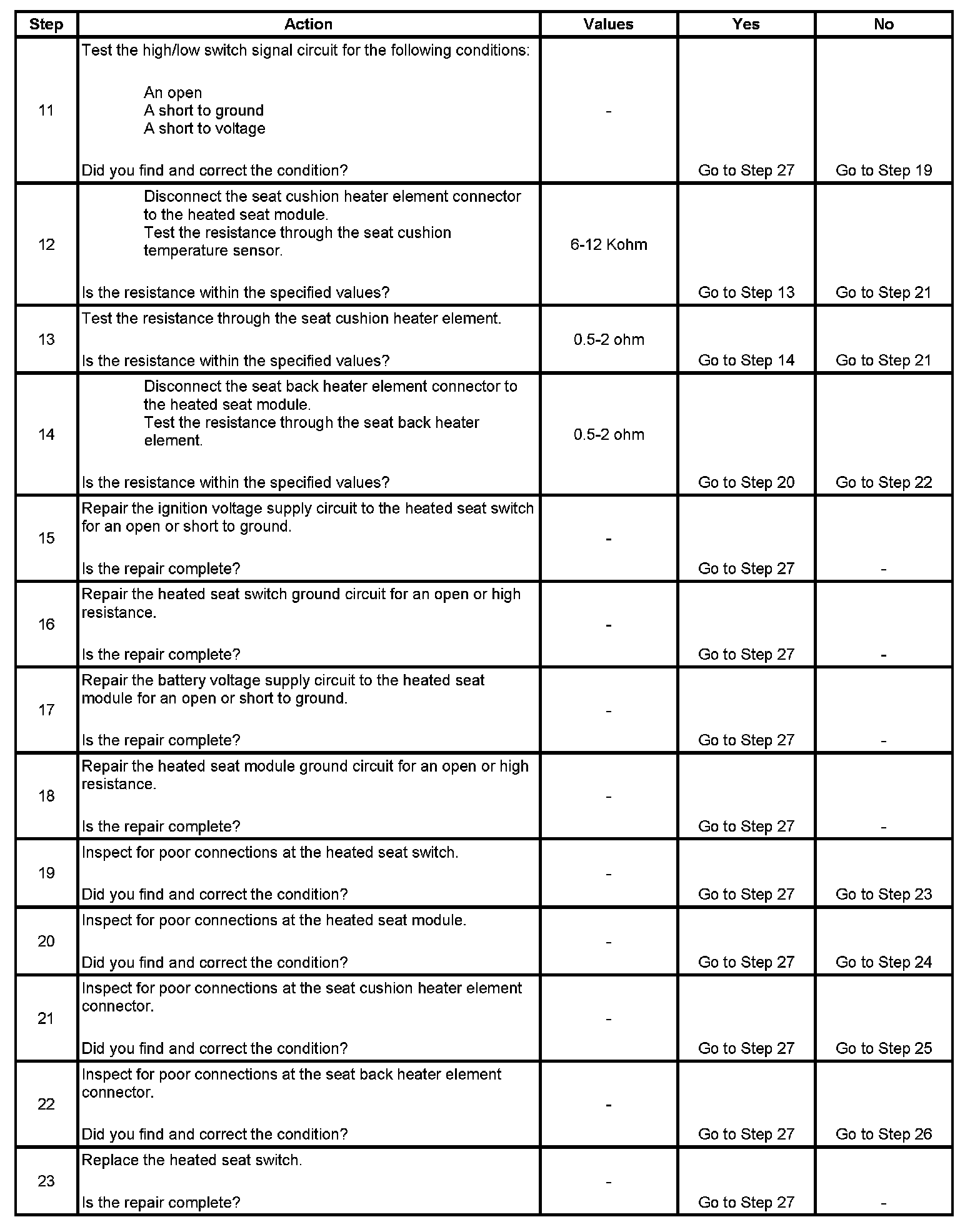

Step 11 - Step 23:

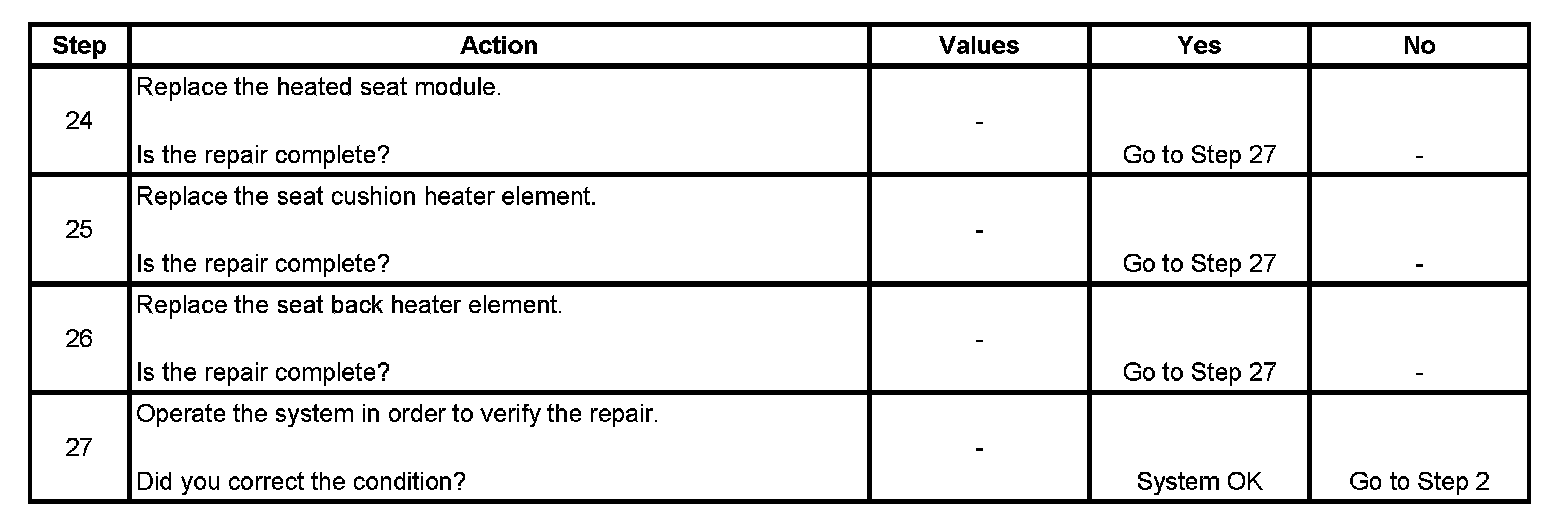

Step 24 - Step 27:
