Mirror Replacement

Mirror Replacement

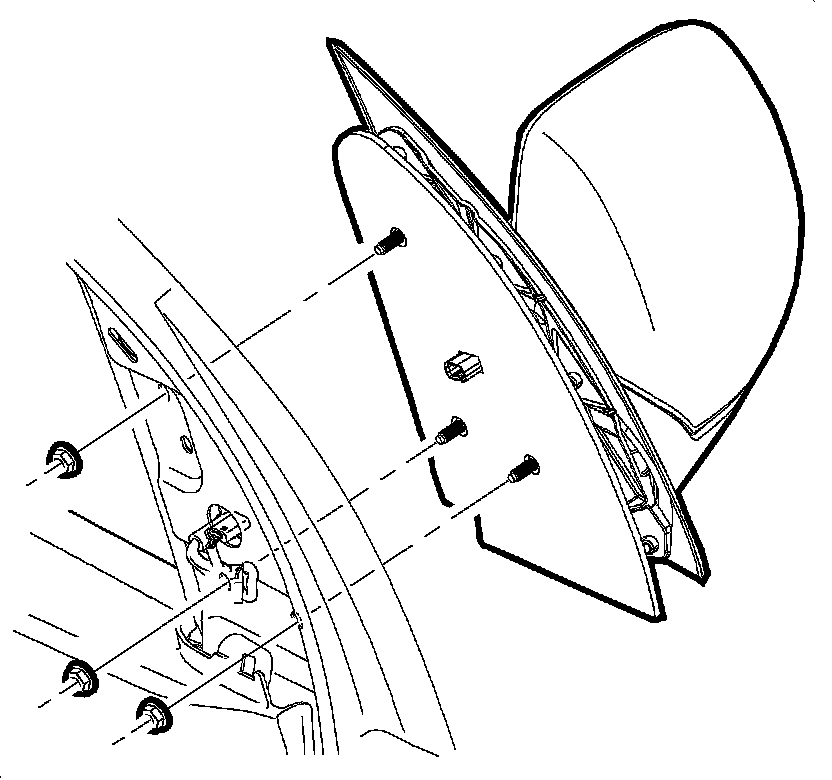

Removal Procedure

1. Remove the front door upper trim panel extension.




2. Disconnect the mirror electrical connector, if equipped.
3. Remove the mirror to door nuts.
4. Remove the mirror from the door.

Installation Procedure




1. Position the mirror to the door.

Notice: Refer to Fastener Notice.

2. Install the outside rearview mirror nuts.

Tighten the nuts to 10 N.m (89 lb in).

3. Connect the electrical connector to the mirror, if equipped.
4. Inspect the operation of the mirror.
5. Install the front door upper trim panel extension.
