Liftgate Lock Cylinder Replacement

Liftgate Lock Cylinder Replacement

Removal Procedure




1. Open the liftgate.
2. Remove the liftgate trim panel.

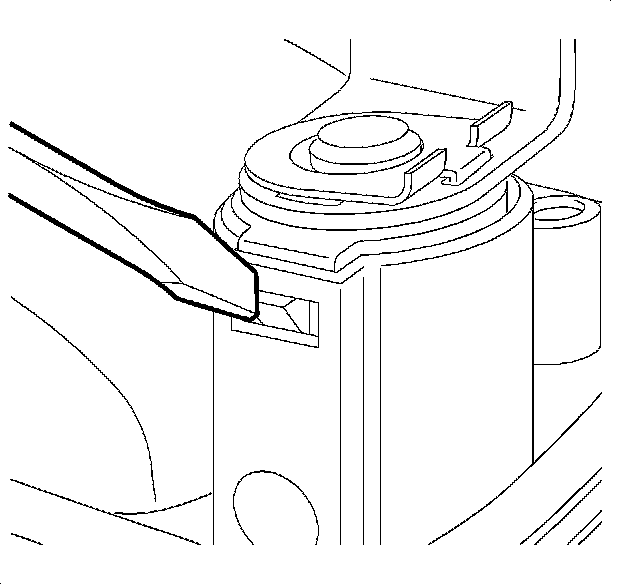

3. Using a pick type tool, depress the liftgate lock cylinder release button on the bottom side of the liftgate outside handle.

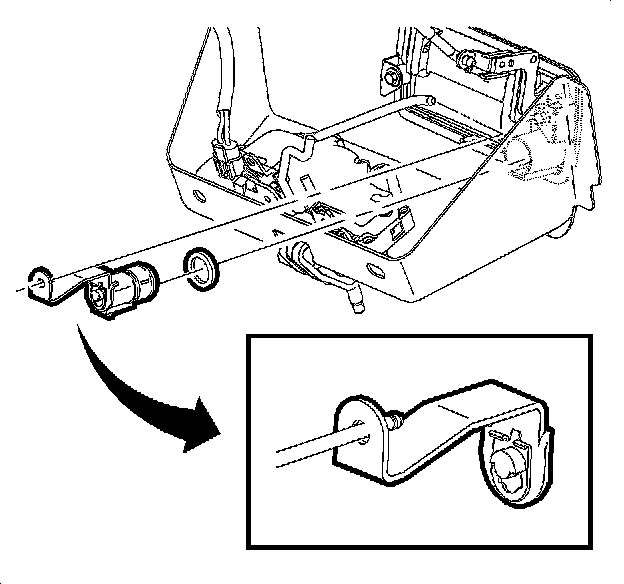

4. Remove the liftgate lock cylinder from the outside handle and disconnect the lock cylinder rod from the cylinder lever.

Installation Procedure




1. Install the liftgate lock cylinder gasket, if removed.
2. Connect the lock cylinder rod to the lock cylinder lever.
3. Install the liftgate lock cylinder to the outside handle.
4. Install the liftgate trim panel.
5. Close the liftgate.
