Door Locks: Service and Repair



Front Side Door Locking Rod Replacement

Removal Procedure

1. Remove the front door latch.

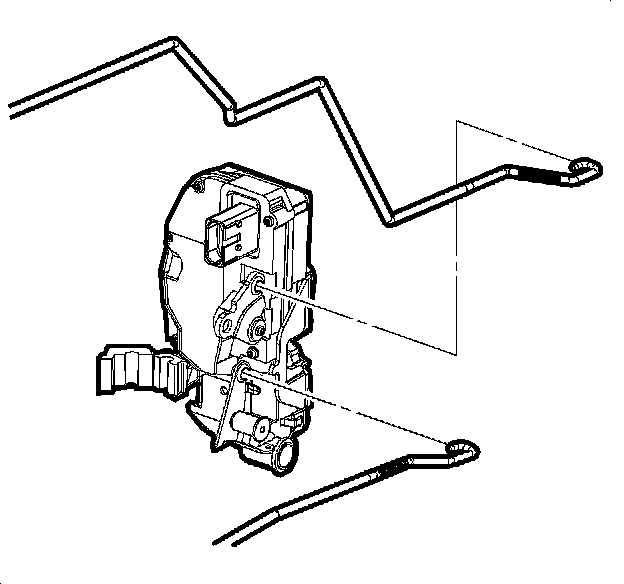

2. Disconnect the lock rod from the latch assembly.

Installation Procedure




1. Connect the lock rod to the latch assembly.
2. Install the front door latch.
