Home >> Saturn >> 2007 >> RELAY AWD V6-3.9L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Electrical Specifications

Electrical Specifications

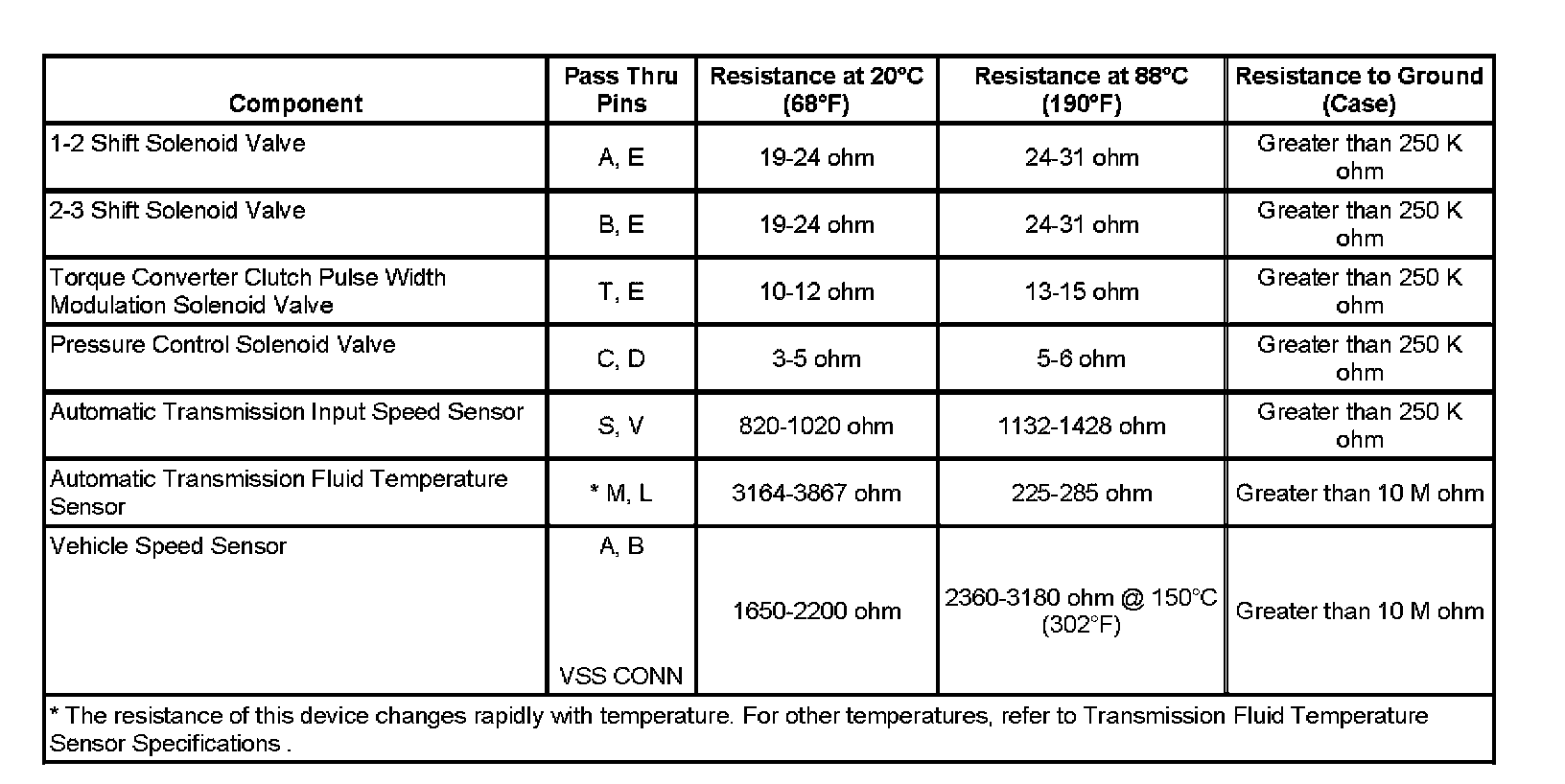

Component Resistance

Component Resistance:
