Electrical Diagrams



Automatic Transmission Controls Schematics

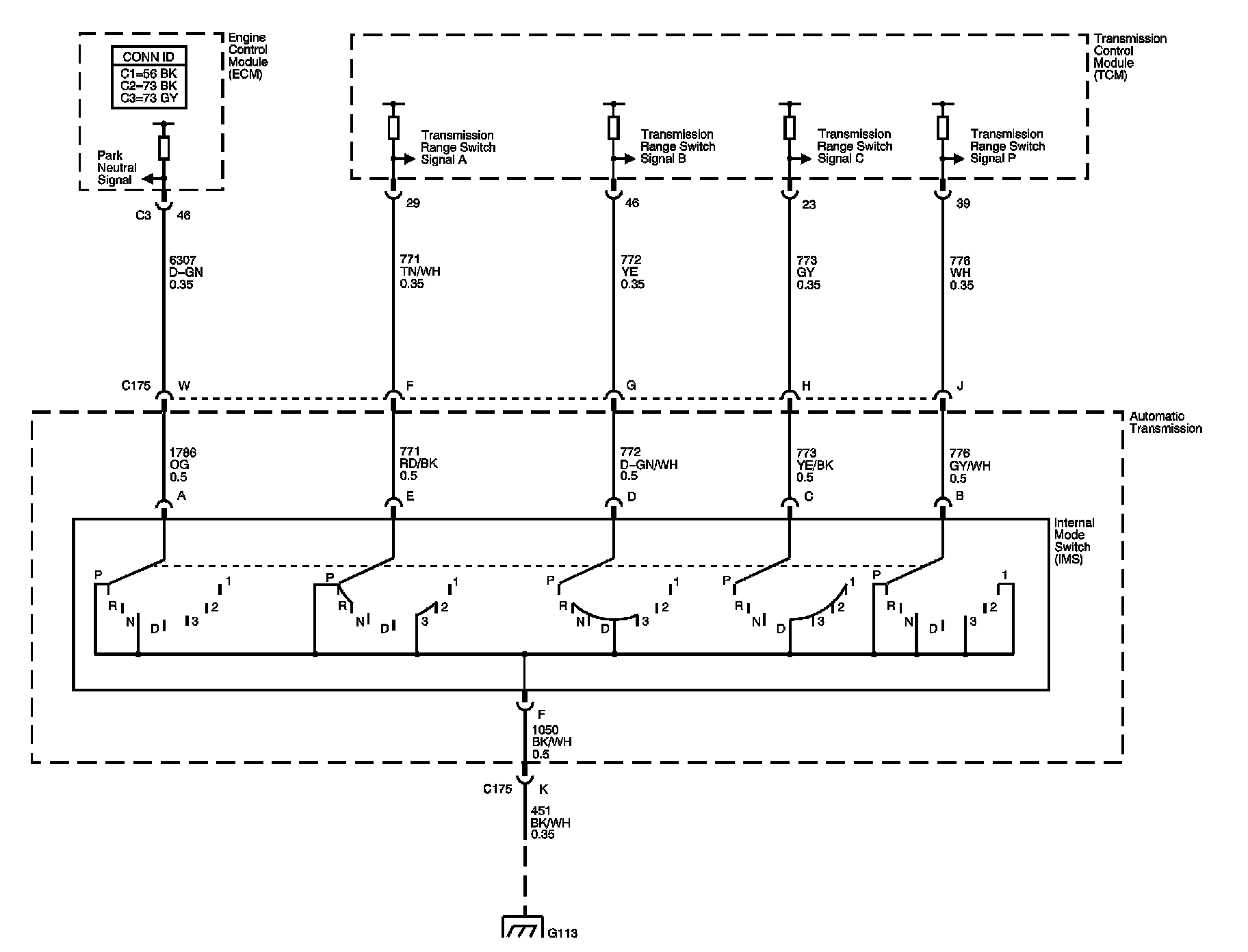

Automatic Transmission Controls Schematics (Part 1):

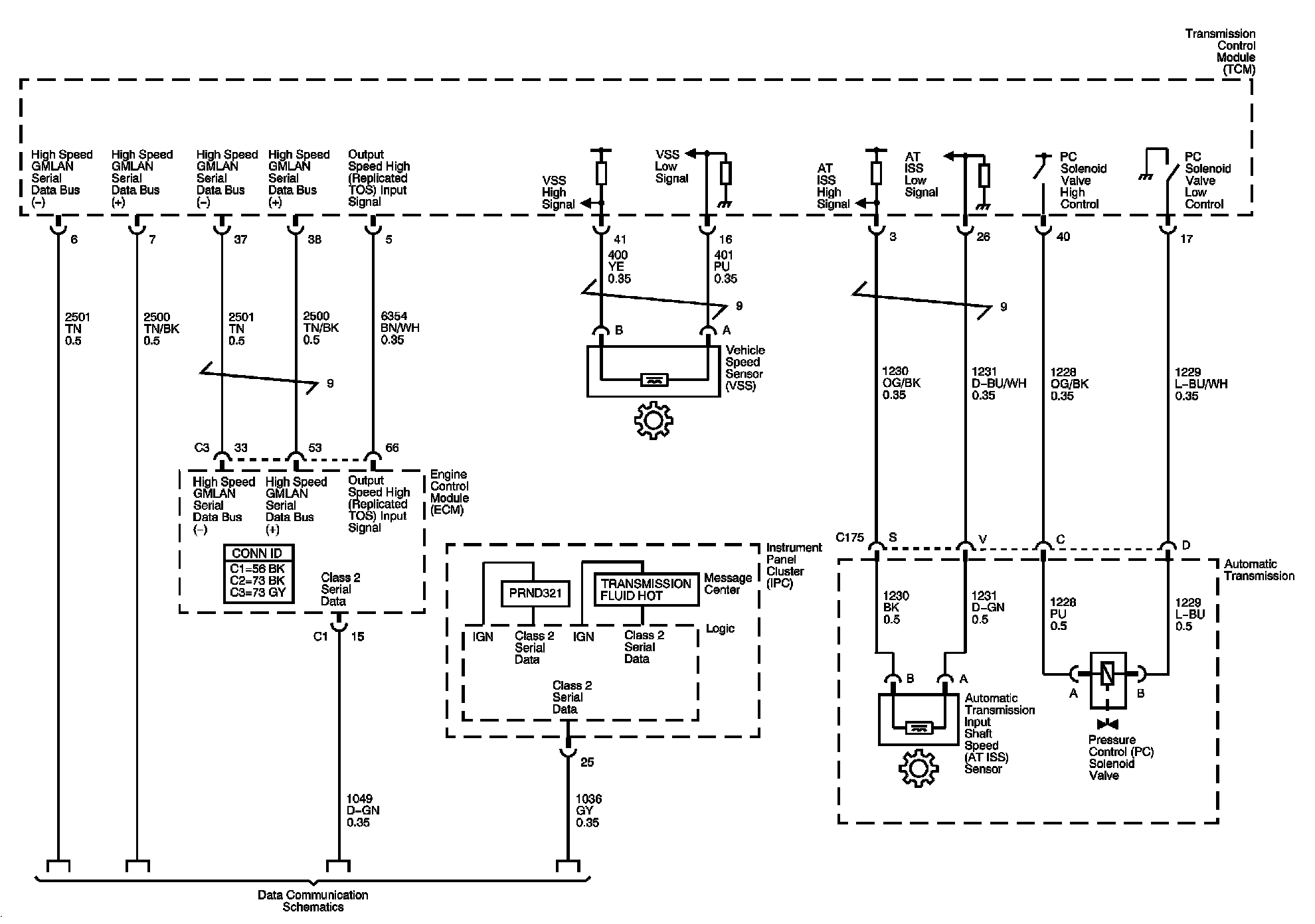

Automatic Transmission Controls Schematics (Part 2):

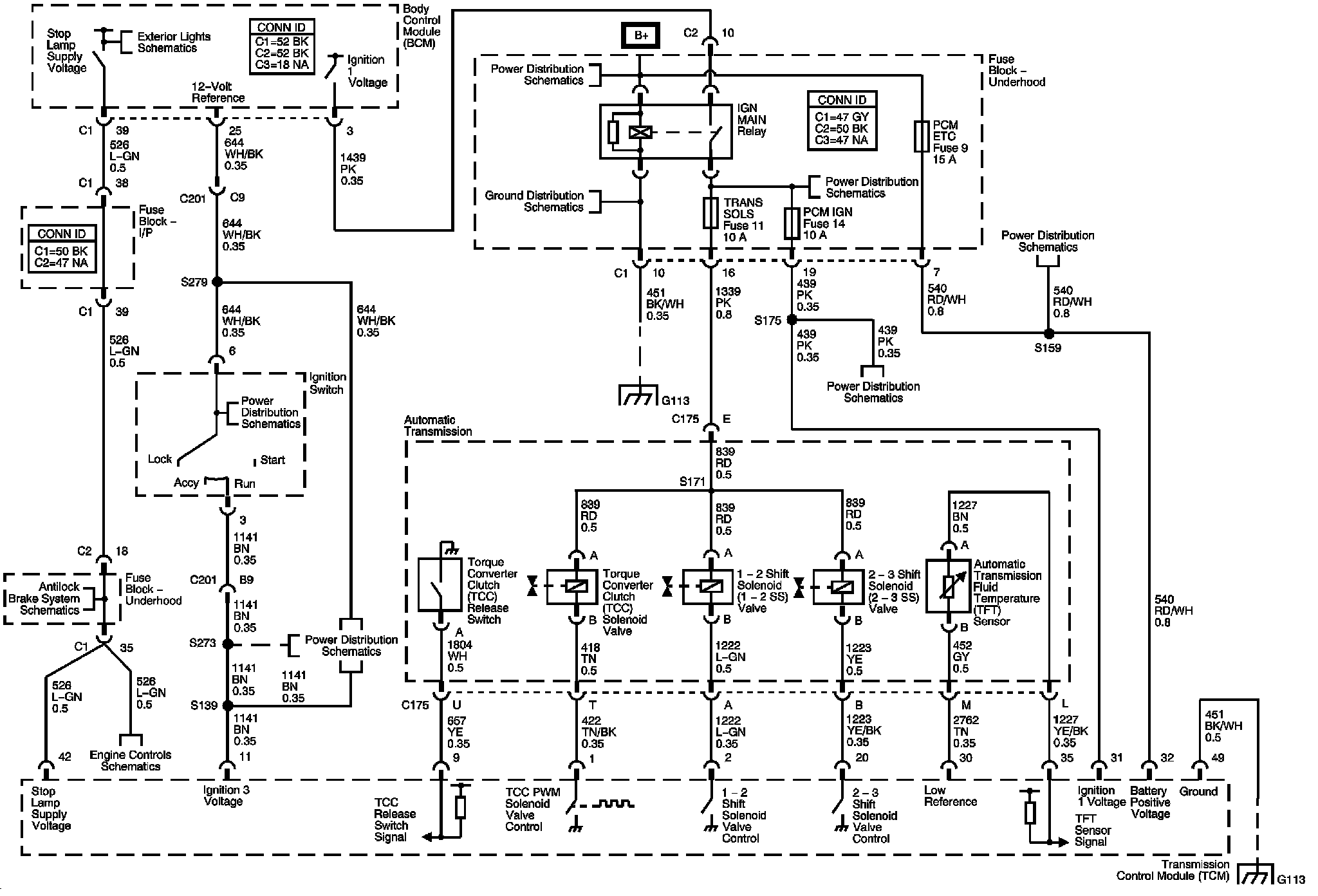

Automatic Transmission Controls Schematics (Part 3):





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
