Super Charge Inlet Pressure (SCIP) Sensor

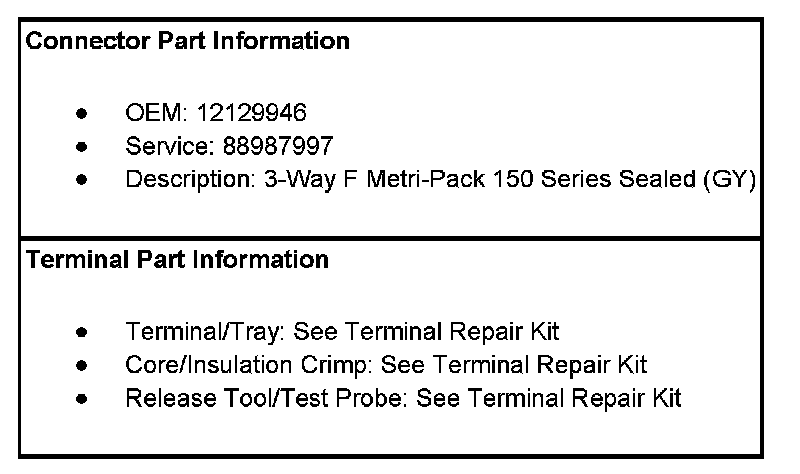

Engine Controls Connector End Views

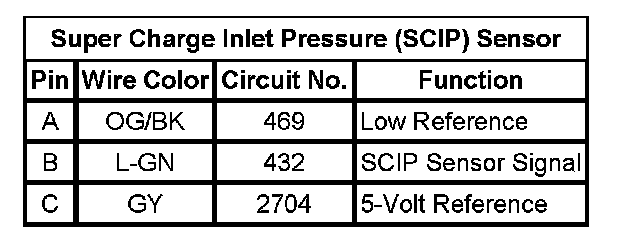

Super Charge Inlet Pressure (SCIP) Sensor
