Drive Motor Control Module: Diagrams



Hybrid Controls Connector End Views

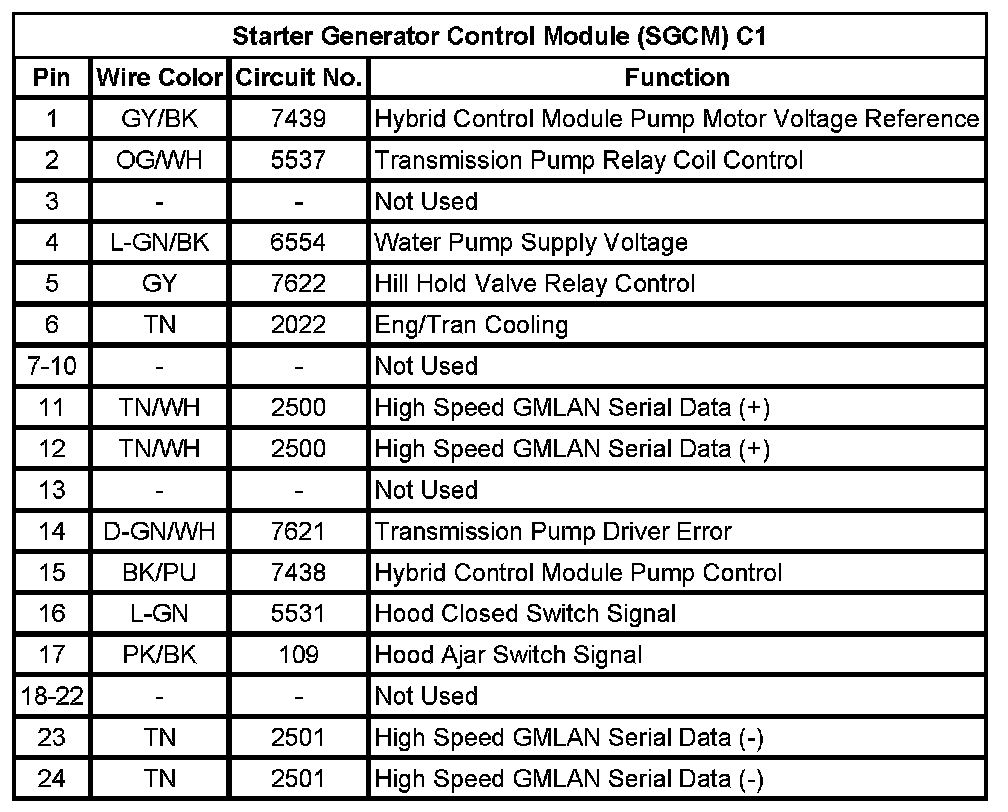

Starter Generator Control Module (SGCM) C1

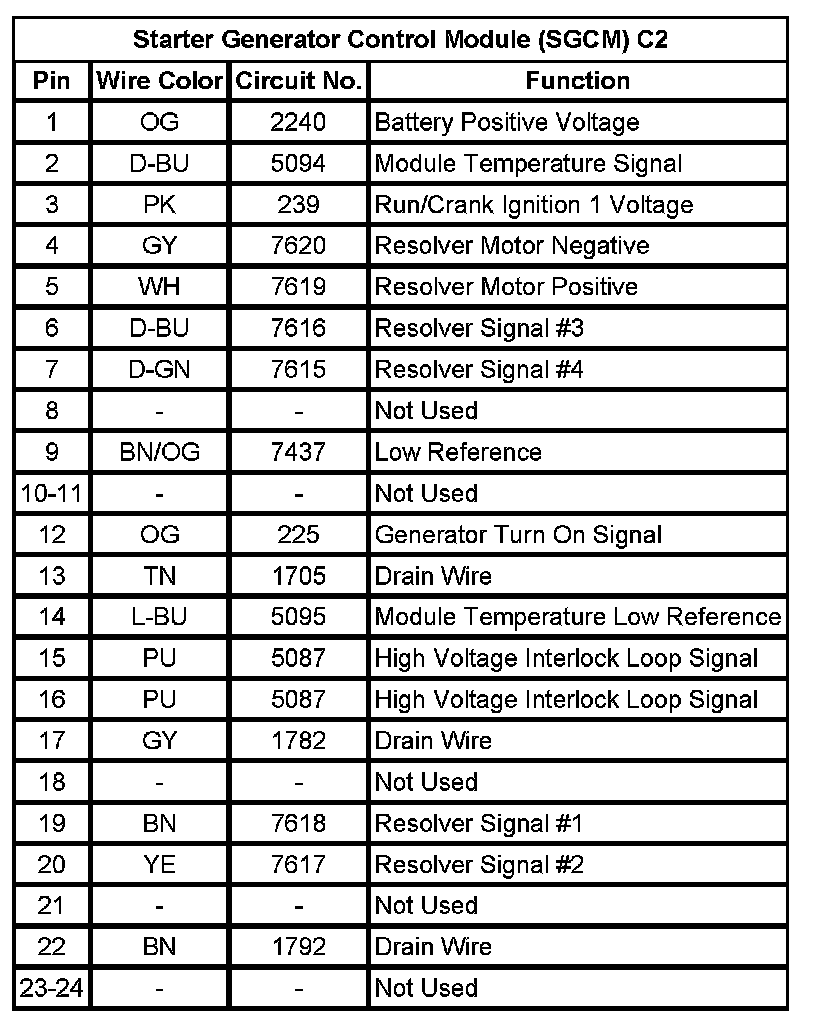

Starter Generator Control Module (SGCM) C2
