Trim Height Specifications



Trim Height Specifications

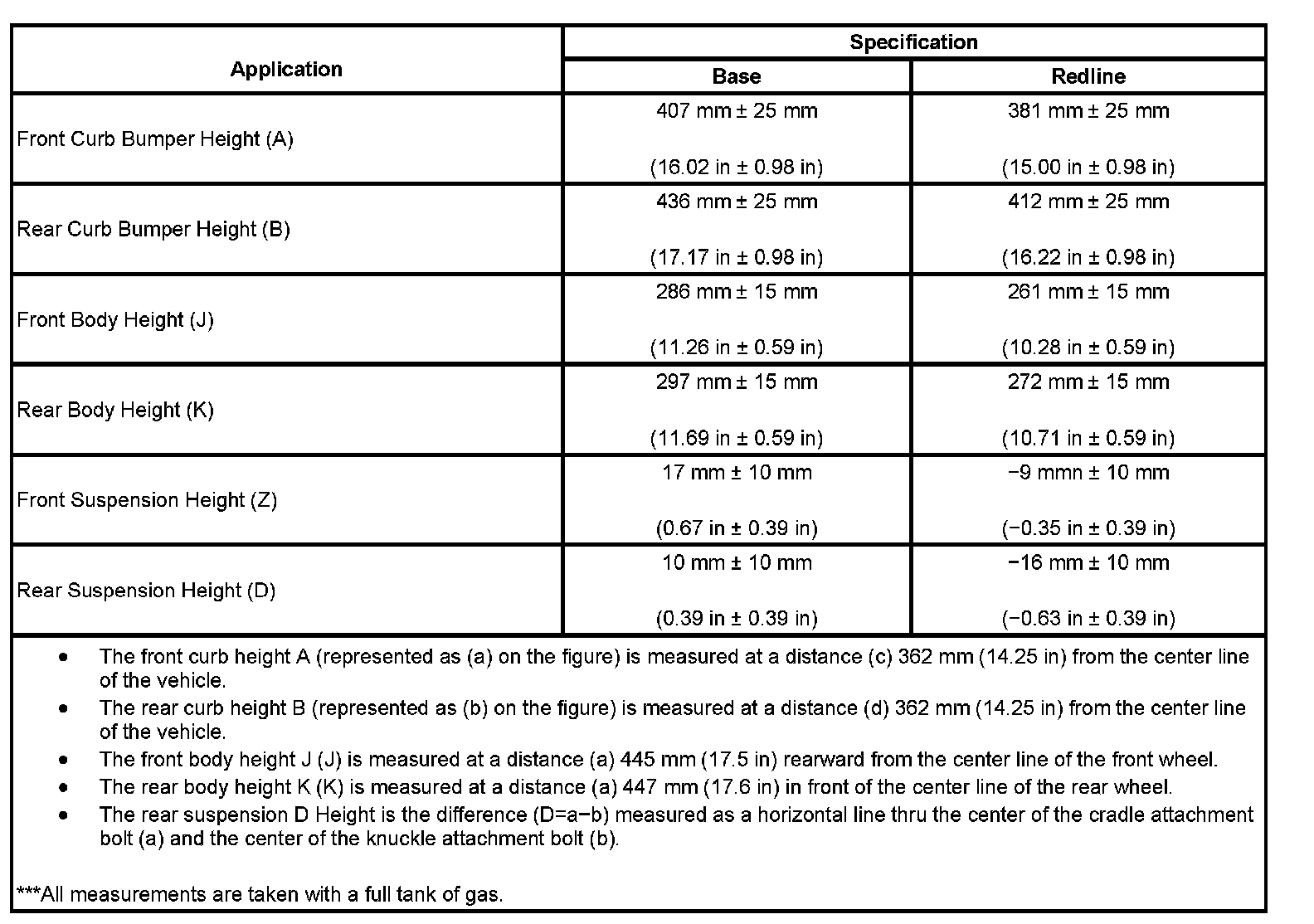

Trim Height Specifications:




Measuring Z Height:

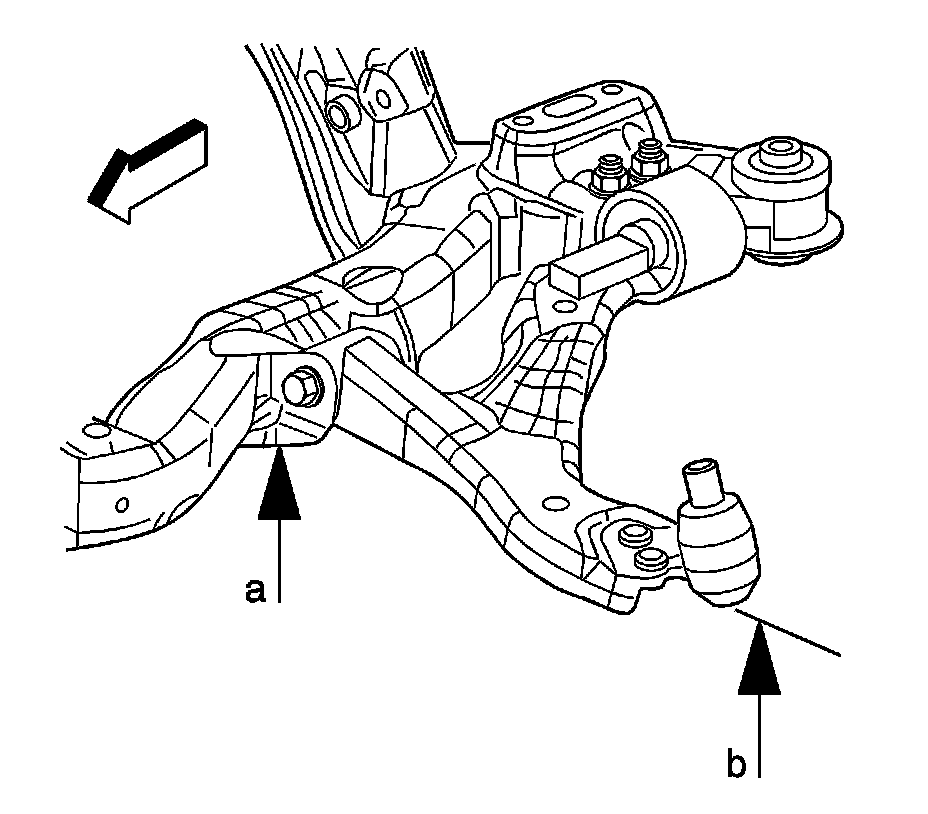

Measuring D Height:




Measuring J or K Height:

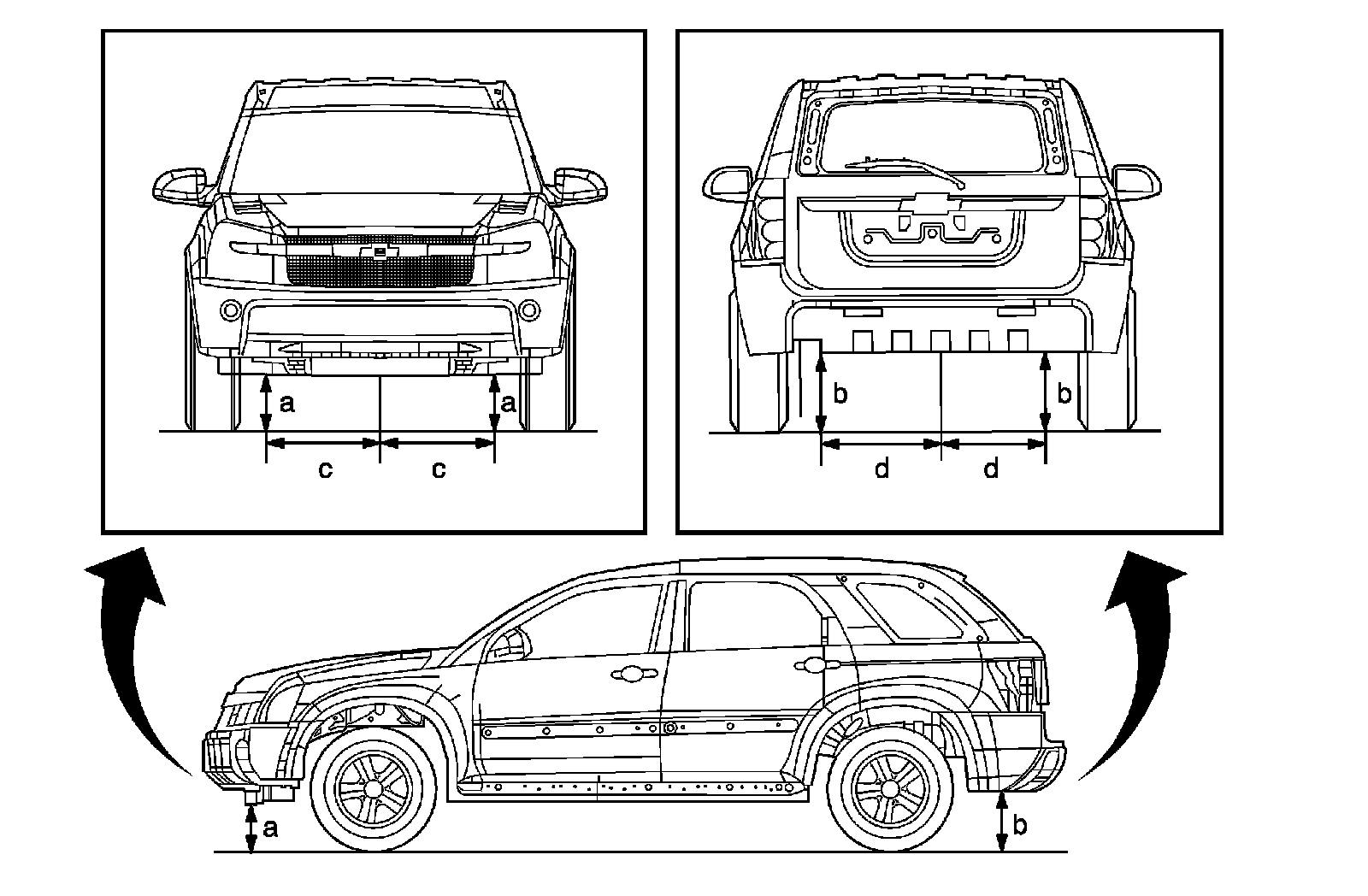

Measuring A or B Height:
