Control Module: Diagrams

Automatic Transmission Related Connector End Views

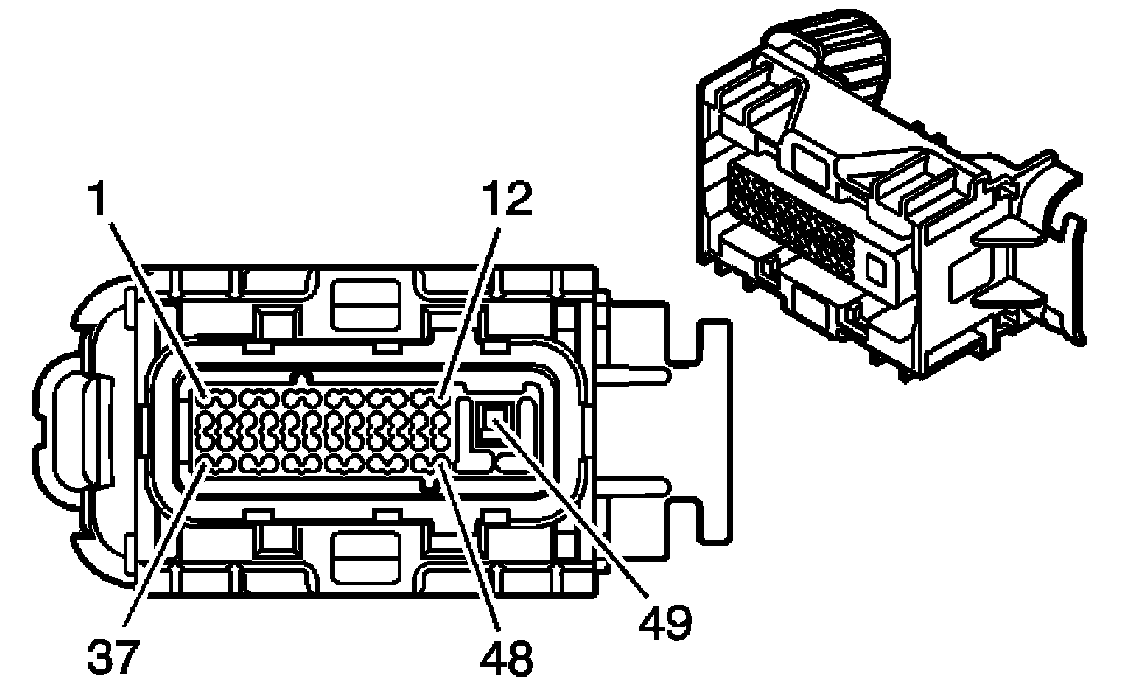

Transmission Control Module (TCM), Engine Side

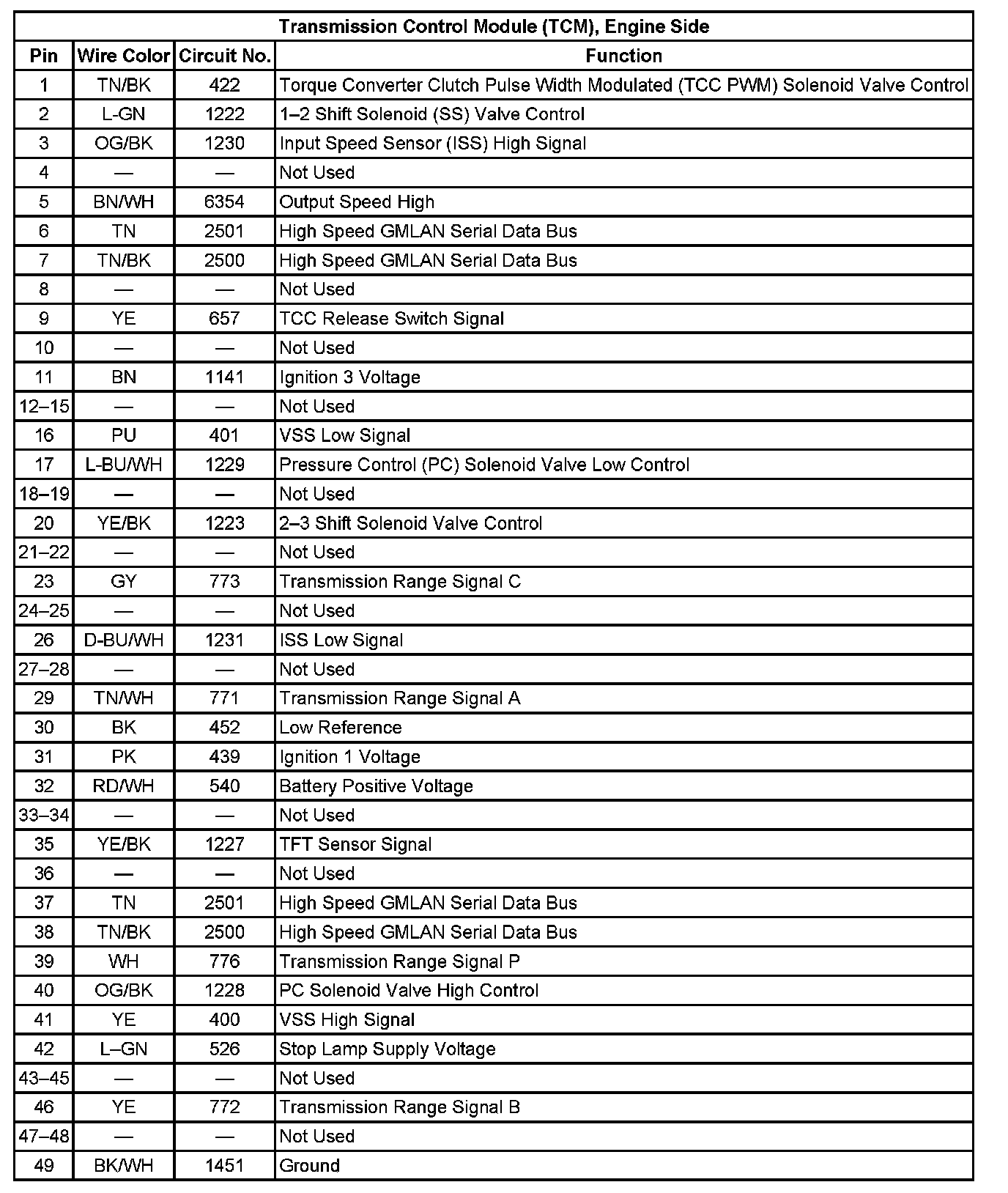

Transmission Control Module (TCM), Engine Side:
