Data Link Connector (DLC) Schematics

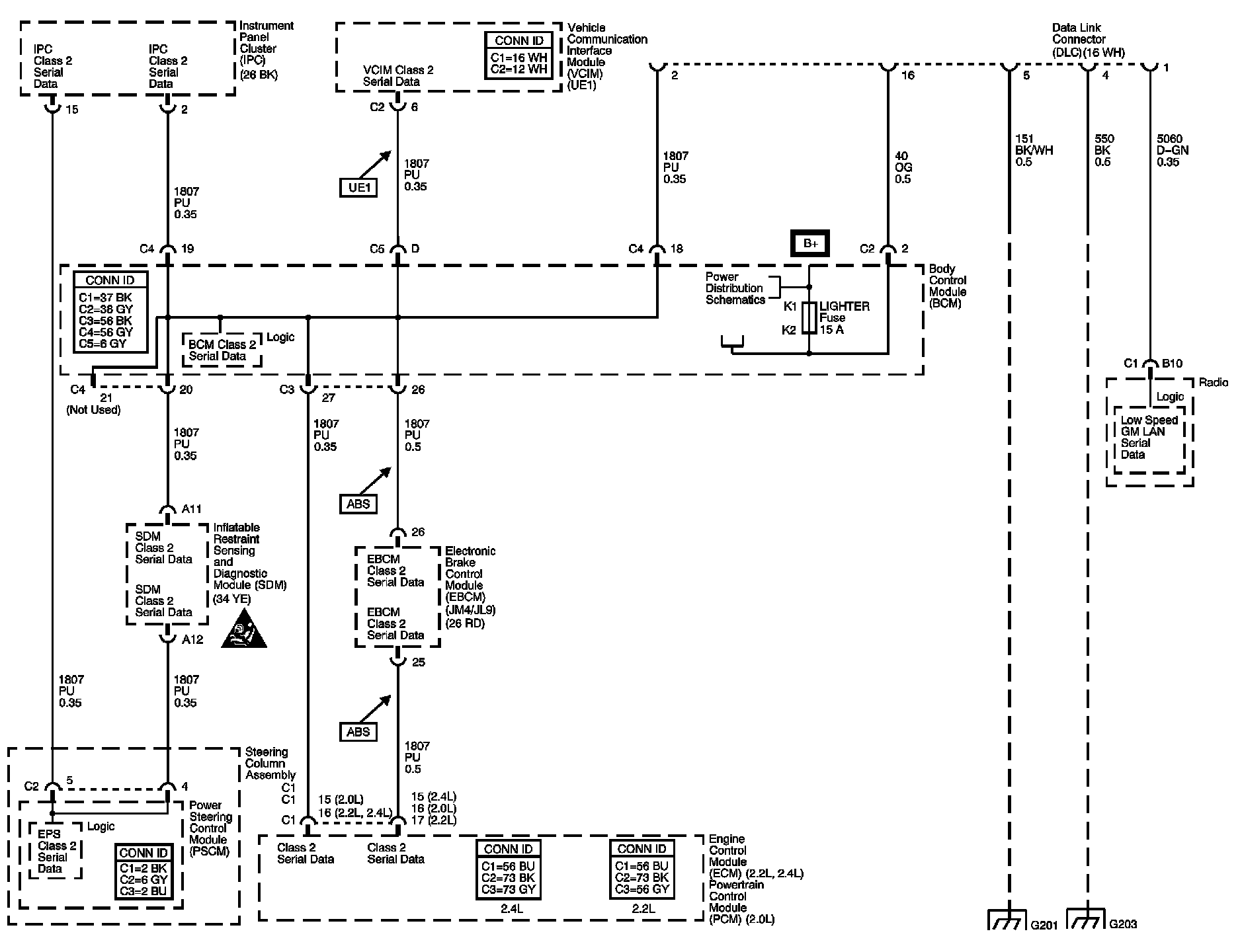

DLC Power, Ground, Class 2, and Low Speed GM LAN:

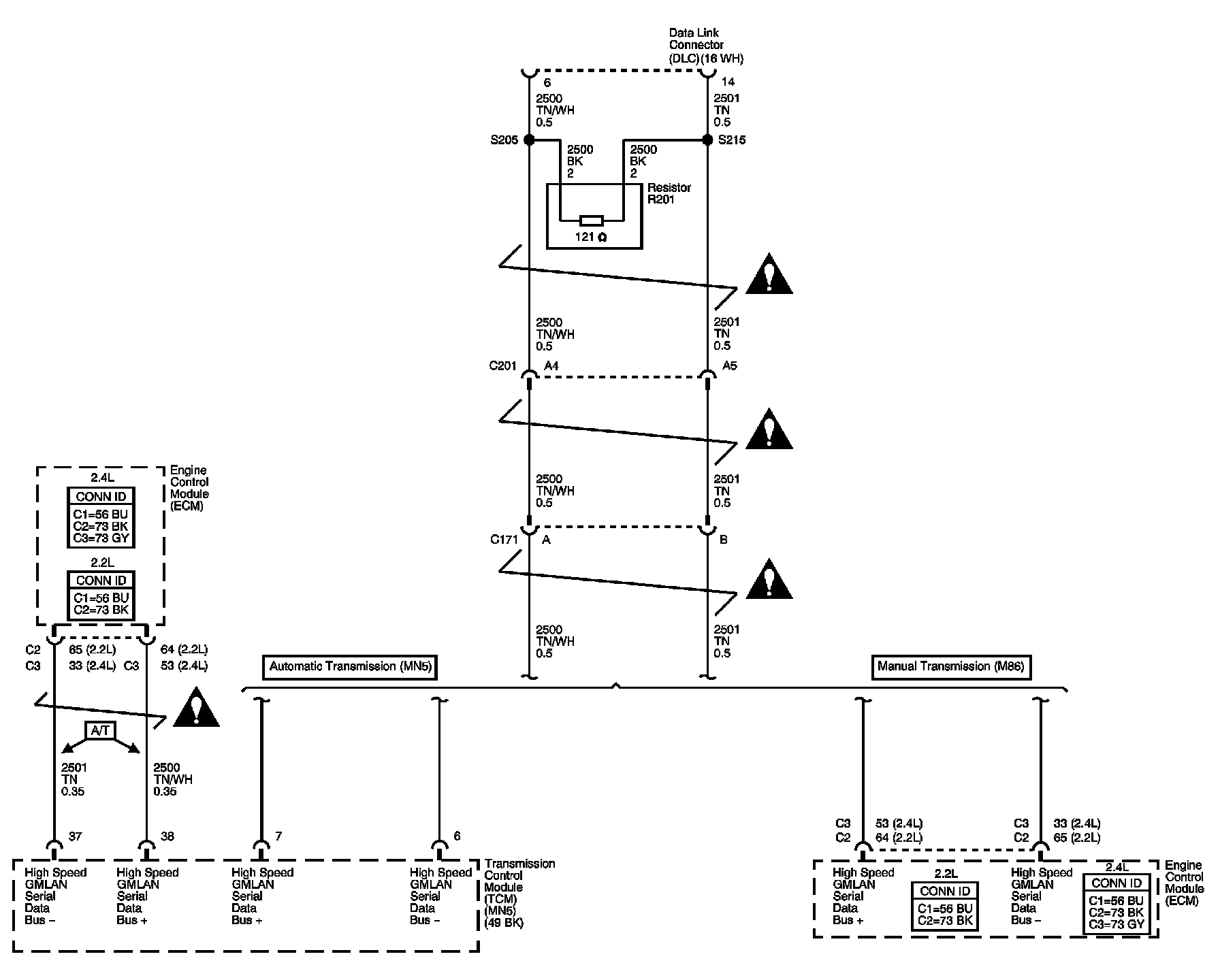

High Speed GM LAN - 2.2L, 2.4L:
