Home >> Saturn >> 2006 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Body Control Module (BCM)

Body Control Module (BCM)

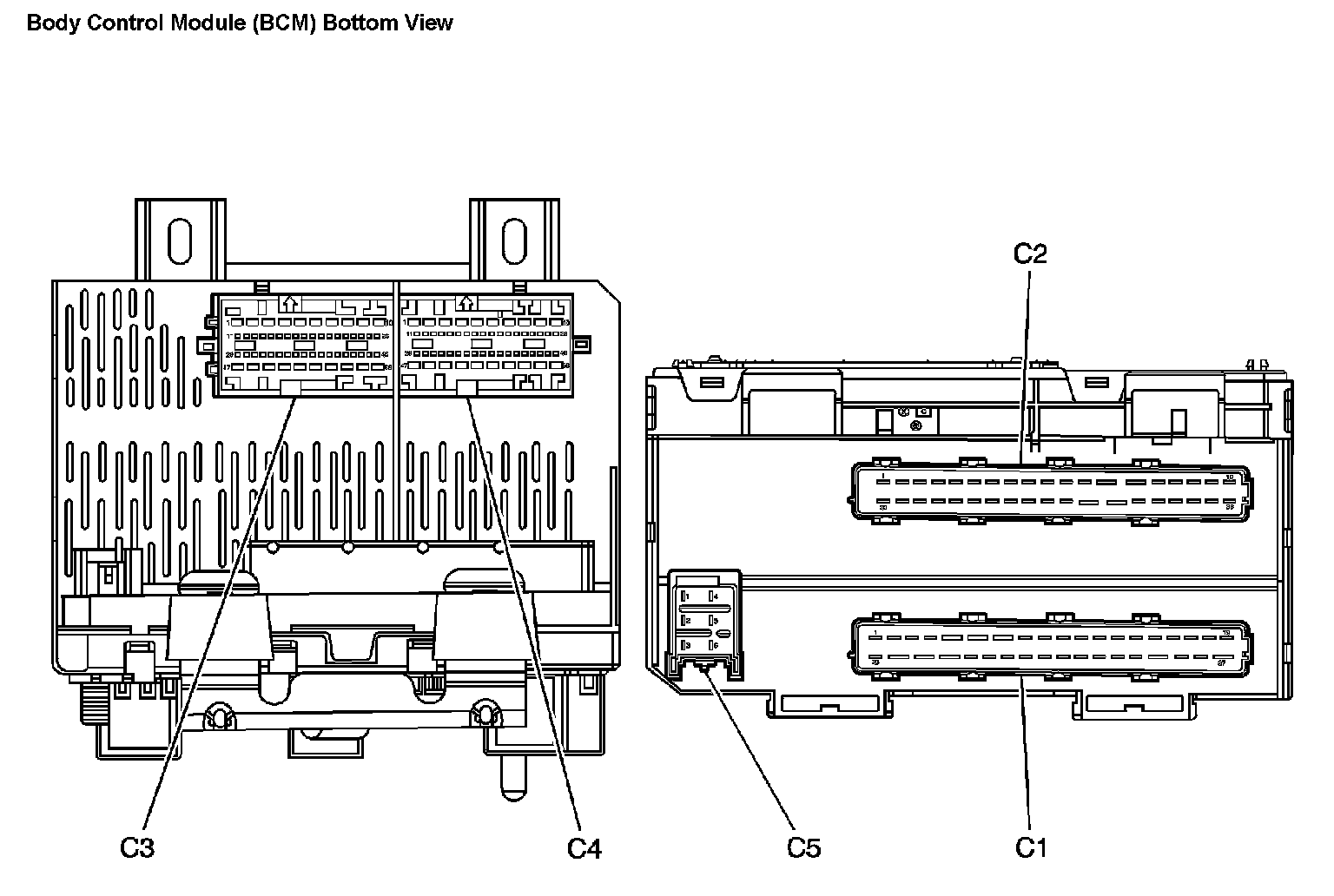

Location View:

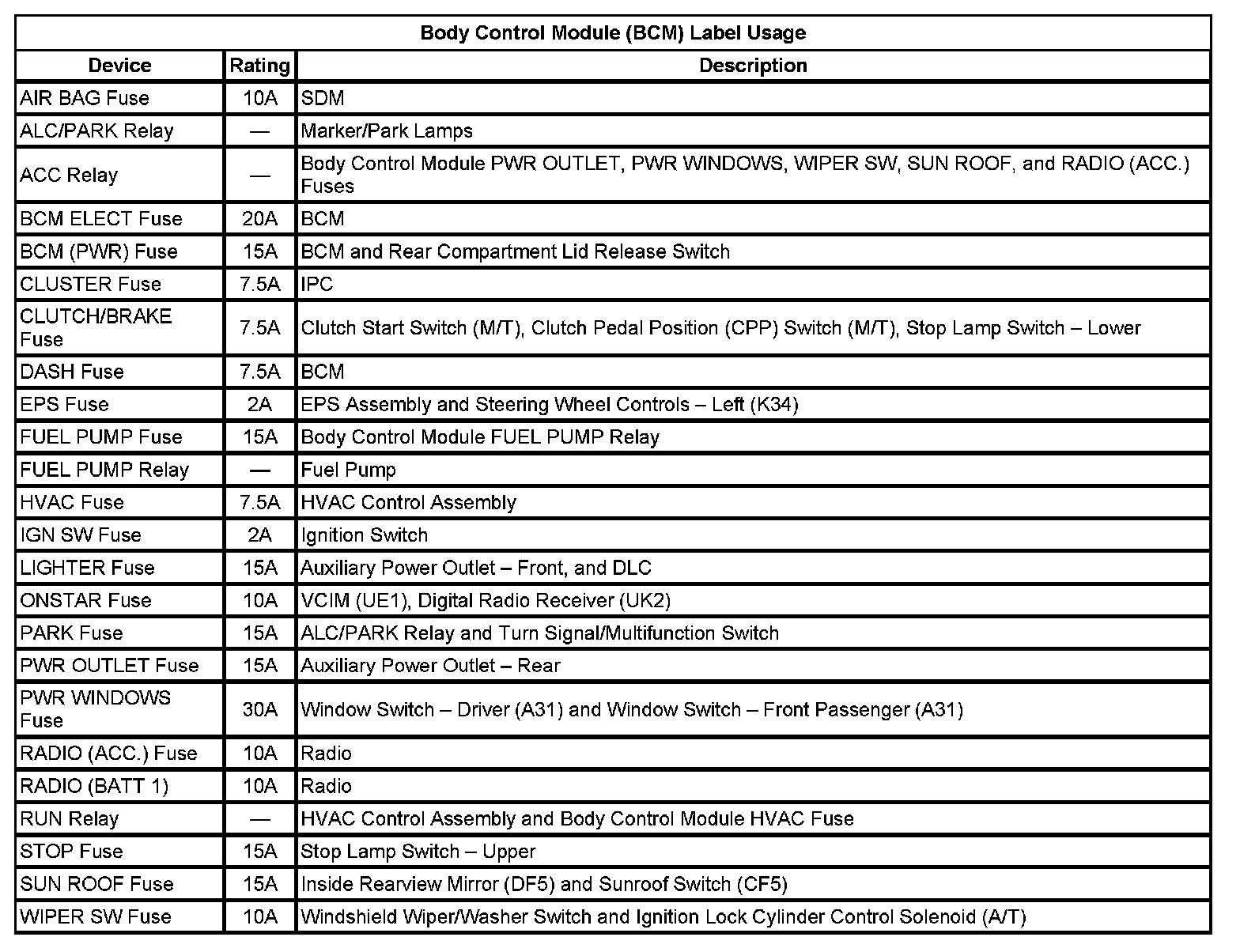

Application Table:




Location View:




Location View:
