Connector Views

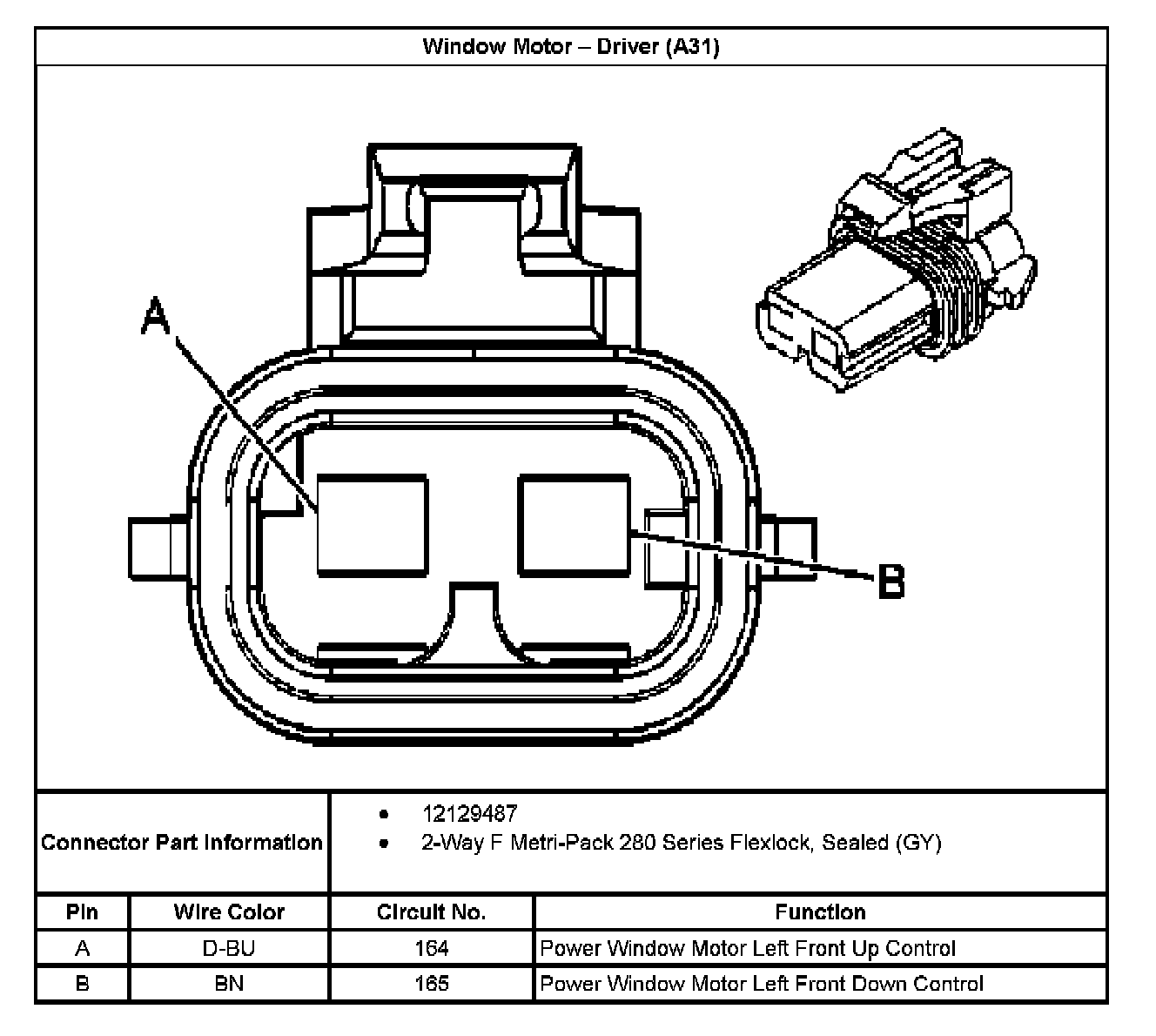

Window Motor - Driver (With RPO Code A31):



Window Motor - Front Passenger (With RPO Code A31):



Window Motor - LR (With RPO Code A31):



Window Motor - RR (With RPO Code A31):
