Control Module: Diagrams

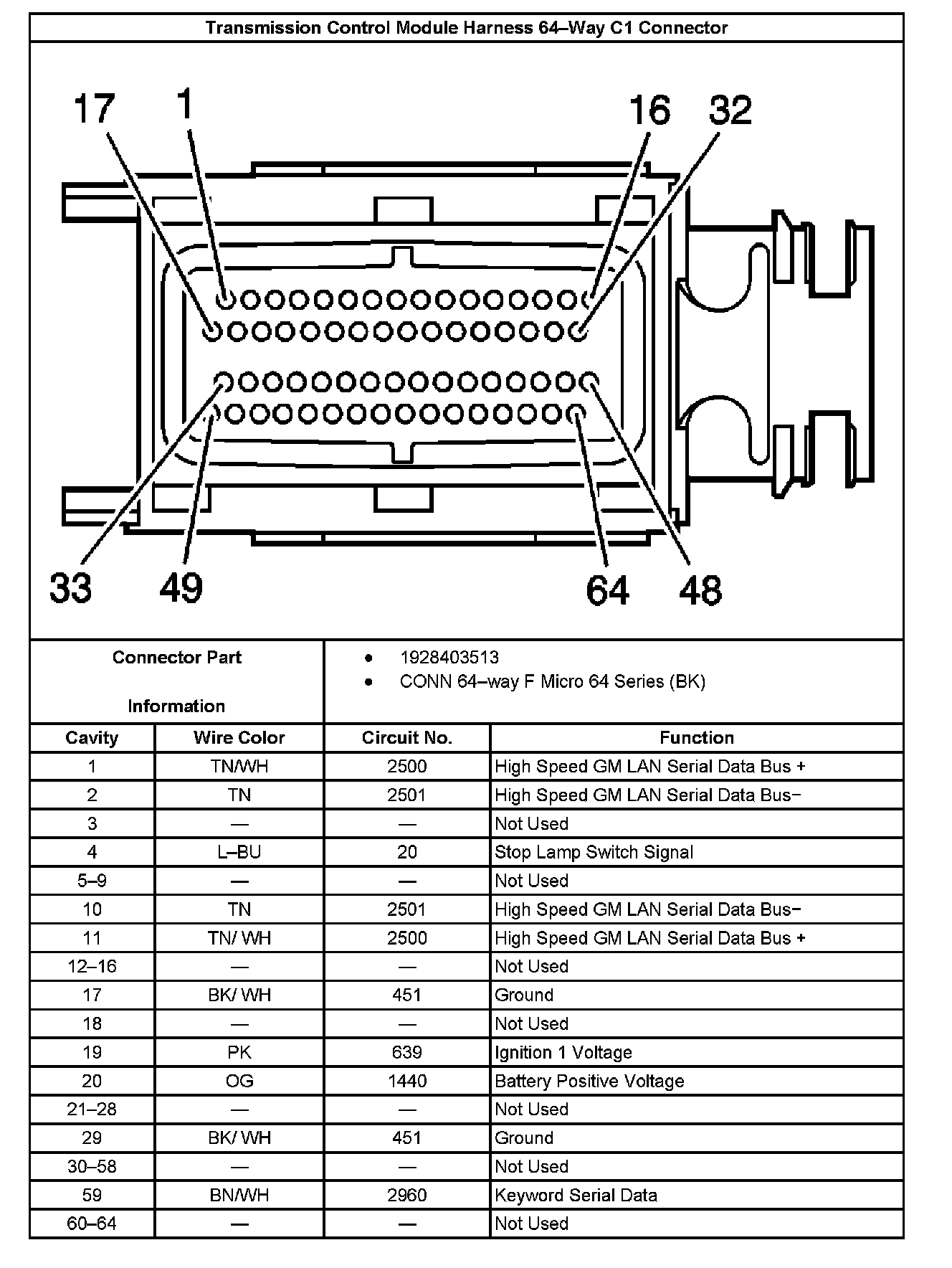

Transmission Control Module Harness 64-Way C1 Connector:

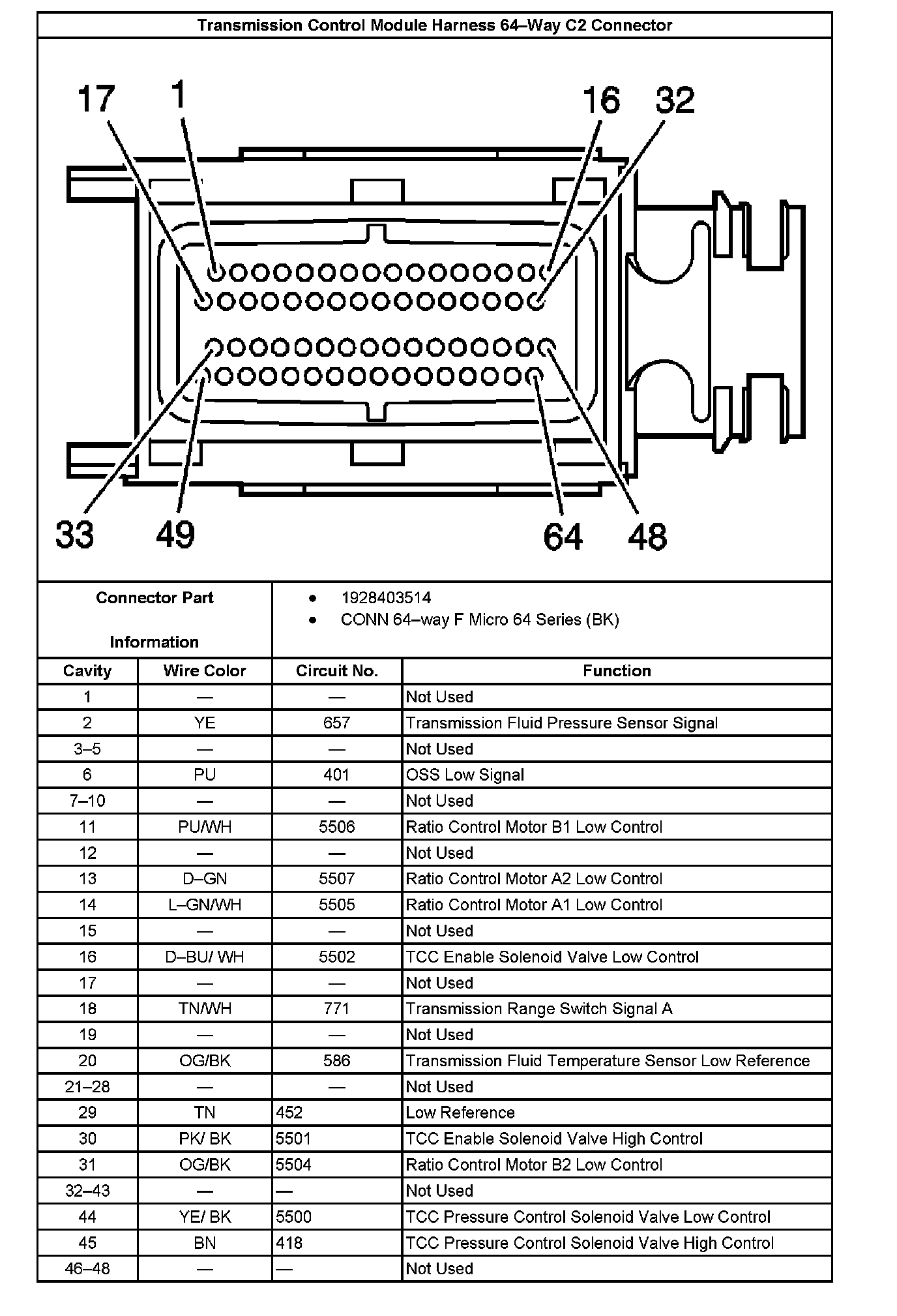

Transmission Control Module Harness 64-Way C2 Connector 1:

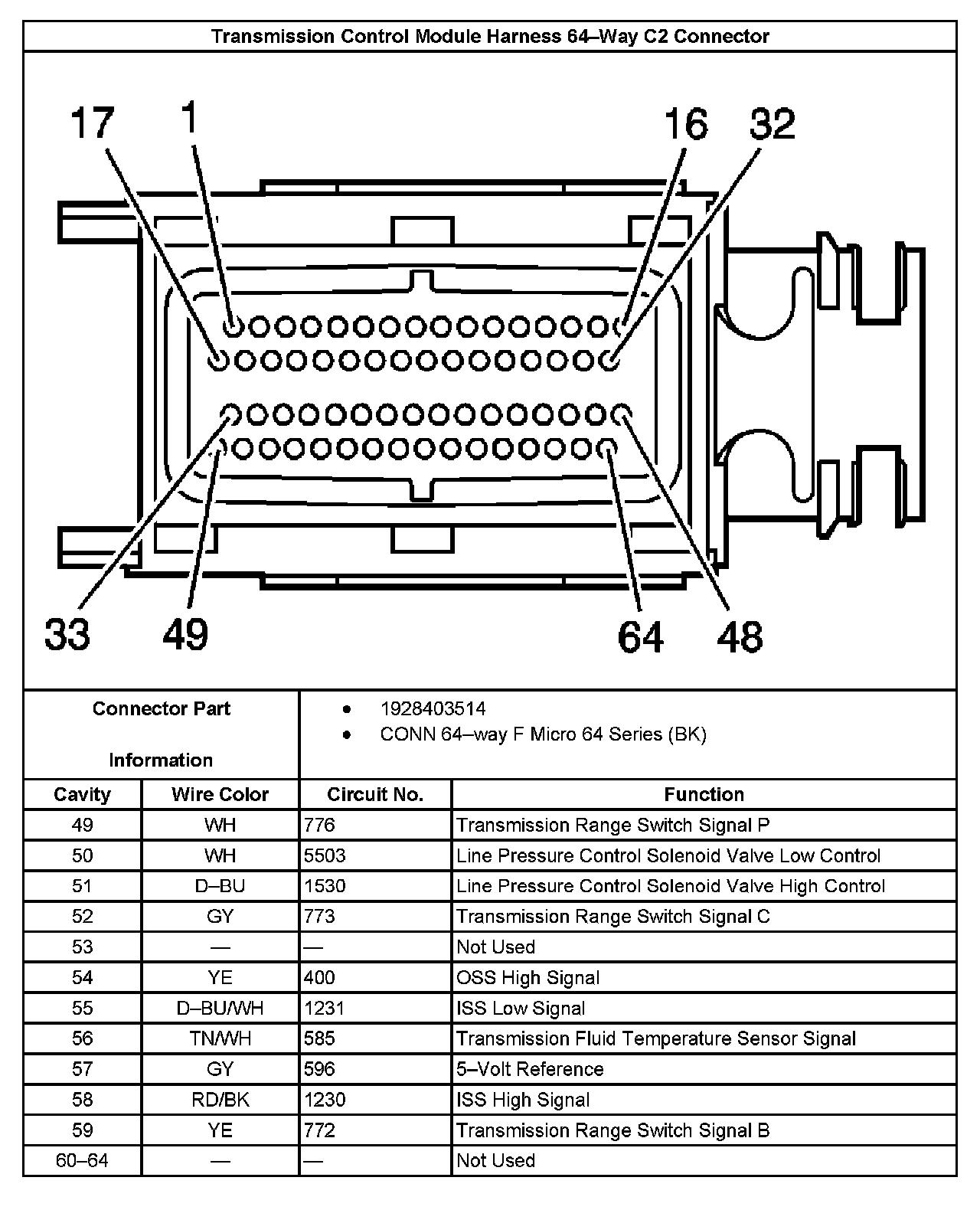

Transmission Control Module Harness 64-Way C2 Connector 2:
