Control Module: Diagrams

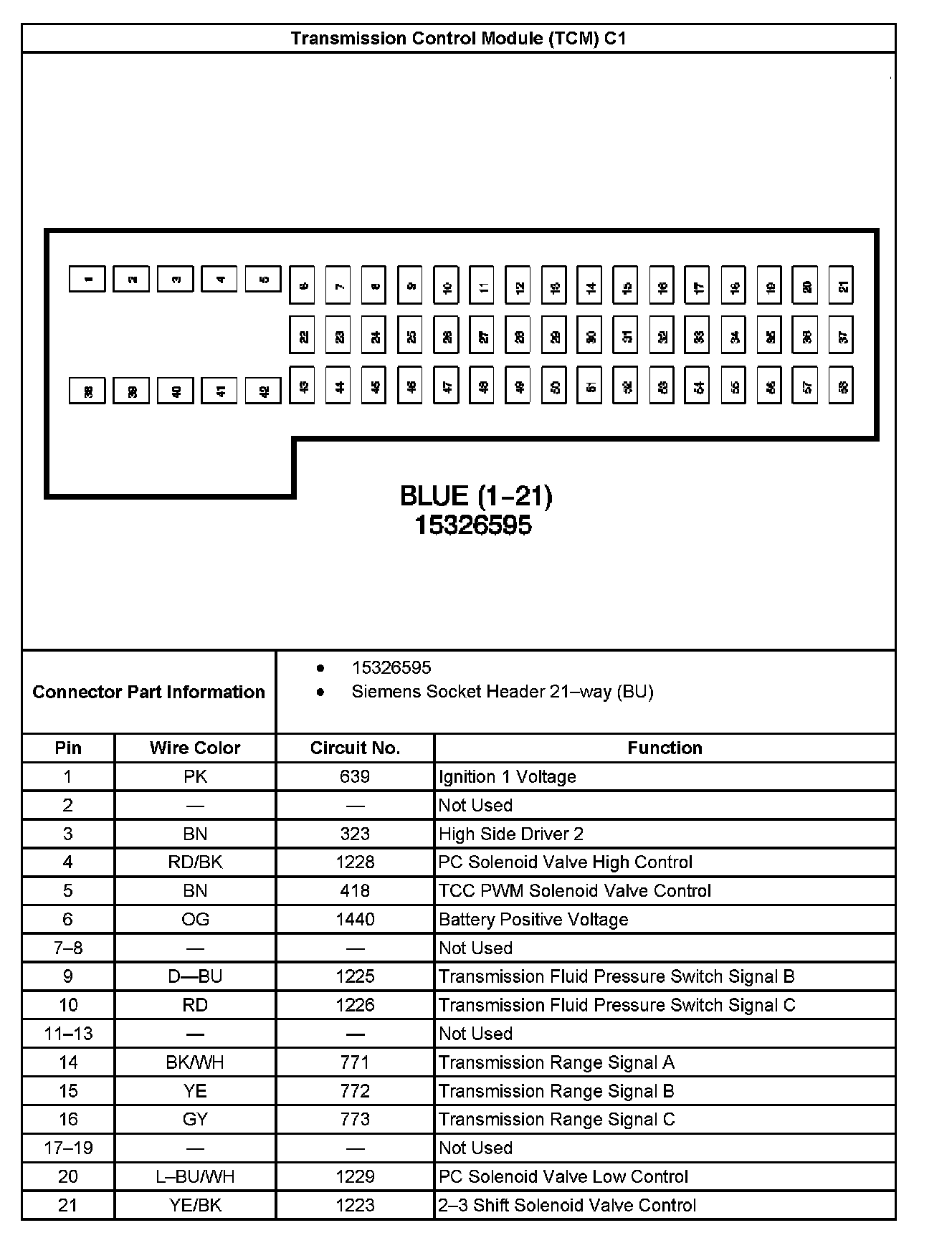

Transmission Control Module (TCM) C1:

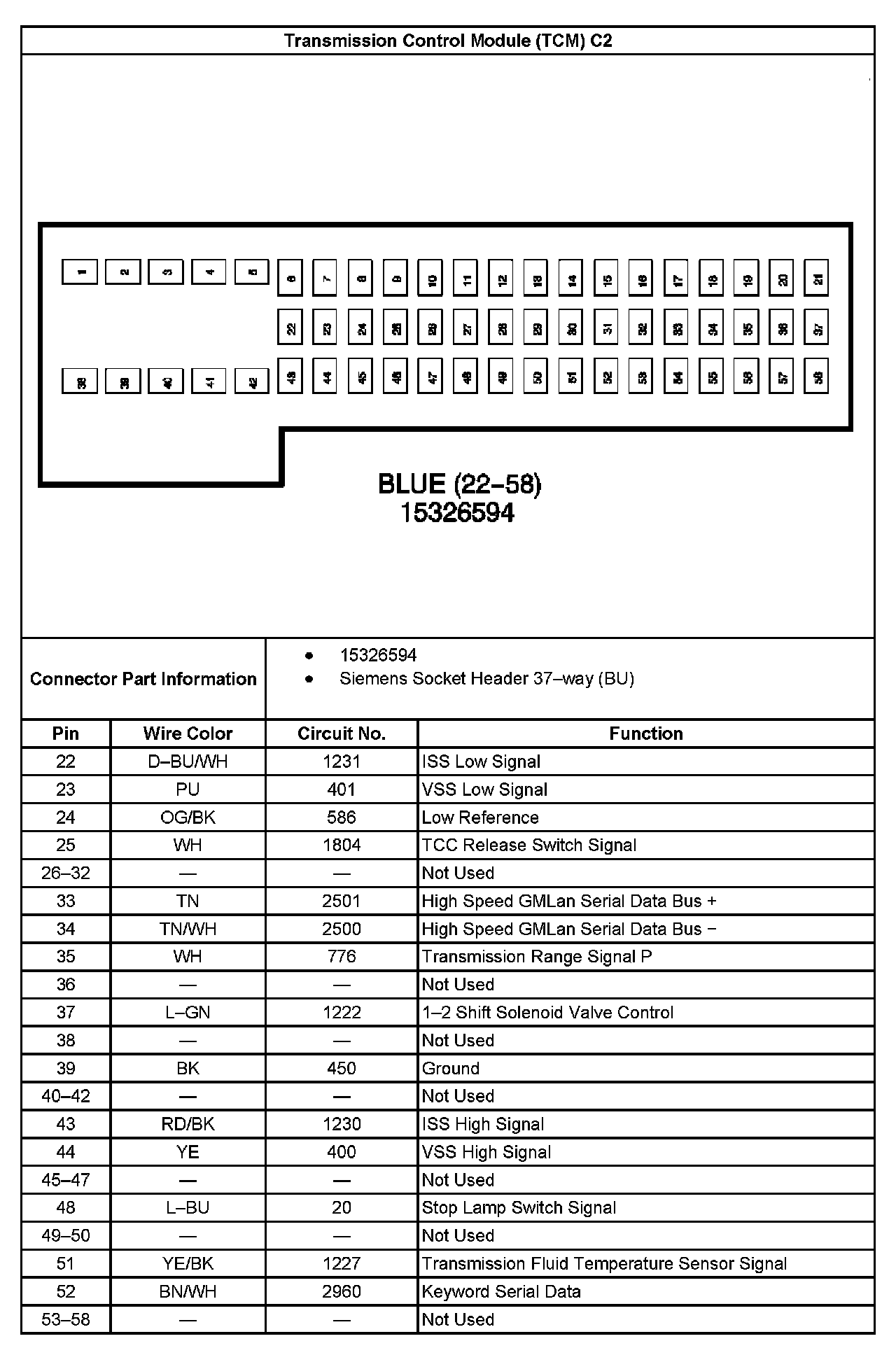

Transmission Control Module (TCM) C2:
