Home >> Saturn >> 2005 >> VUE AWD L4-2.2L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> 4T40-E/4T45-E

4T40-E/4T45-E

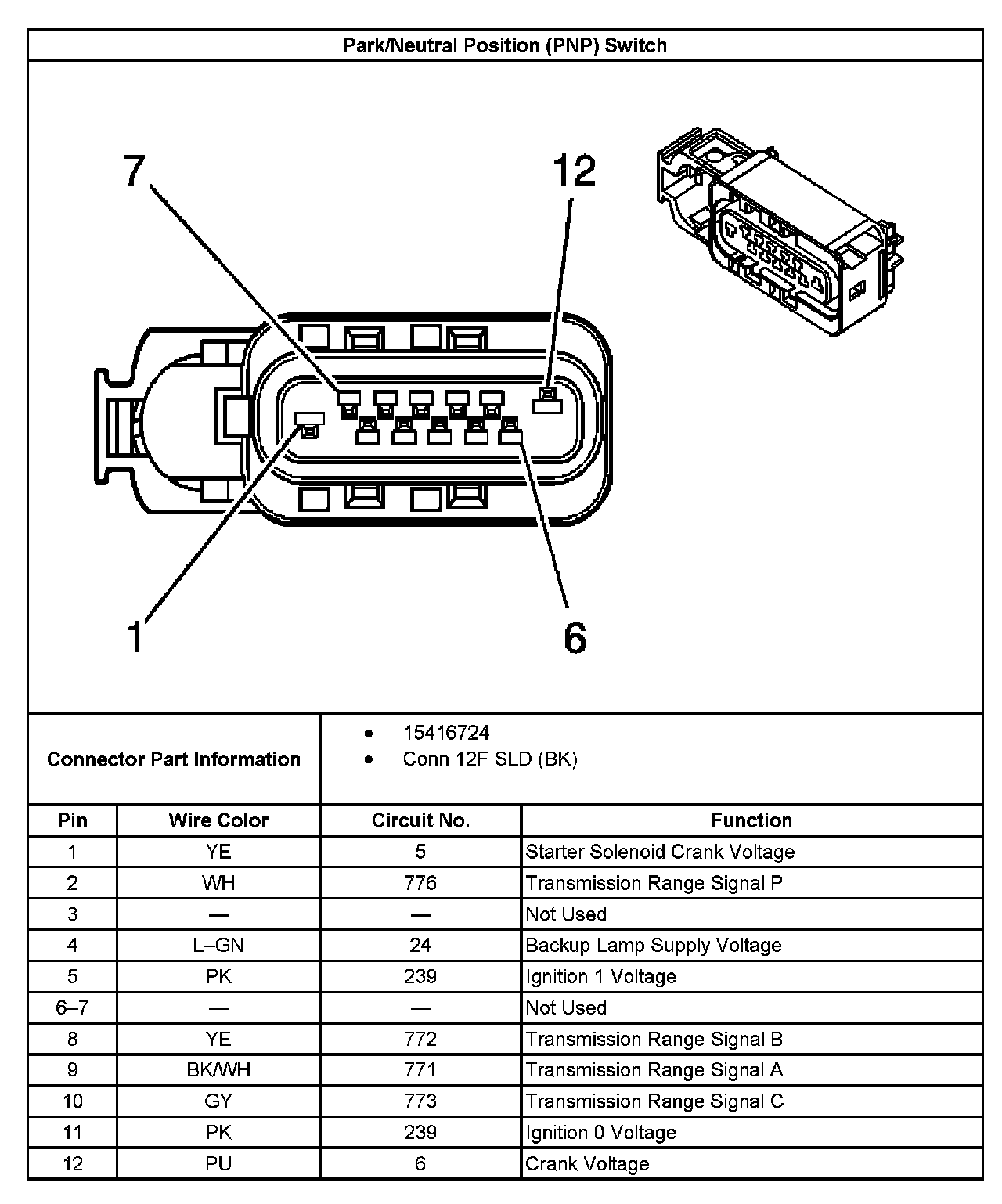

Park/Neutral Position (PNP):
