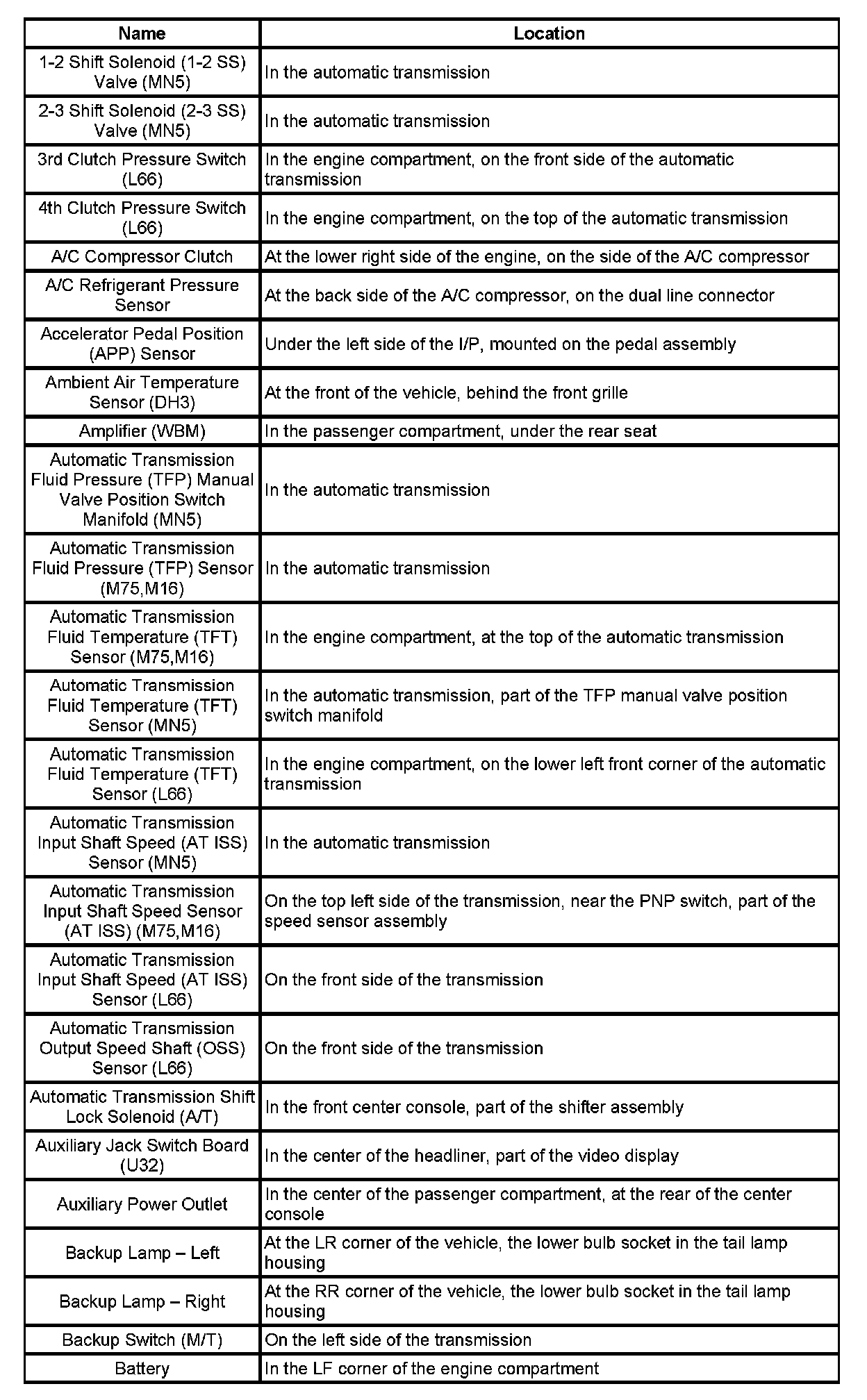

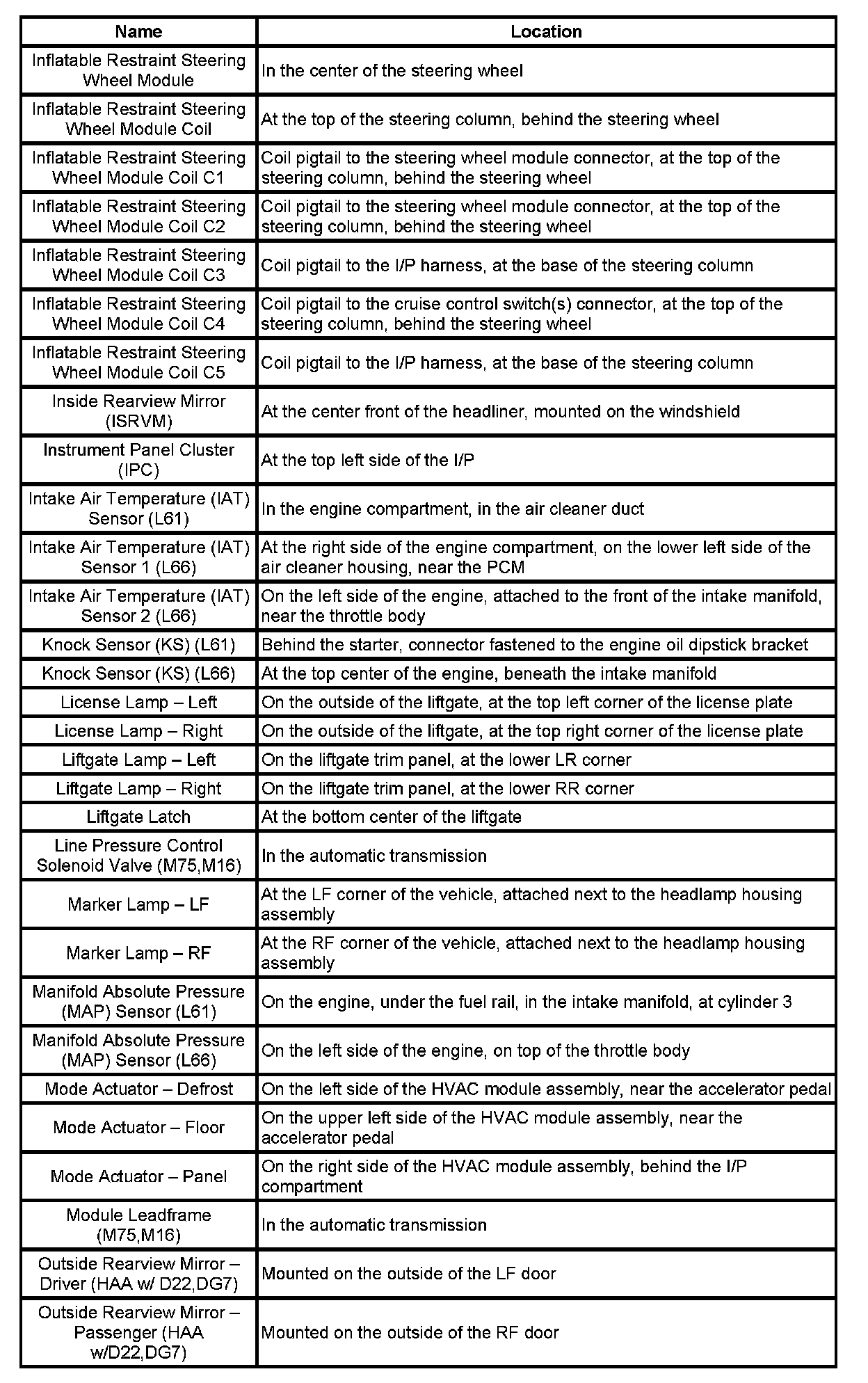

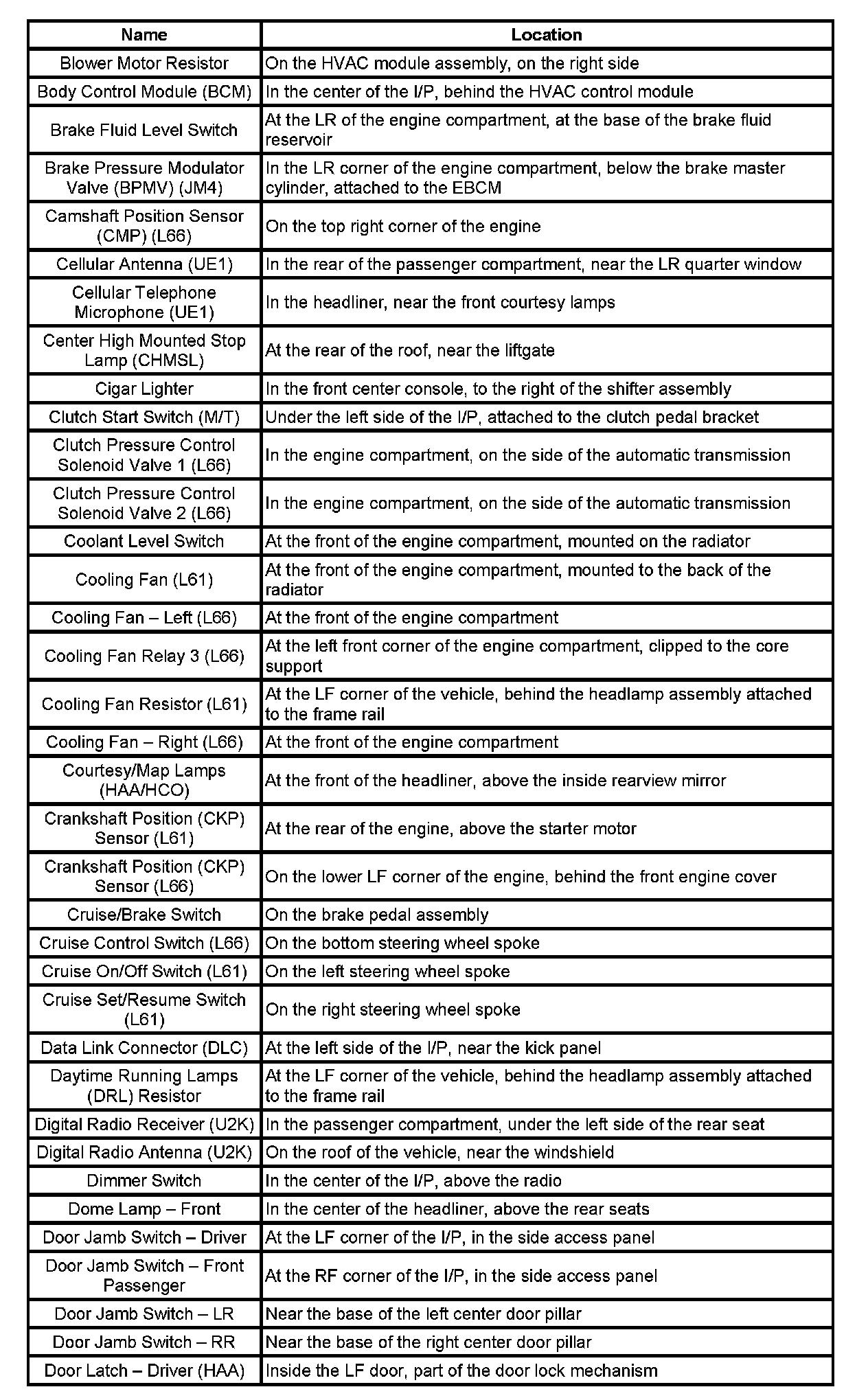

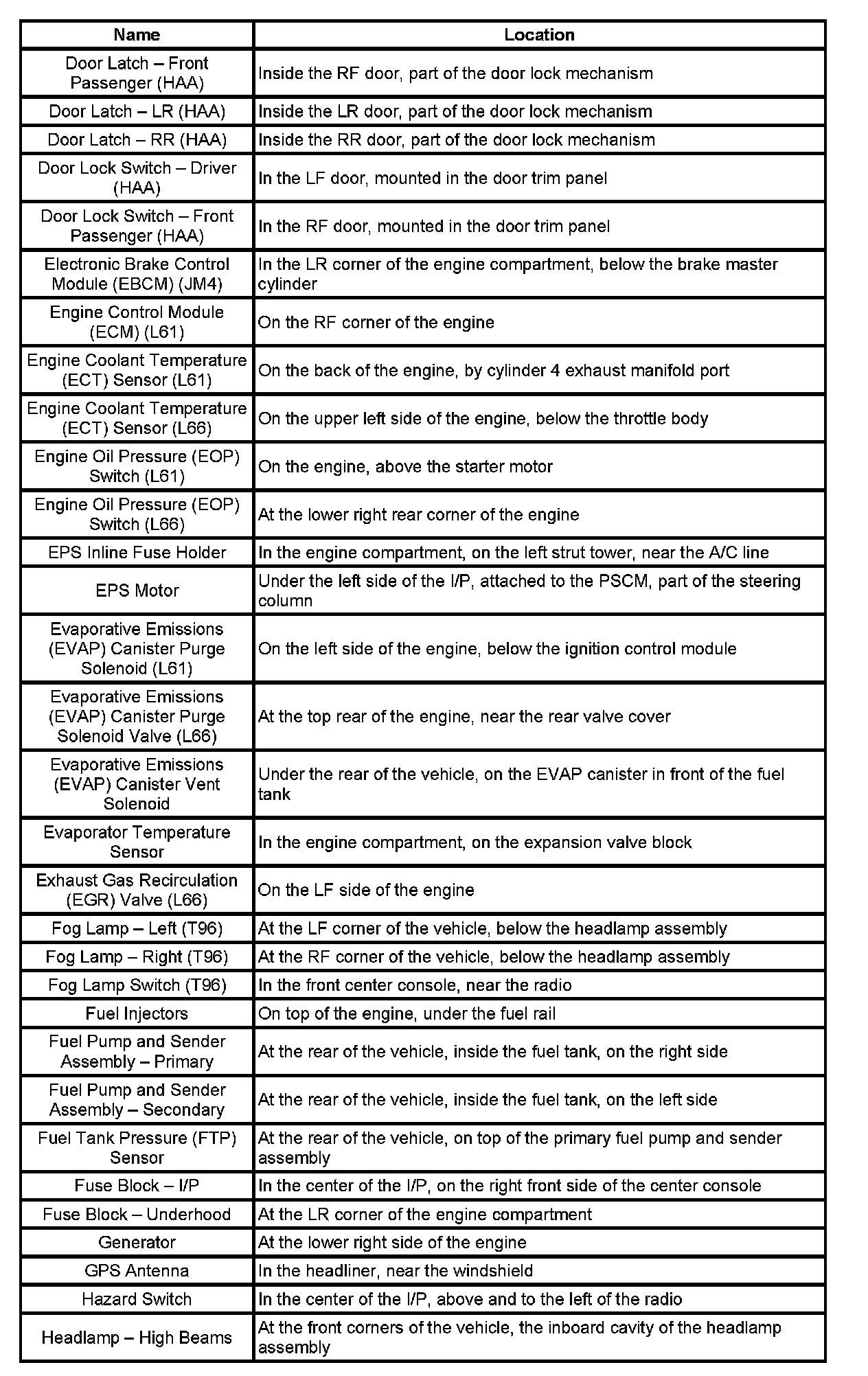

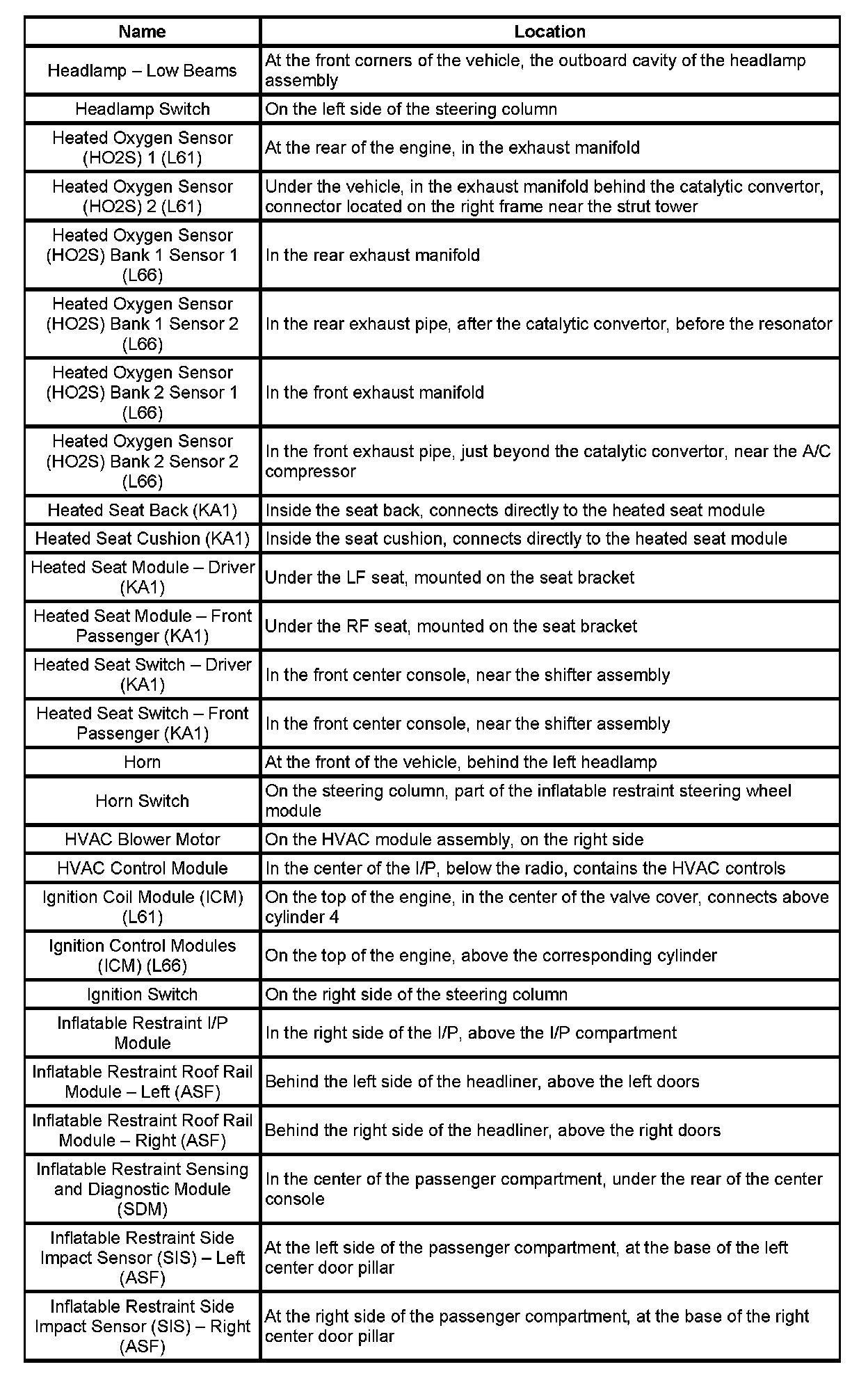

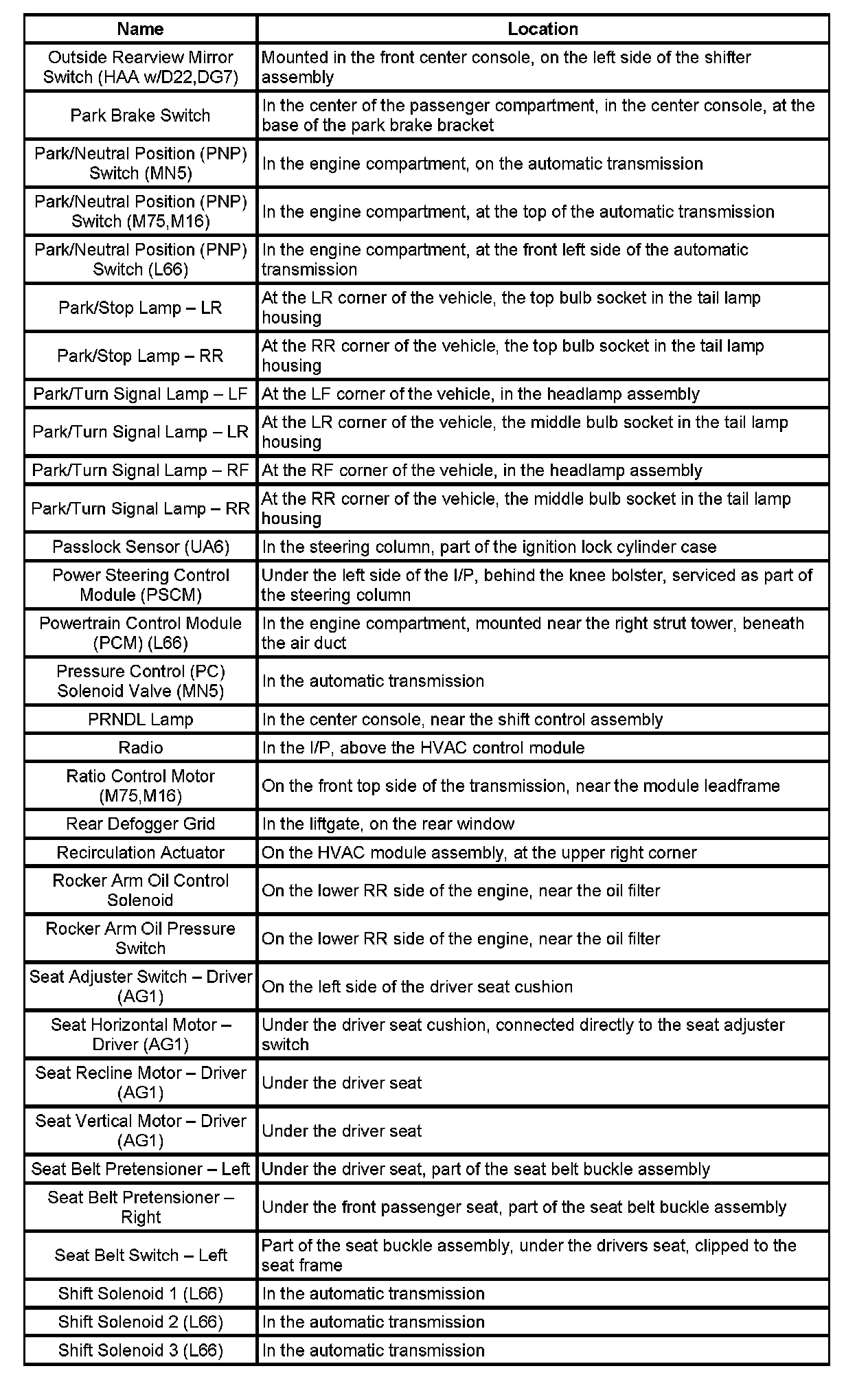

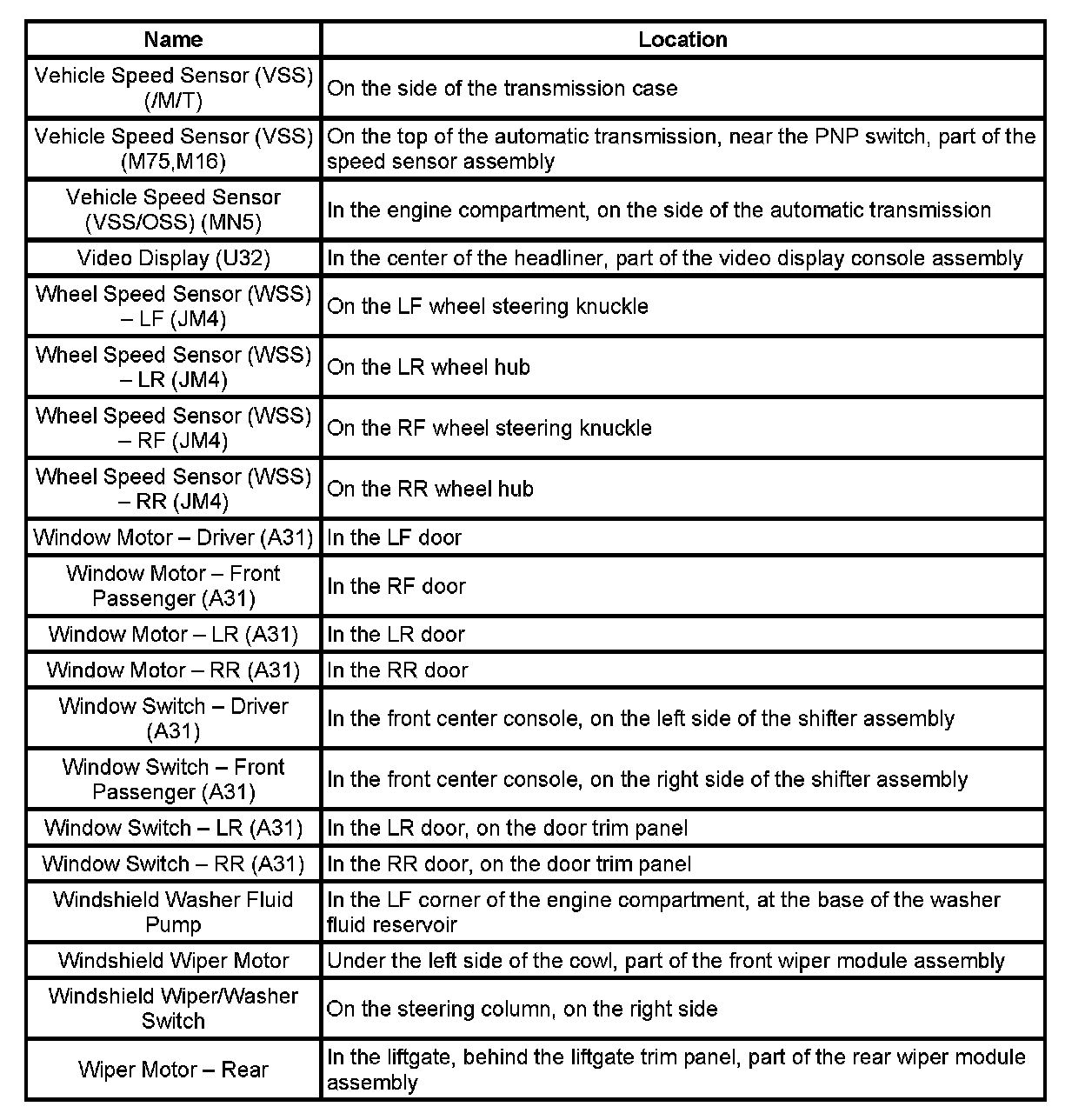

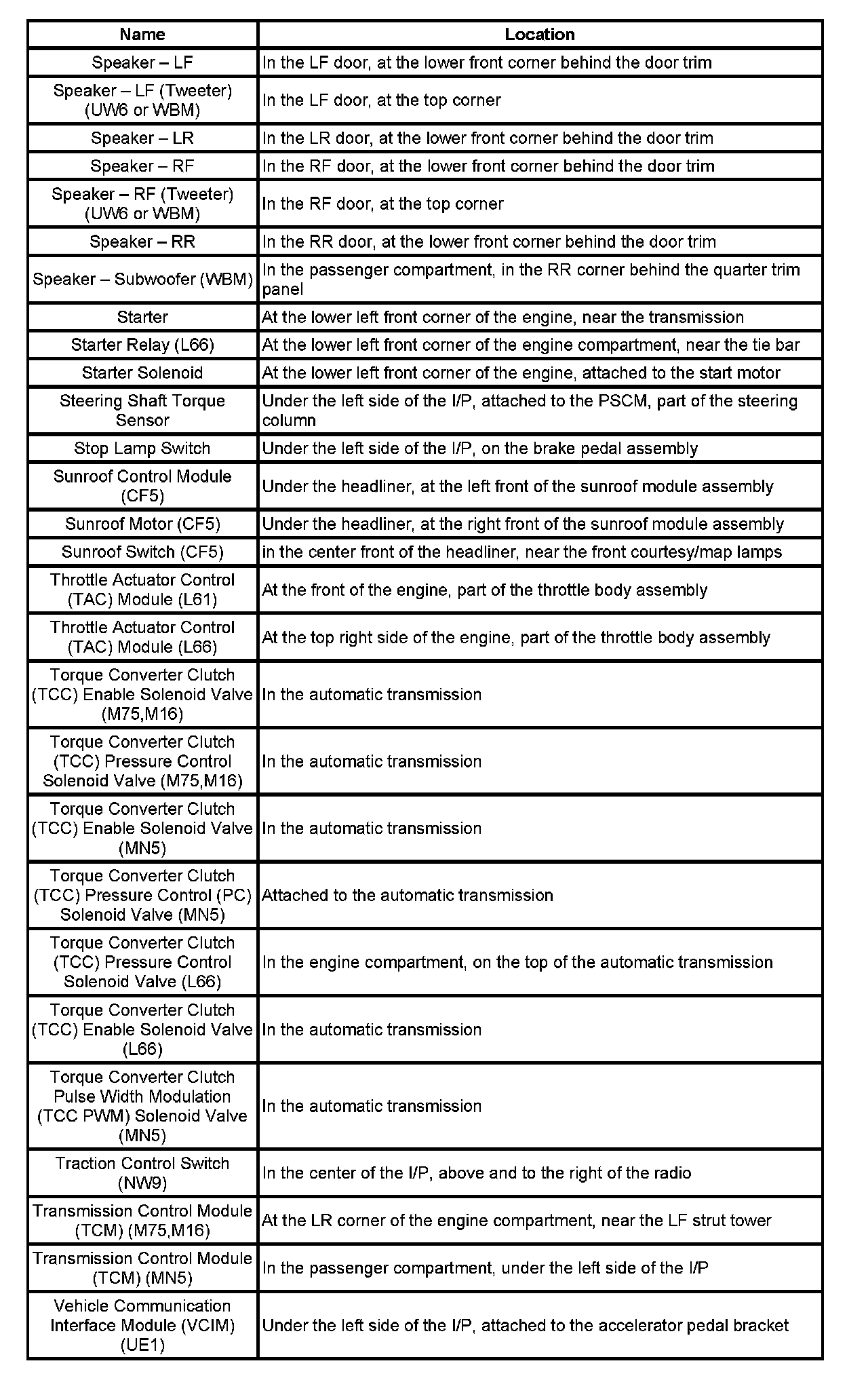

Component Locations

1-2 - Ba:

Bl - Do:

Do - He:

He - In:

In - Ou:

Ou - Sh:

Sp - Ve:

Ve - Wi:
