Power Roof Systems Component Views

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

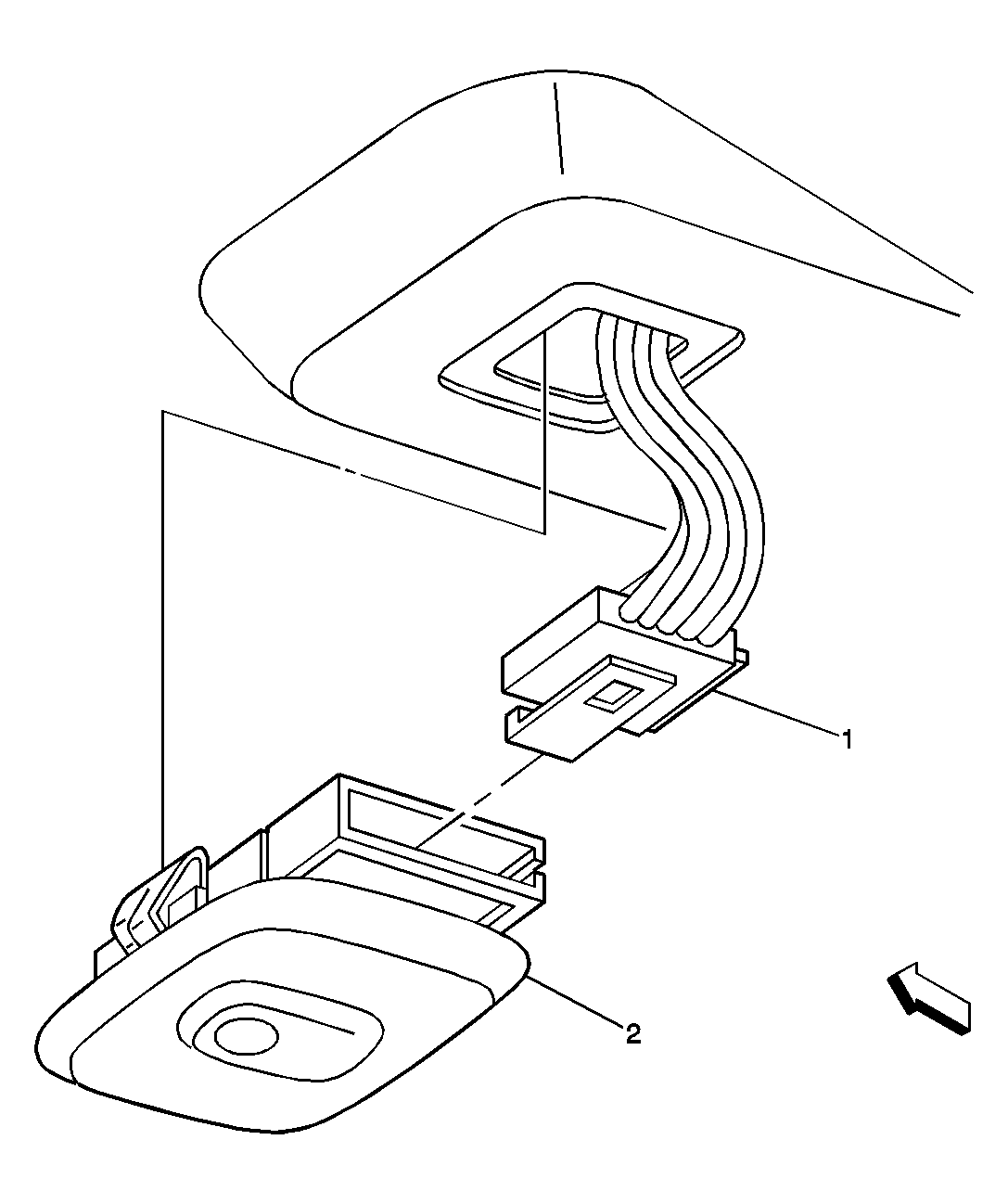

Fig 1: Sunroof Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch Connector
2	Sunroof Switch

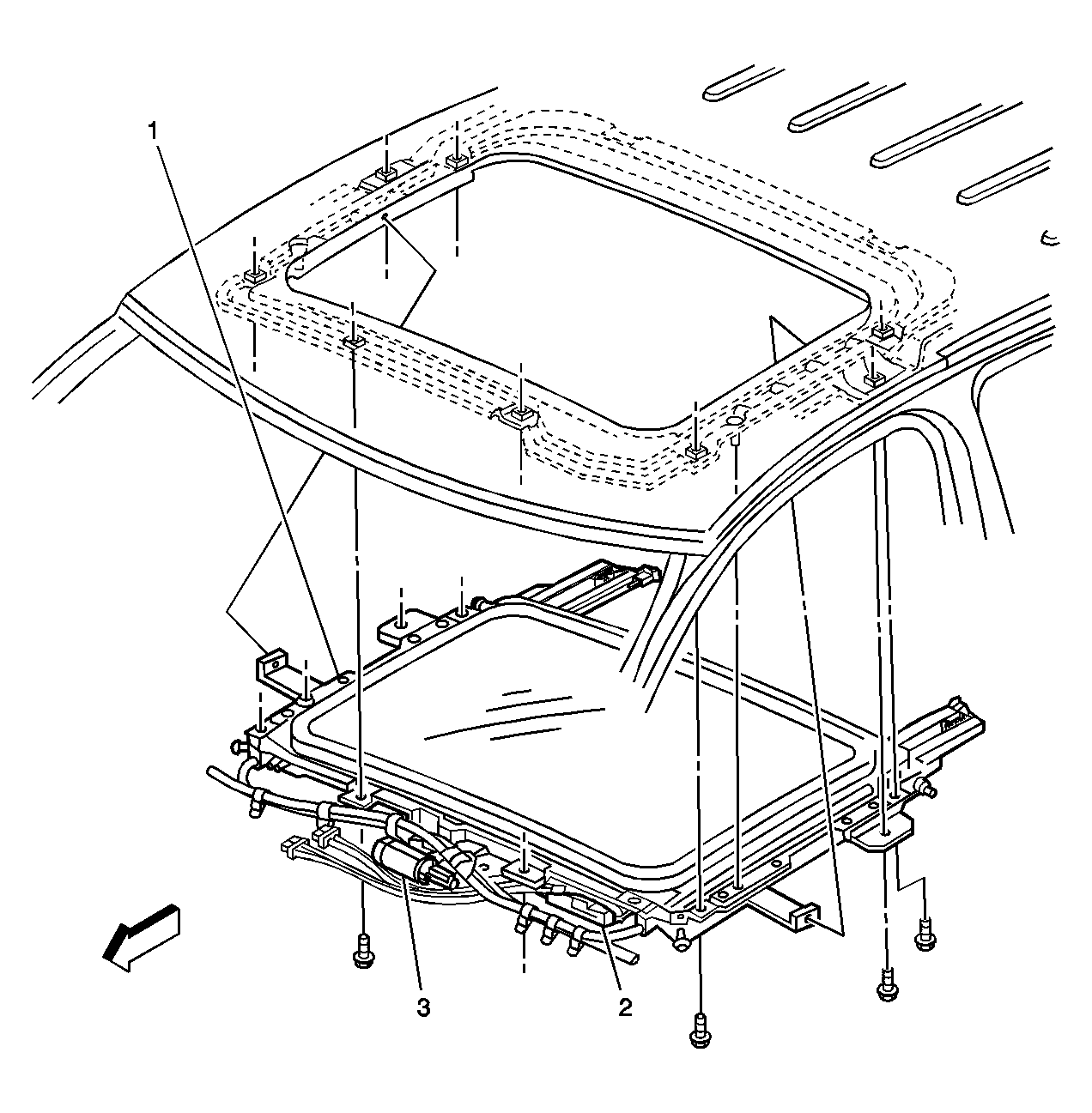

Fig 2: Sunroof Module and Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Assembly
2	Sunroof Module
3	Sunroof Motor
