Home >> Saturn >> 2005 >> RELAY AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Diagrams

Ignition Relay: Diagrams

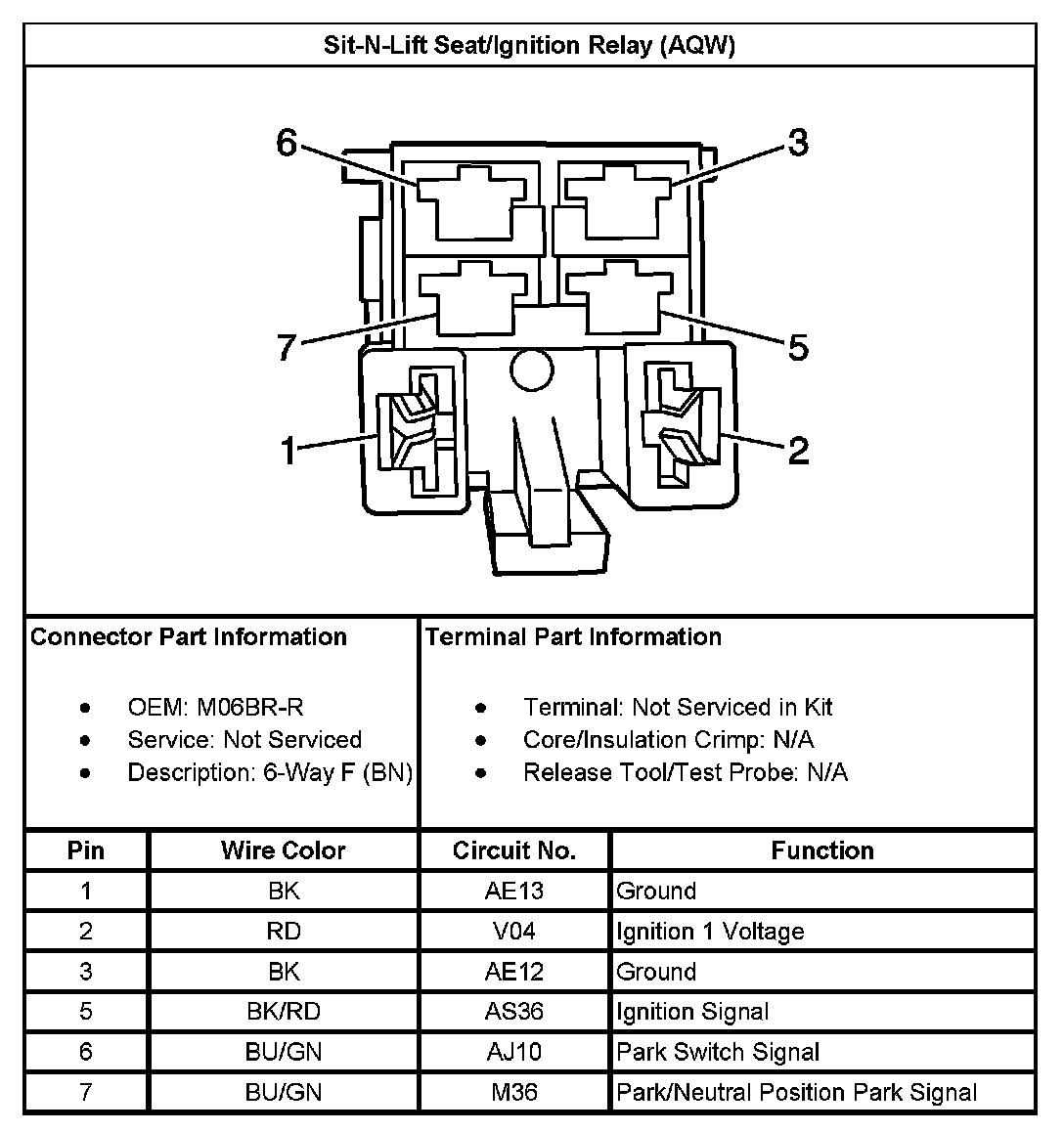

Sit-N-Lift Seat/Ignition Relay (AQW):
