Home >> Saturn >> 2005 >> RELAY AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Diagrams

Manifold Pressure/Vacuum Sensor: Diagrams

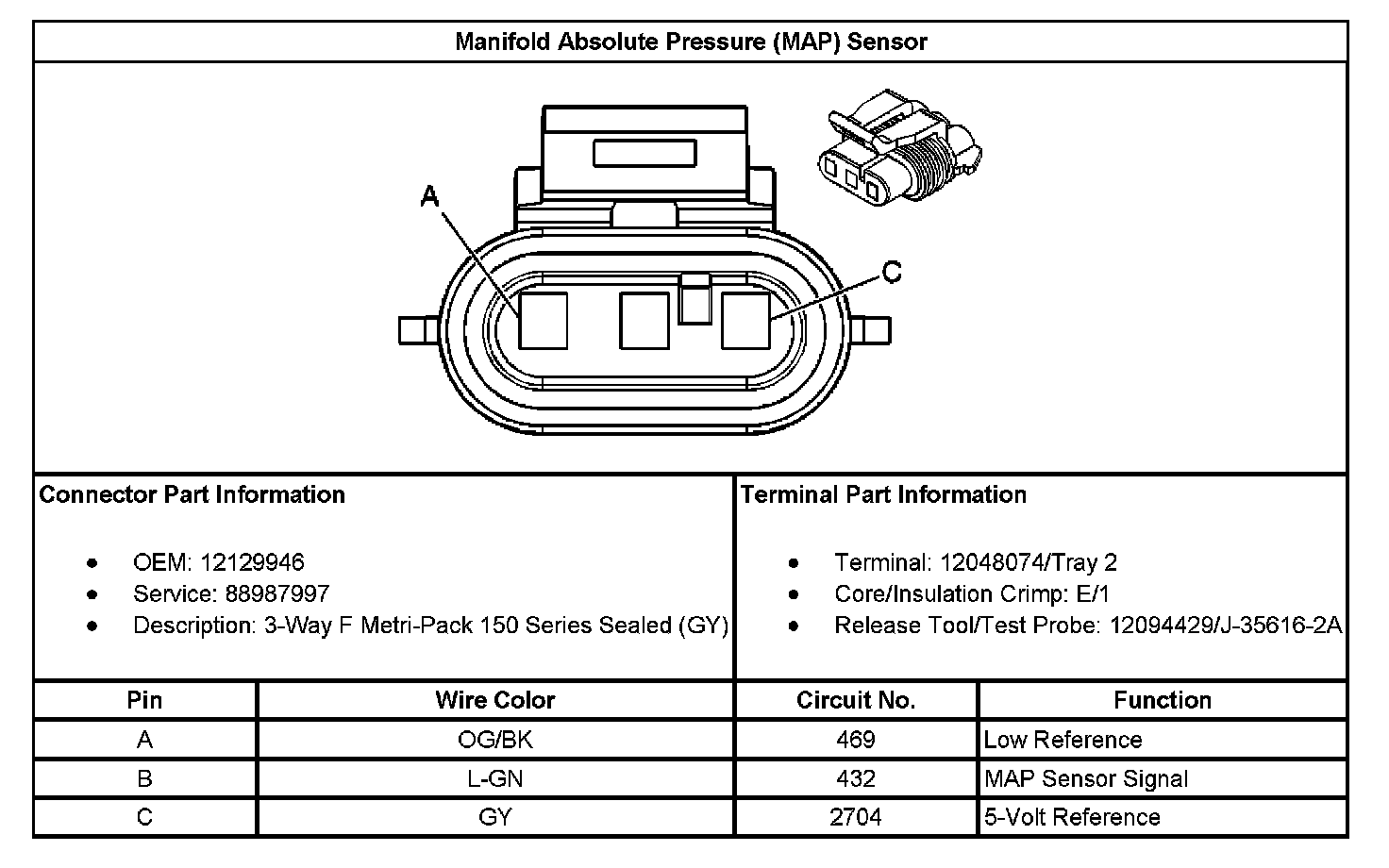

Manifold Absolute Pressure (MAP) Sensor:
