Home >> Saturn >> 2005 >> RELAY AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Diagrams

Power Seat Control Module: Diagrams

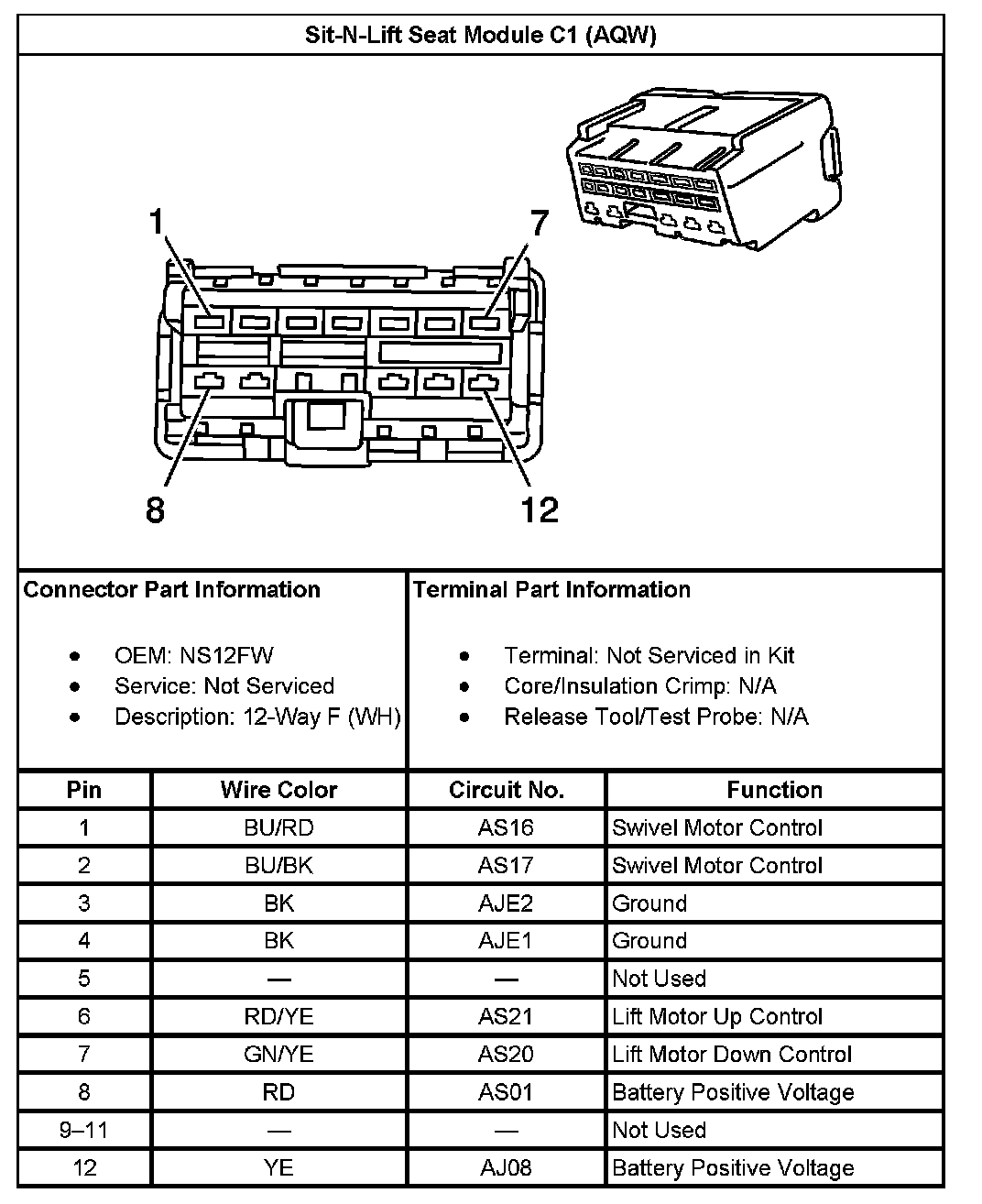

Sit-N-Lift Seat Module C1 (AQW):

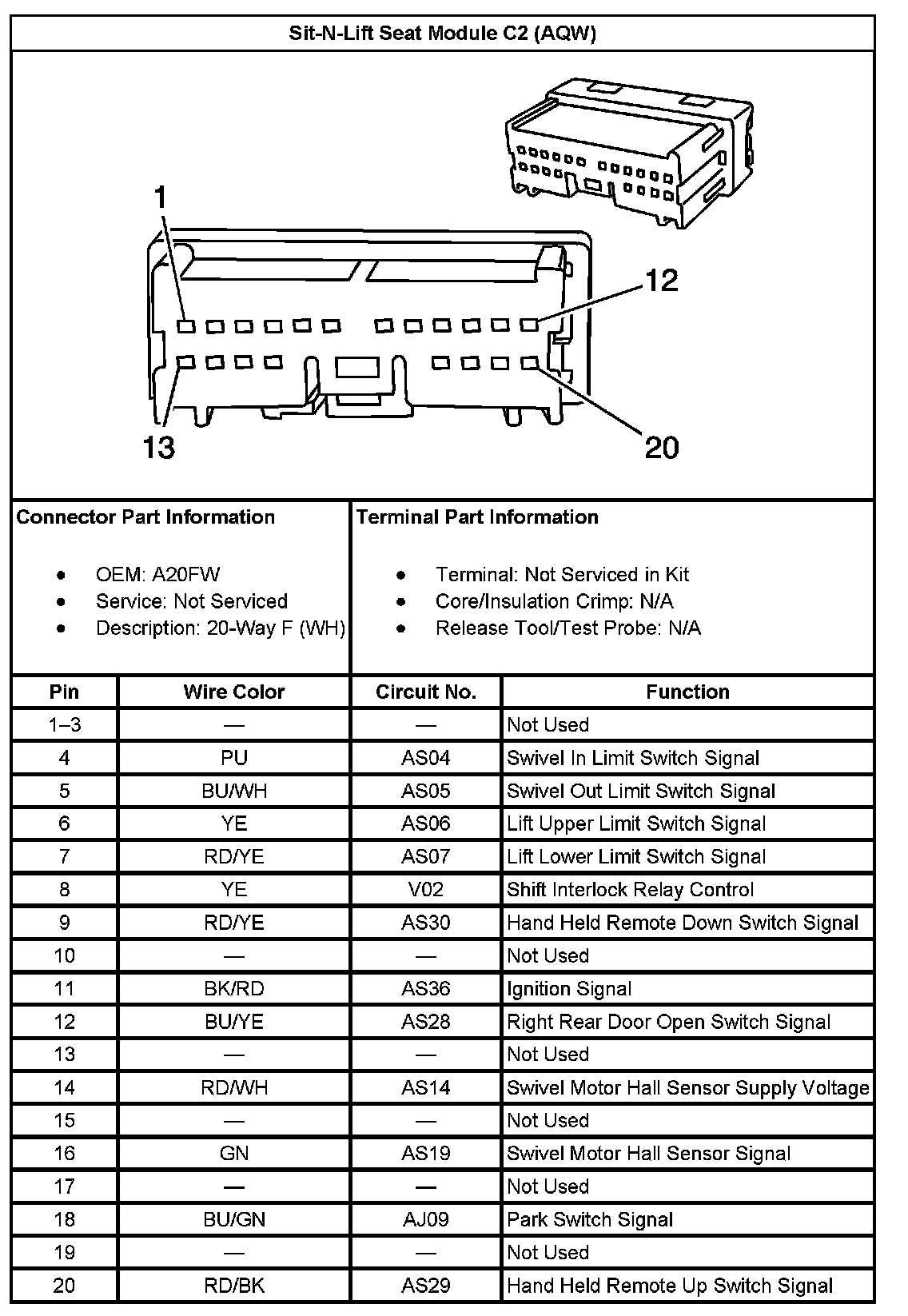

Sit-N-Lift Seat Module C2 (AQW):
