Home >> Saturn >> 2005 >> RELAY AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Diagrams

Memory Positioning Module: Diagrams

Memory Seat Module - Driver C1 (AG0):

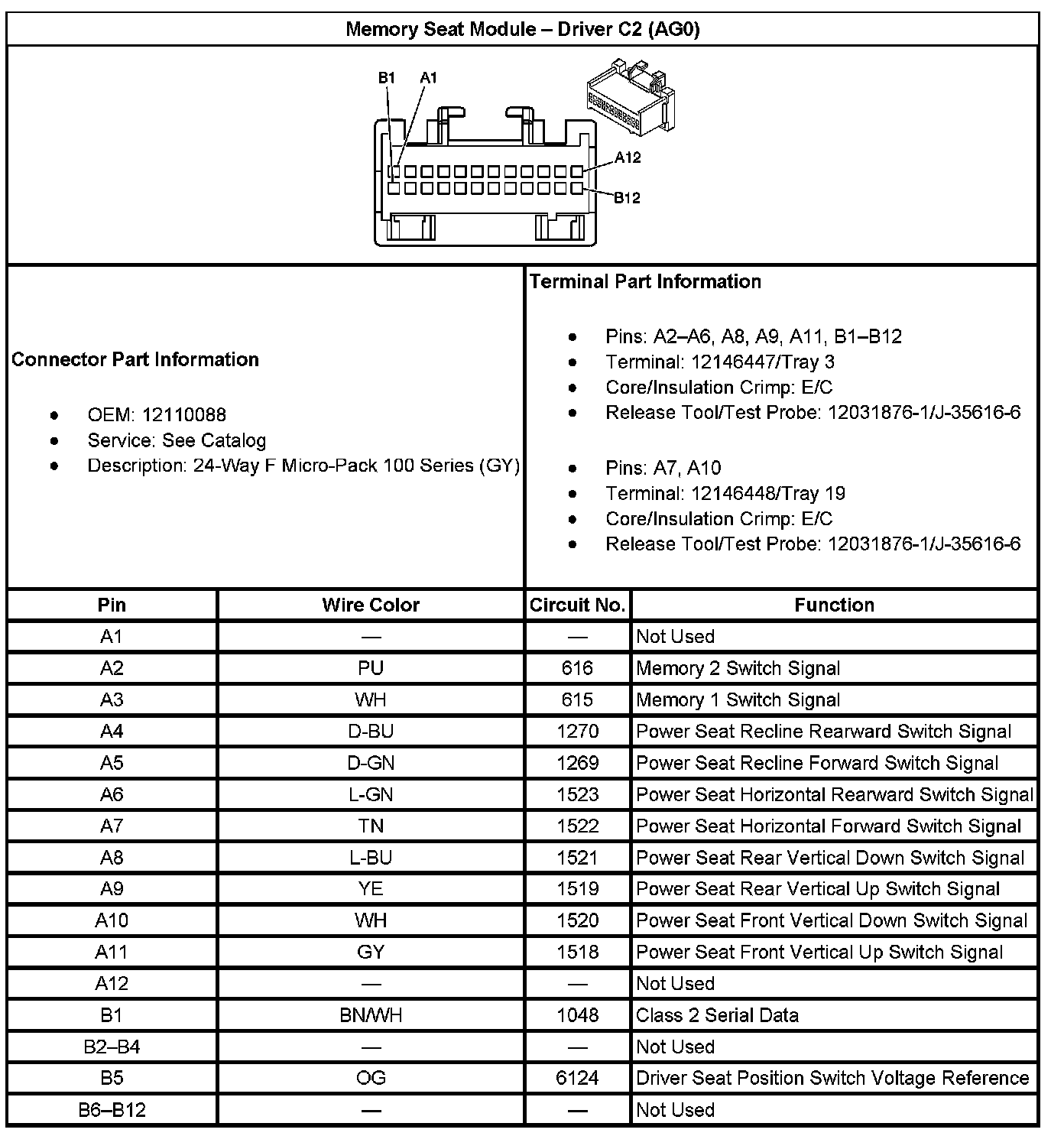

Memory Seat Module - Driver C2 (AG0):

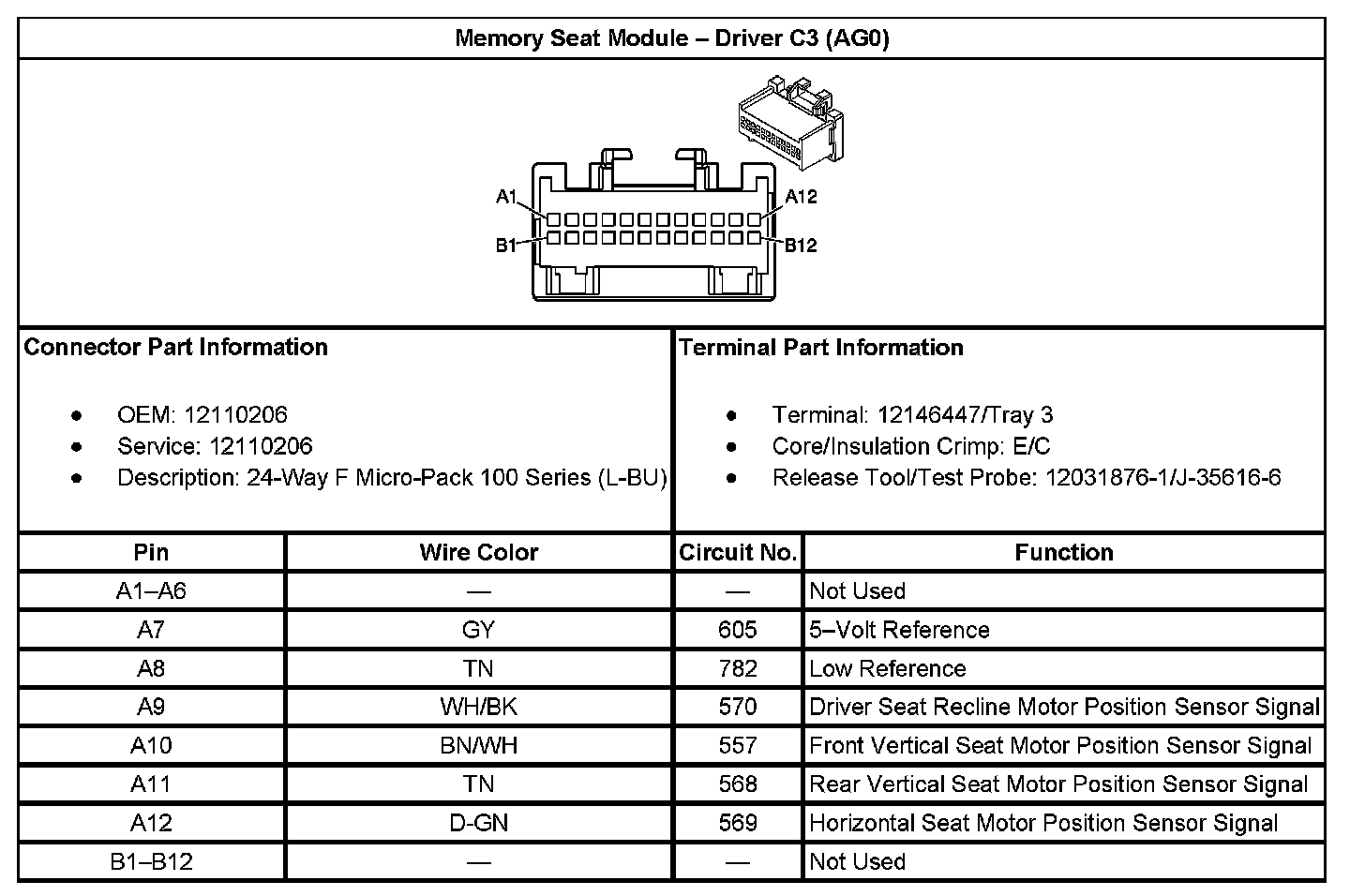

Memory Seat Module - Driver C3 (AG0):

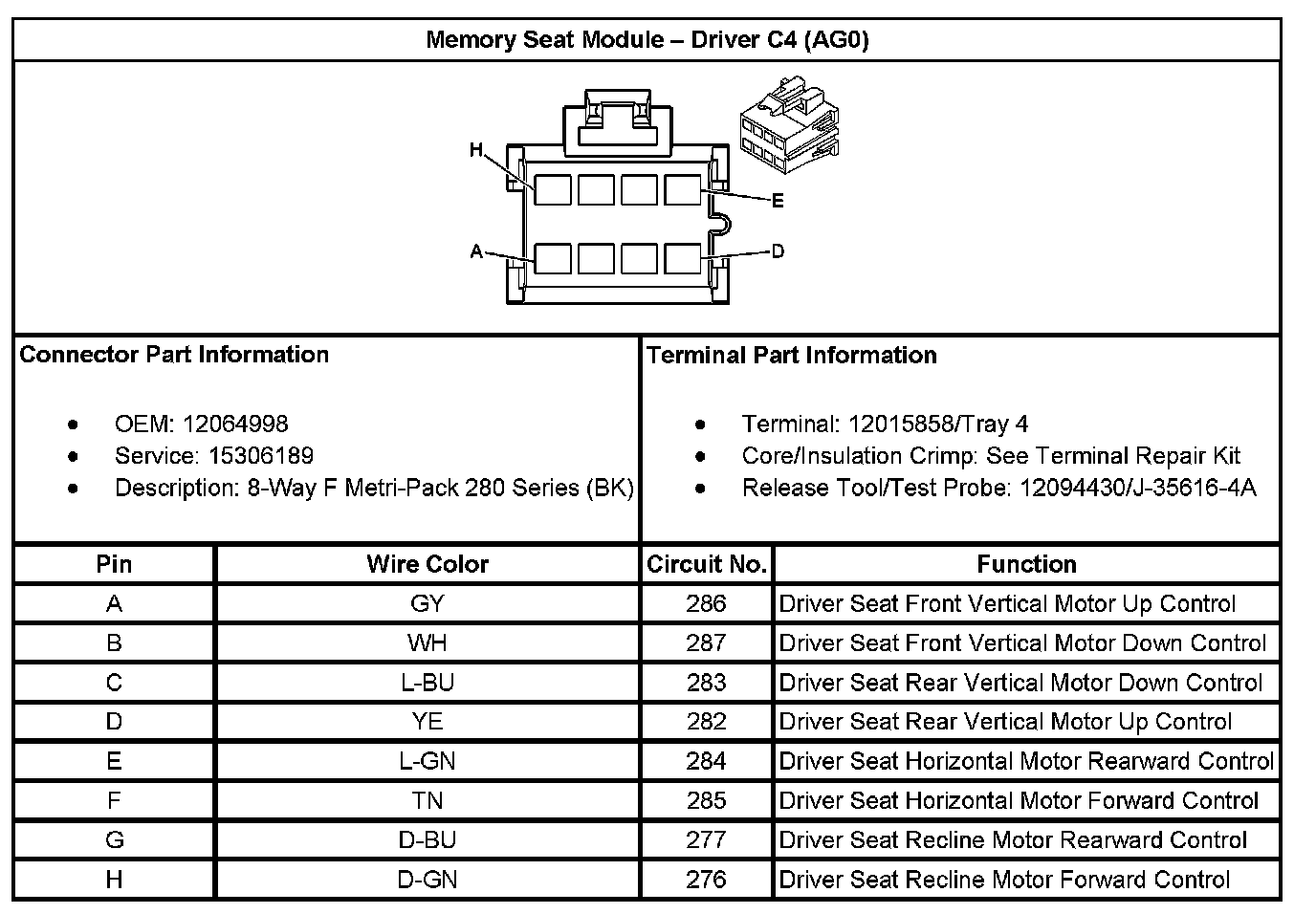

Memory Seat Module - Driver C4 (AG0):
