Electronic Brake Control Module: Locations

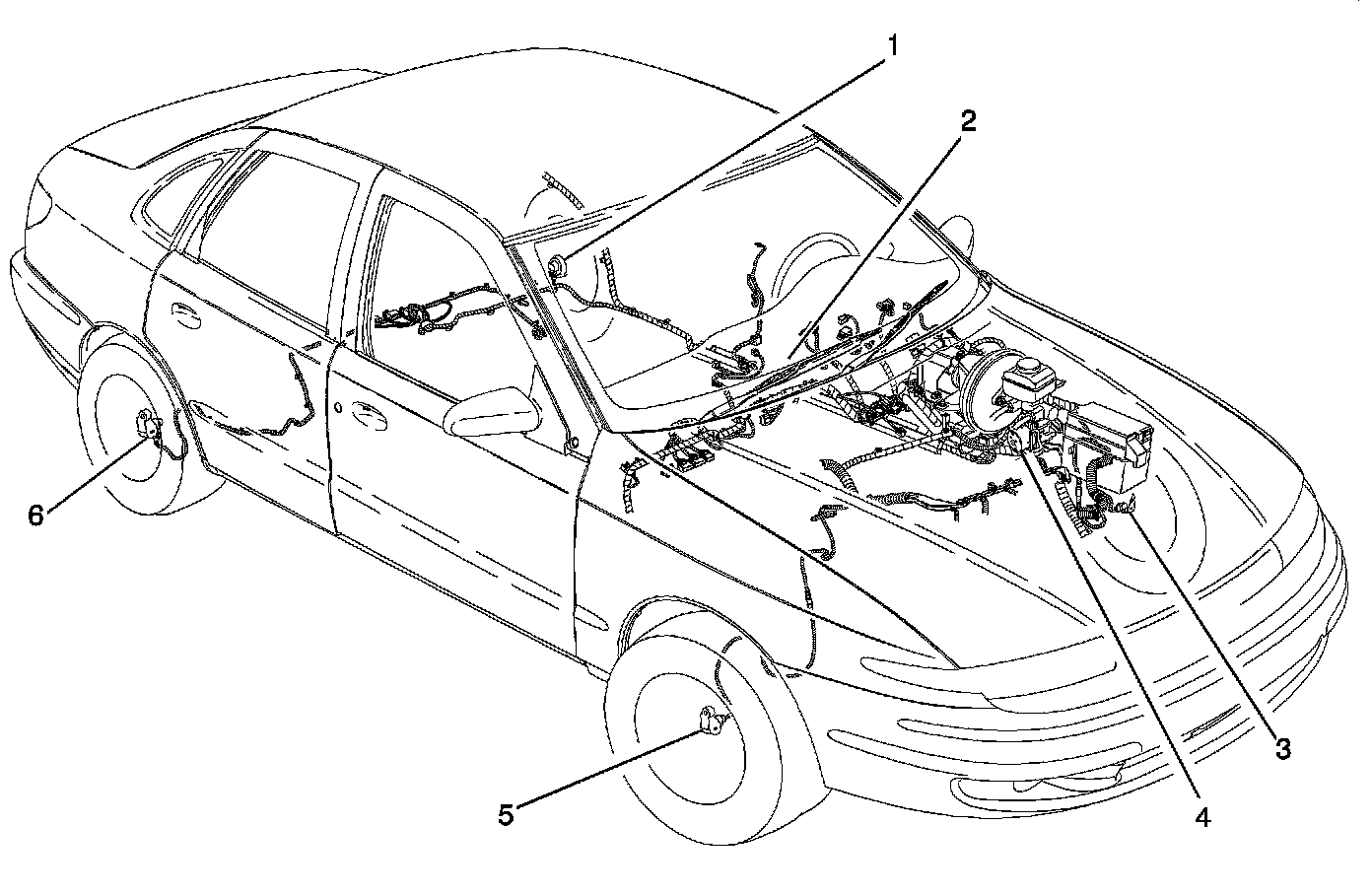

ABS Component Views





1 - Wheel Speed Sensor (WSS)- LR
2 - Right Heated Seat/Traction Switch
3 - Wheel Speed Sensor (WSS)- LF
4 - Electronic Brake Control Module (EBCM)
5 - Wheel Speed Sensor (WSS)- RF
6 - Wheel Speed Sensor (WSS)- RR
