Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

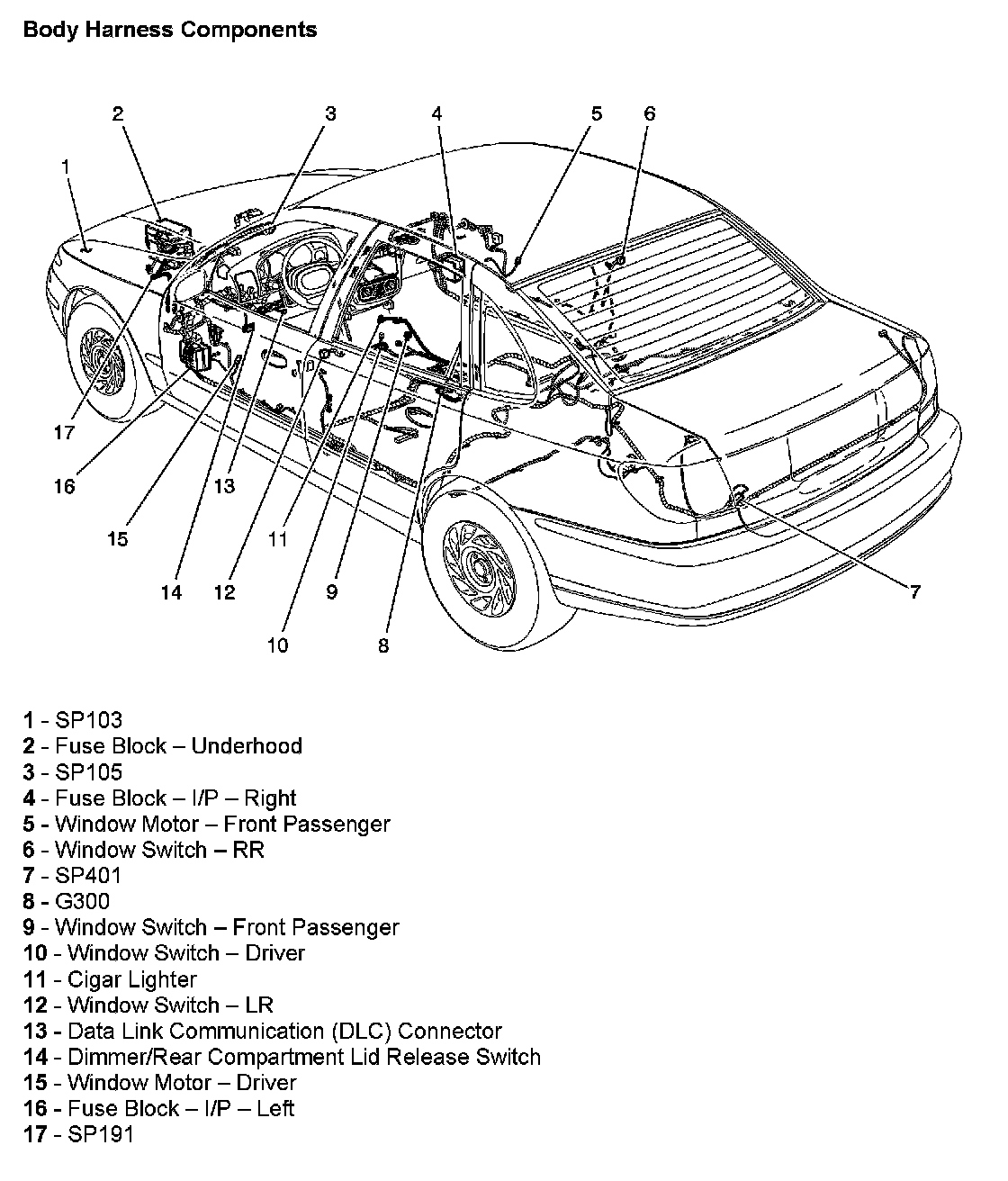

Body Harness Components:

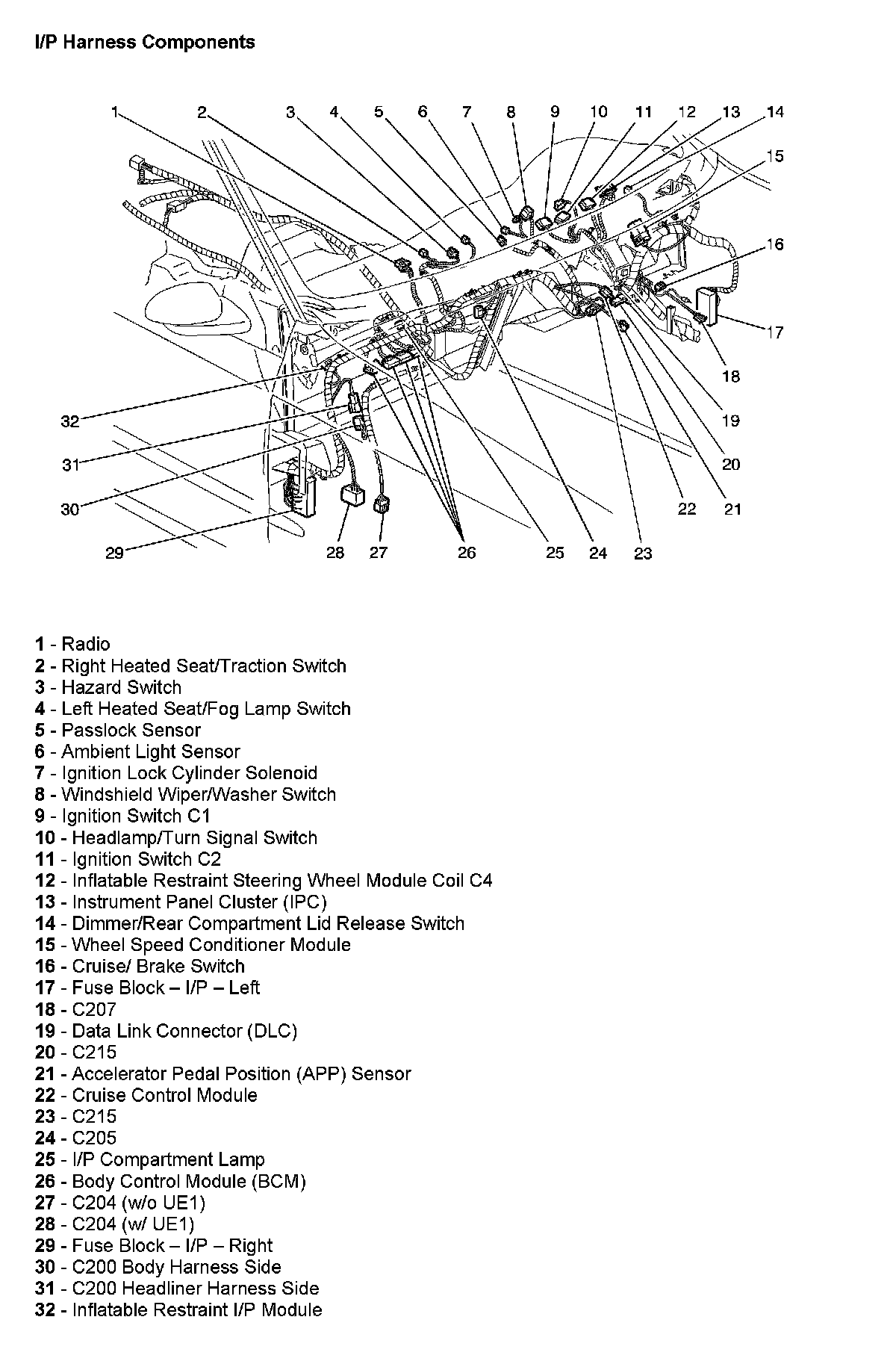

I/P Harness Components:



I/P Harness Components:

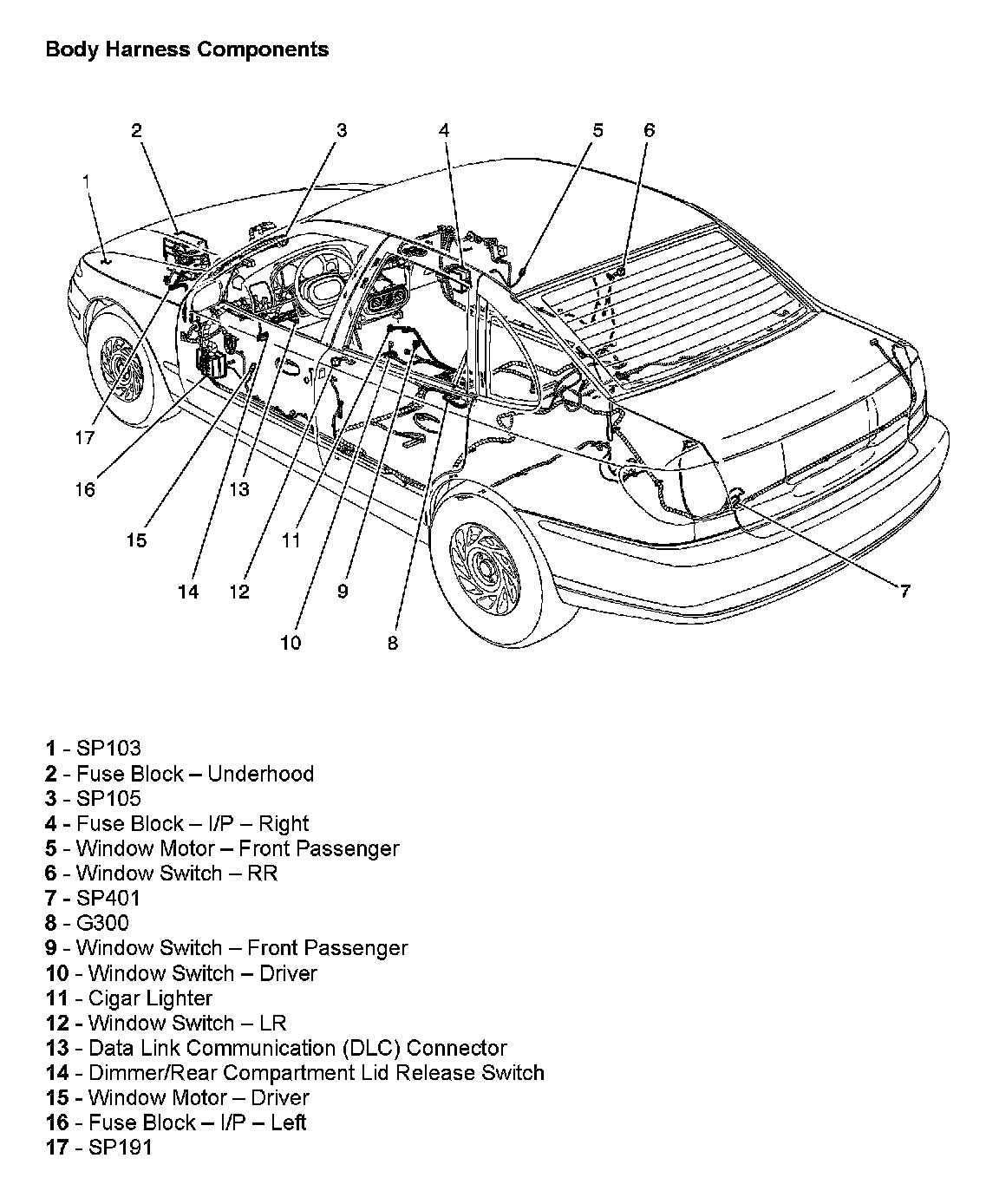

Body Harness Components:
