Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor

Wheel Speed Sensor

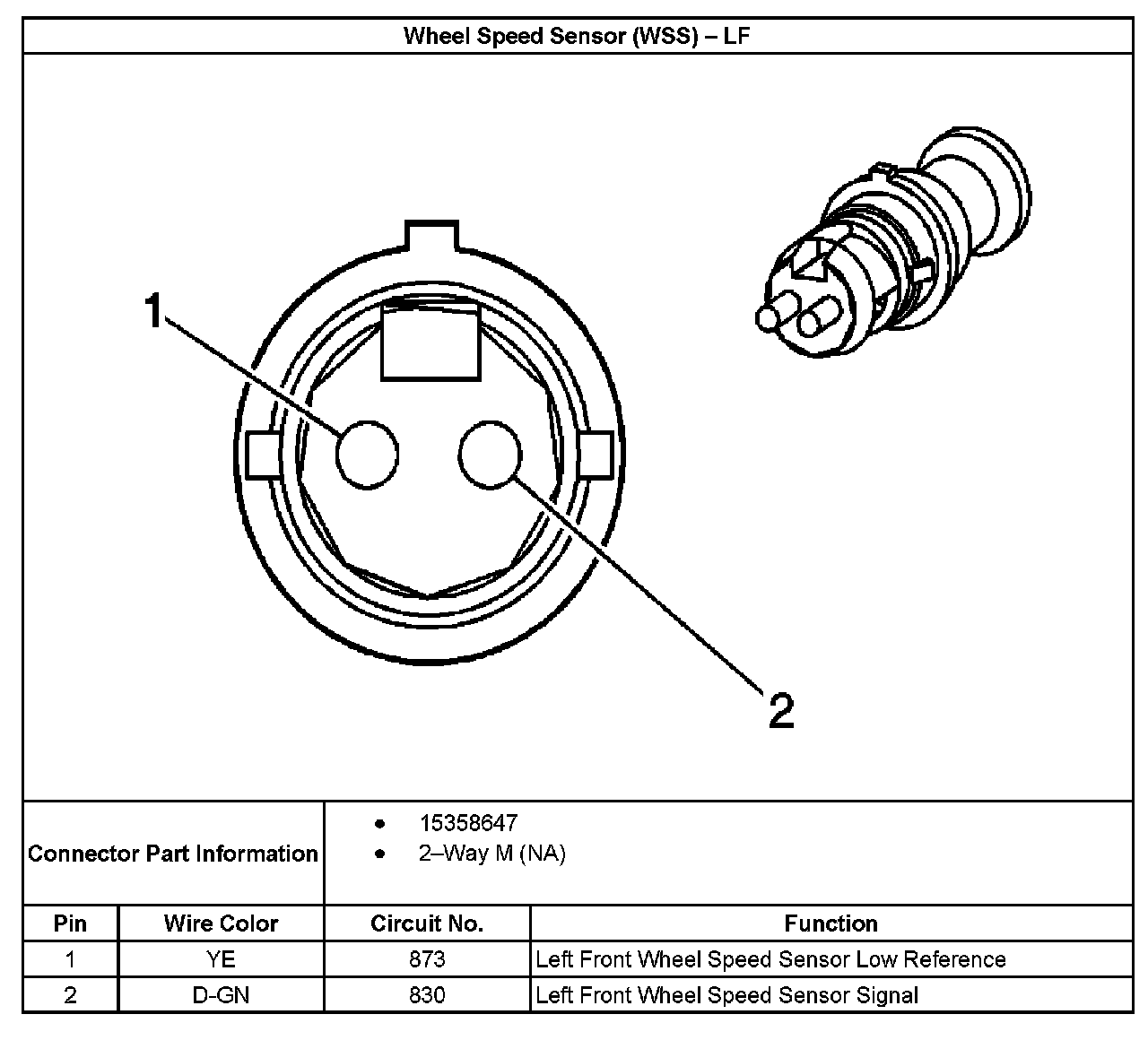

Wheel Speed Sensor - LF:

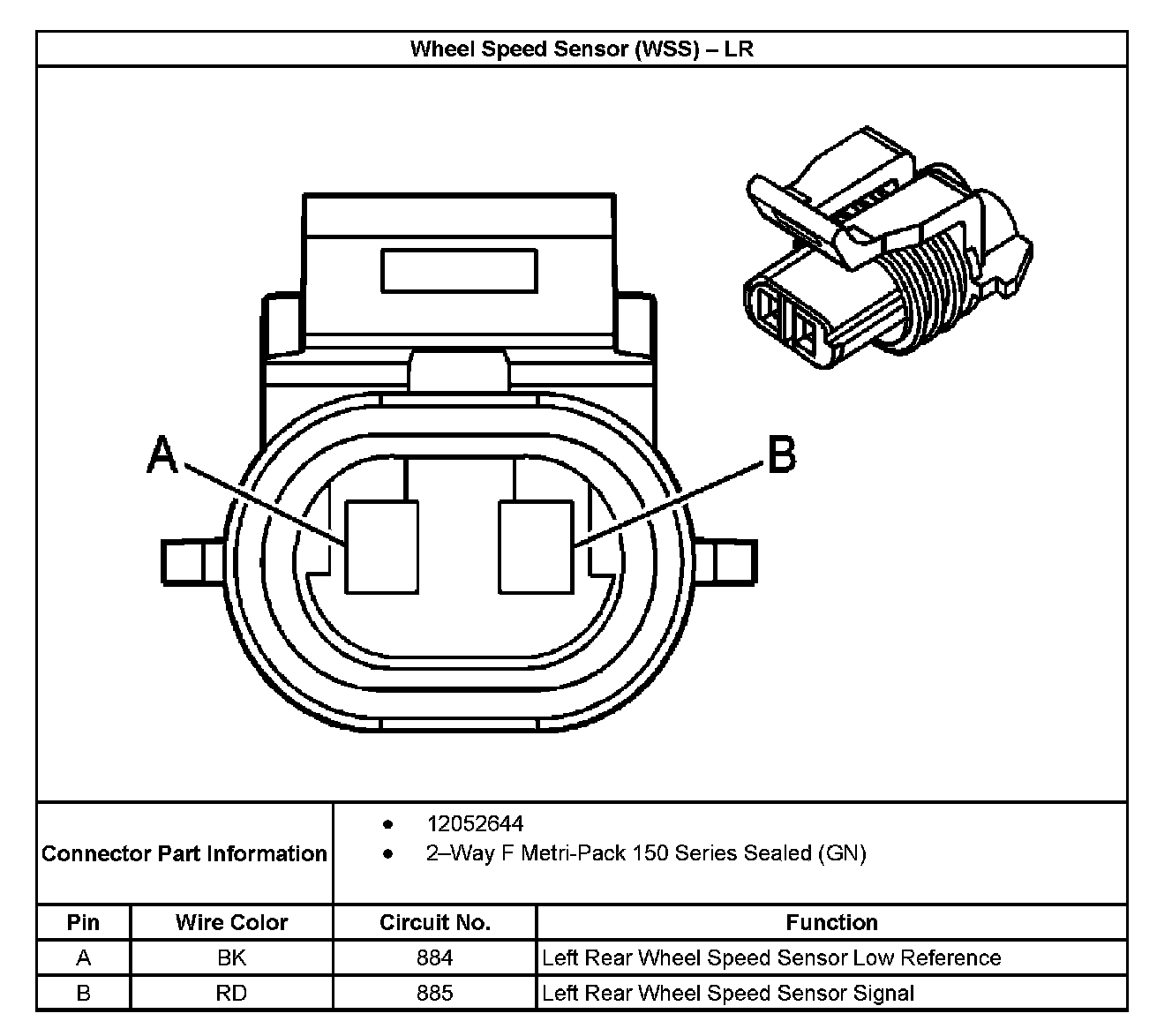

Wheel Speed Sensor - LR:

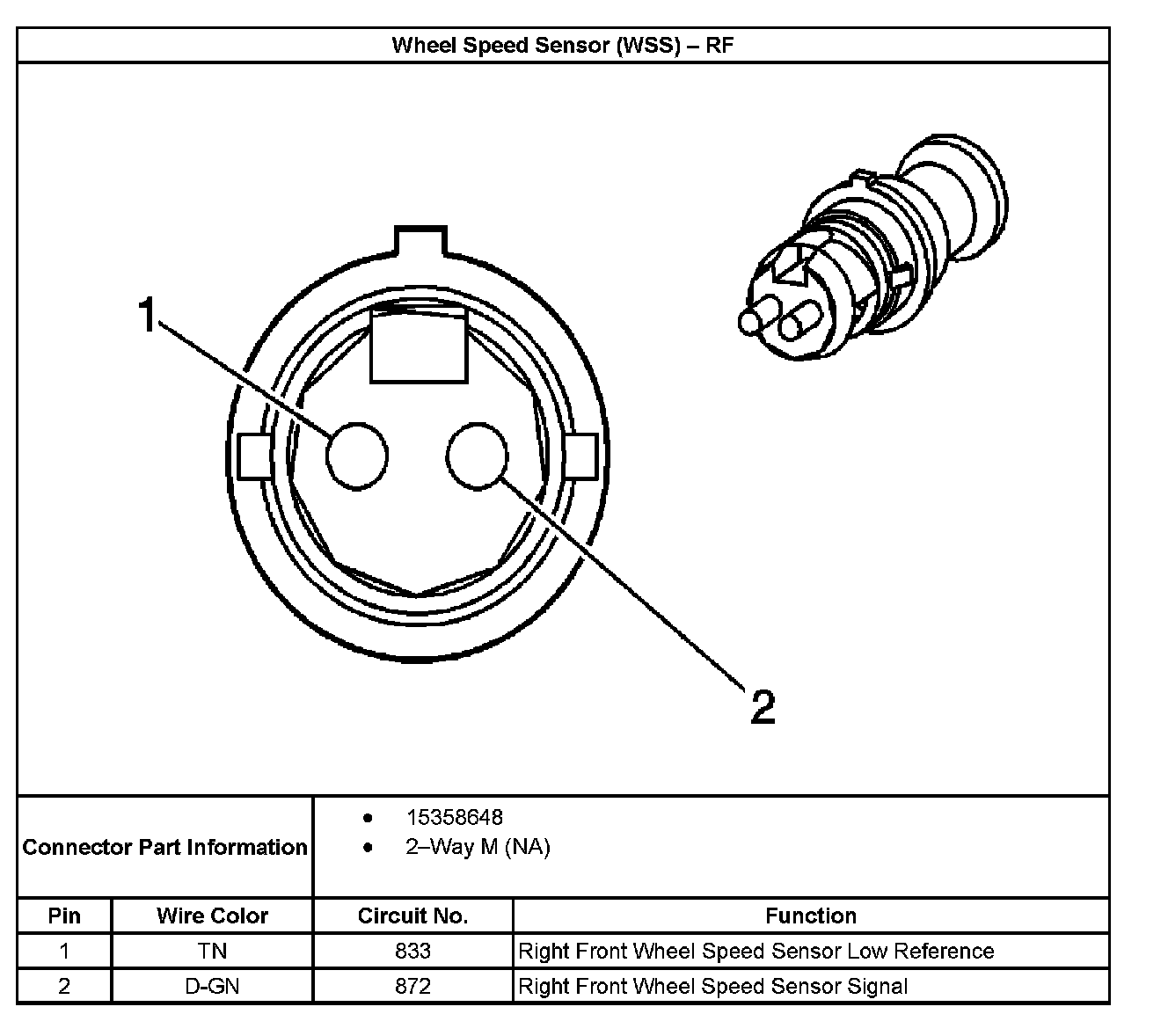

Wheel Speed Sensor - RF:

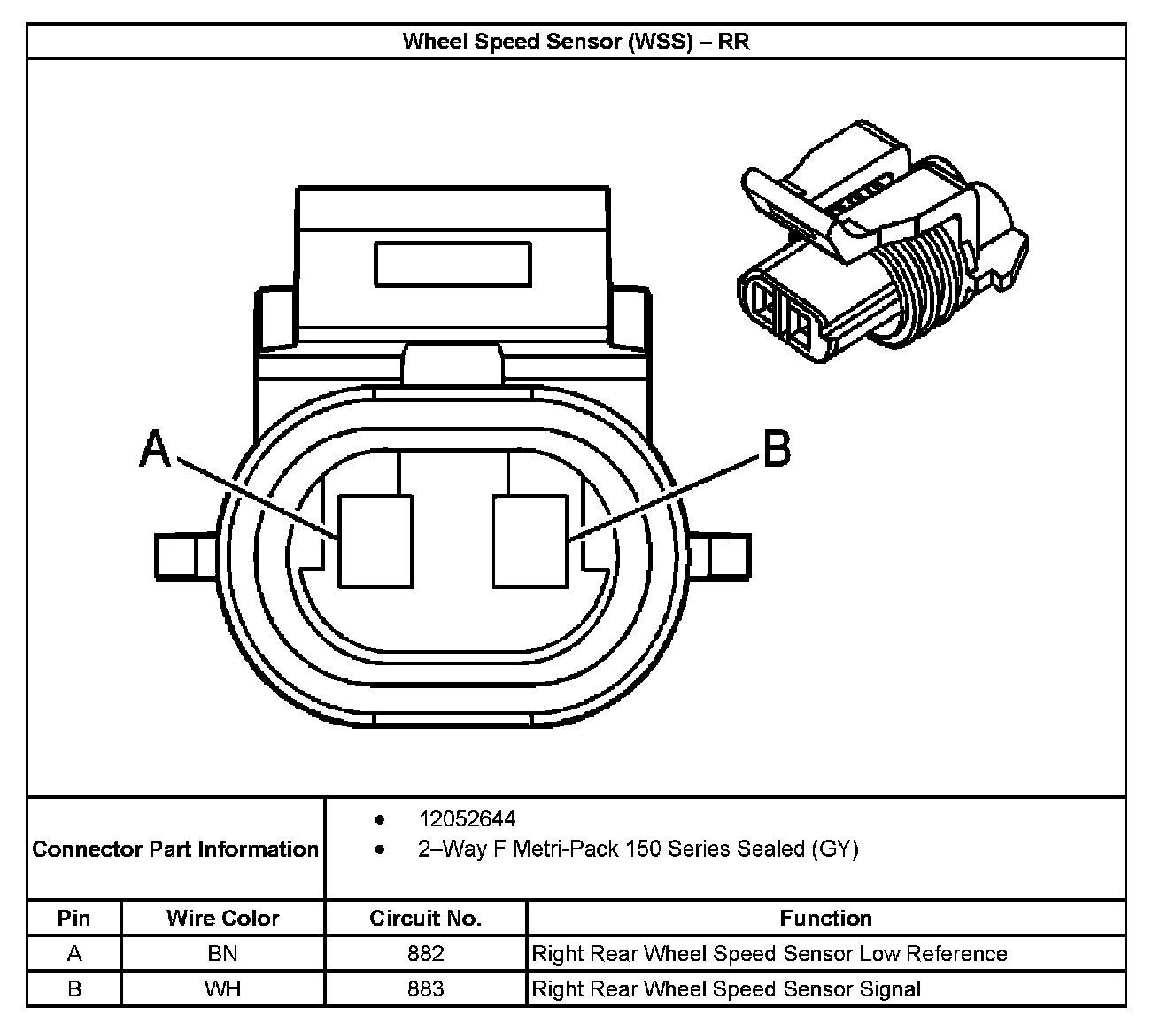

Wheel Speed Sensor - RR:
