Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems

Transmission Control Systems

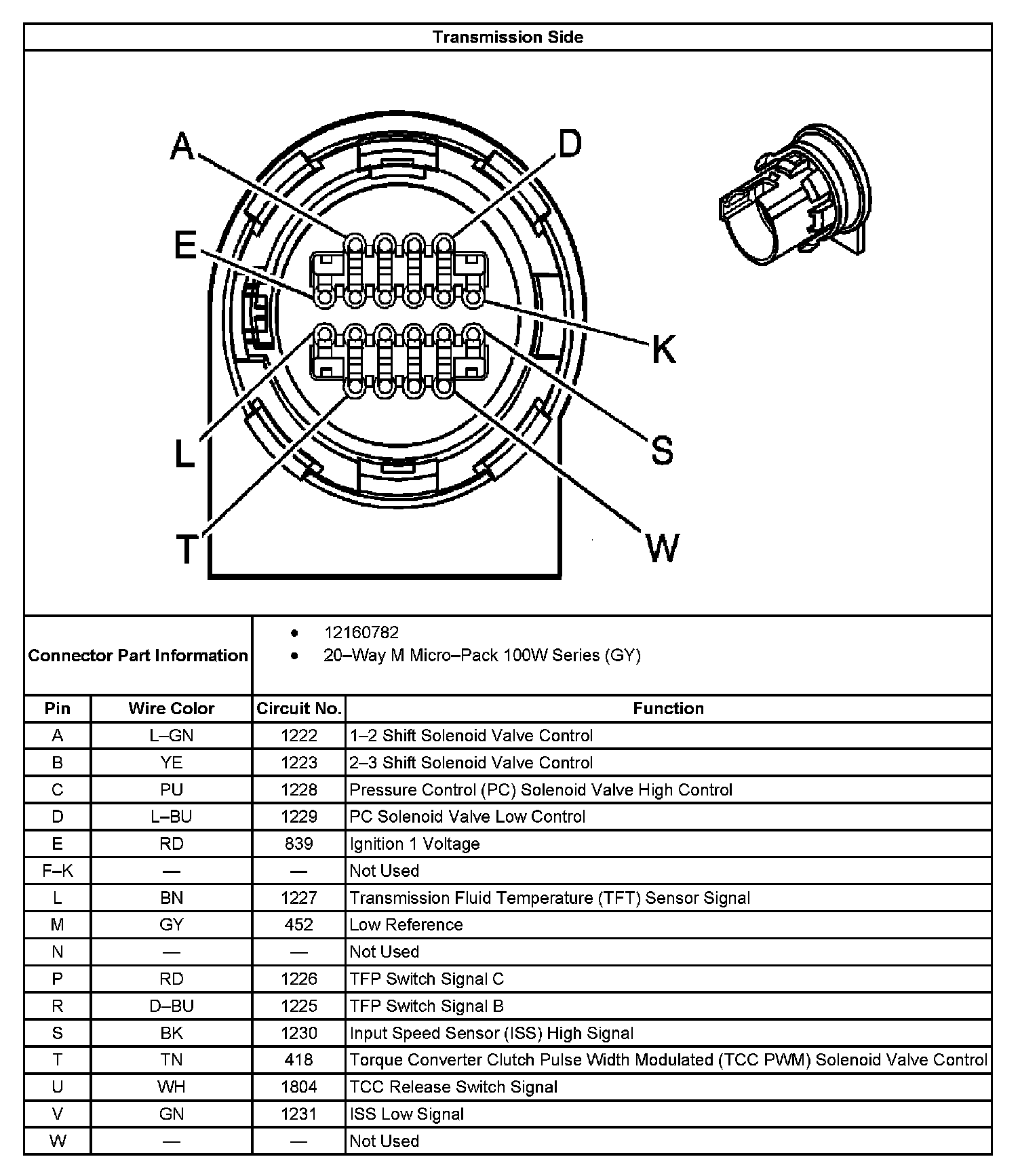

Automatic Transmission Inline 20-Way Connector End View:

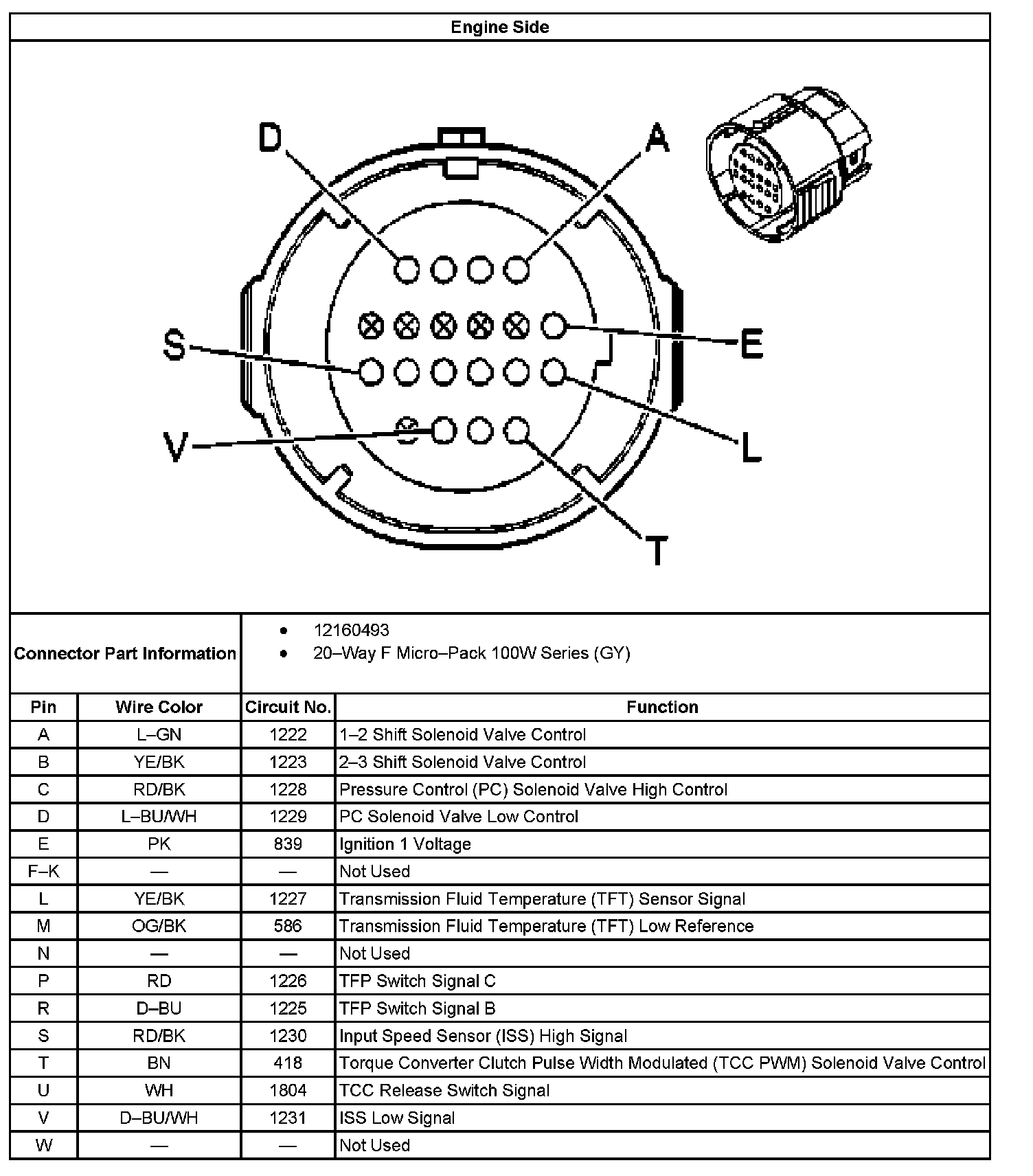

Automatic Transmission Inline 20-Way Connector End View:
