Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

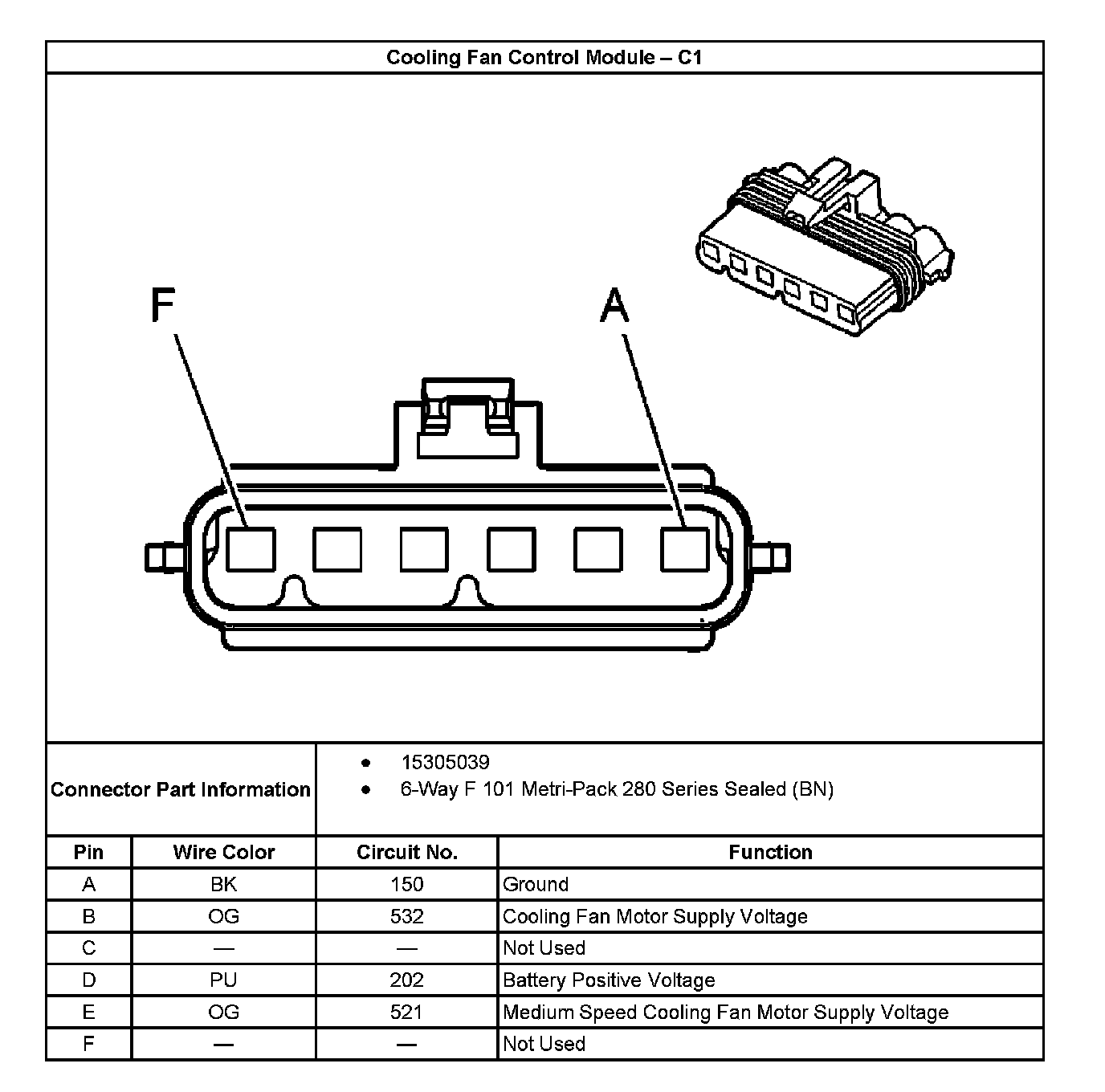

Cooling Fan Control Module C1:

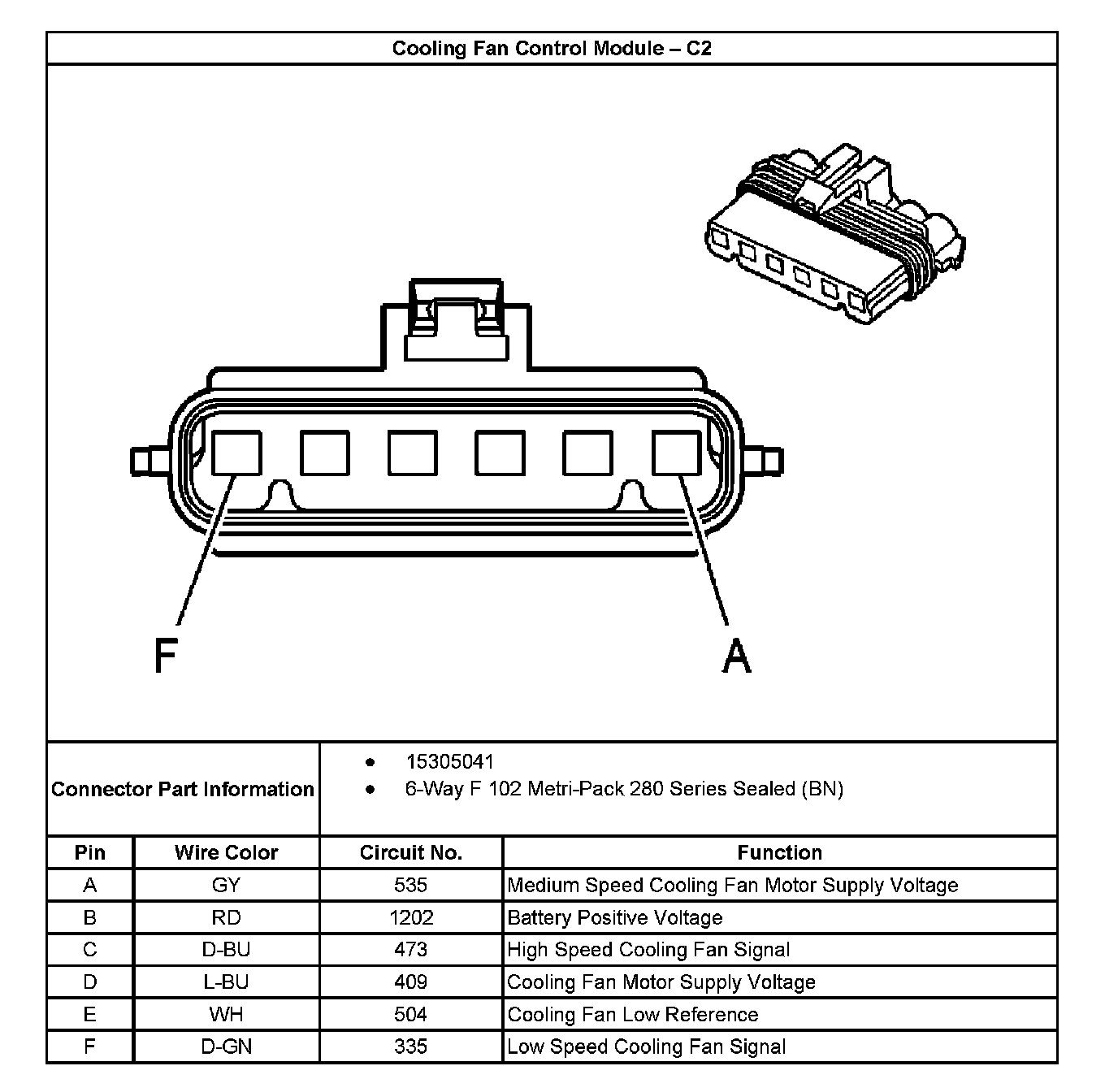

Cooling Fan Control Module C2:
