Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module

Electronic Throttle Control Module

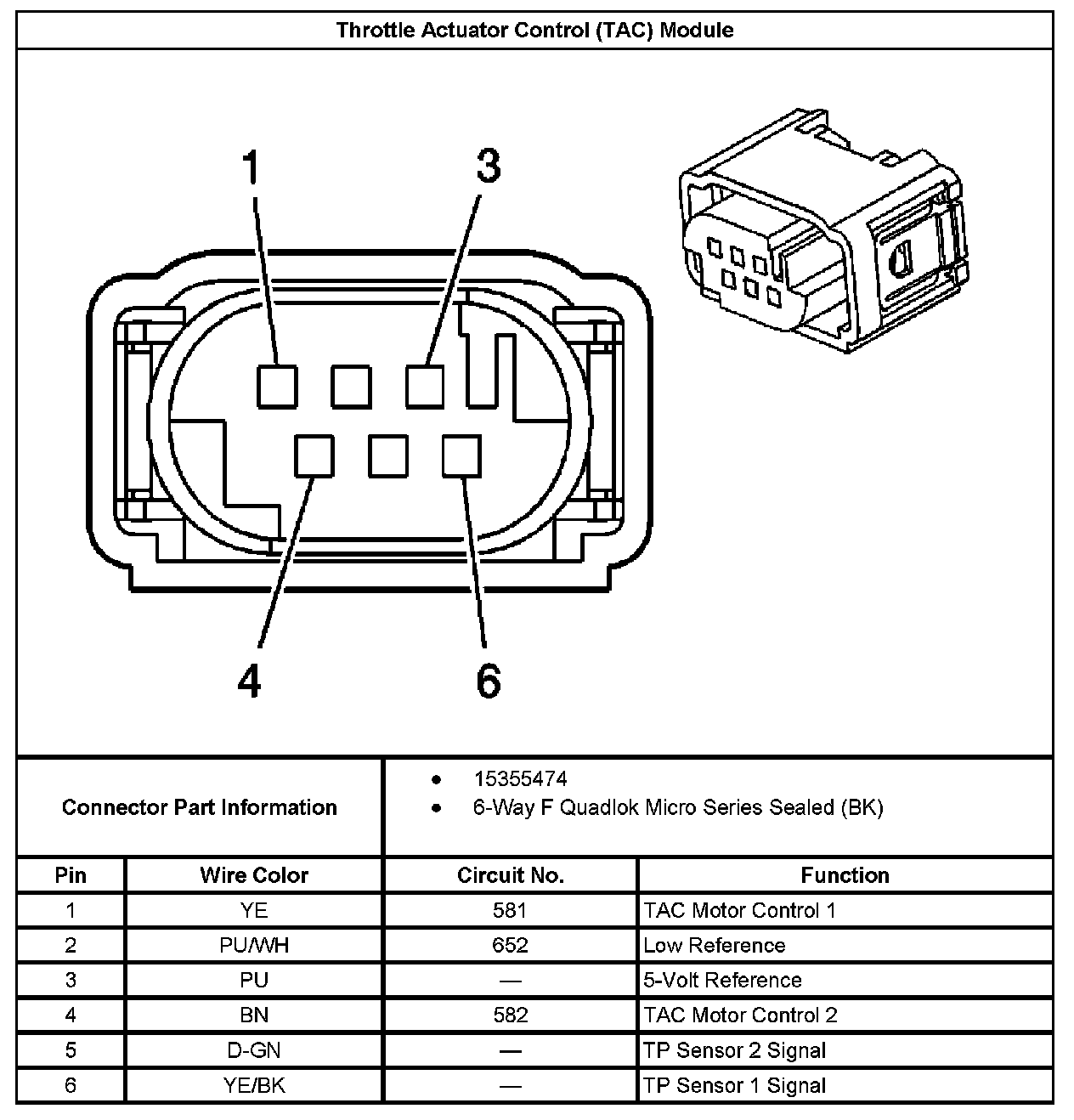

Throttle Actuator Control (TAC) Module:
