Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

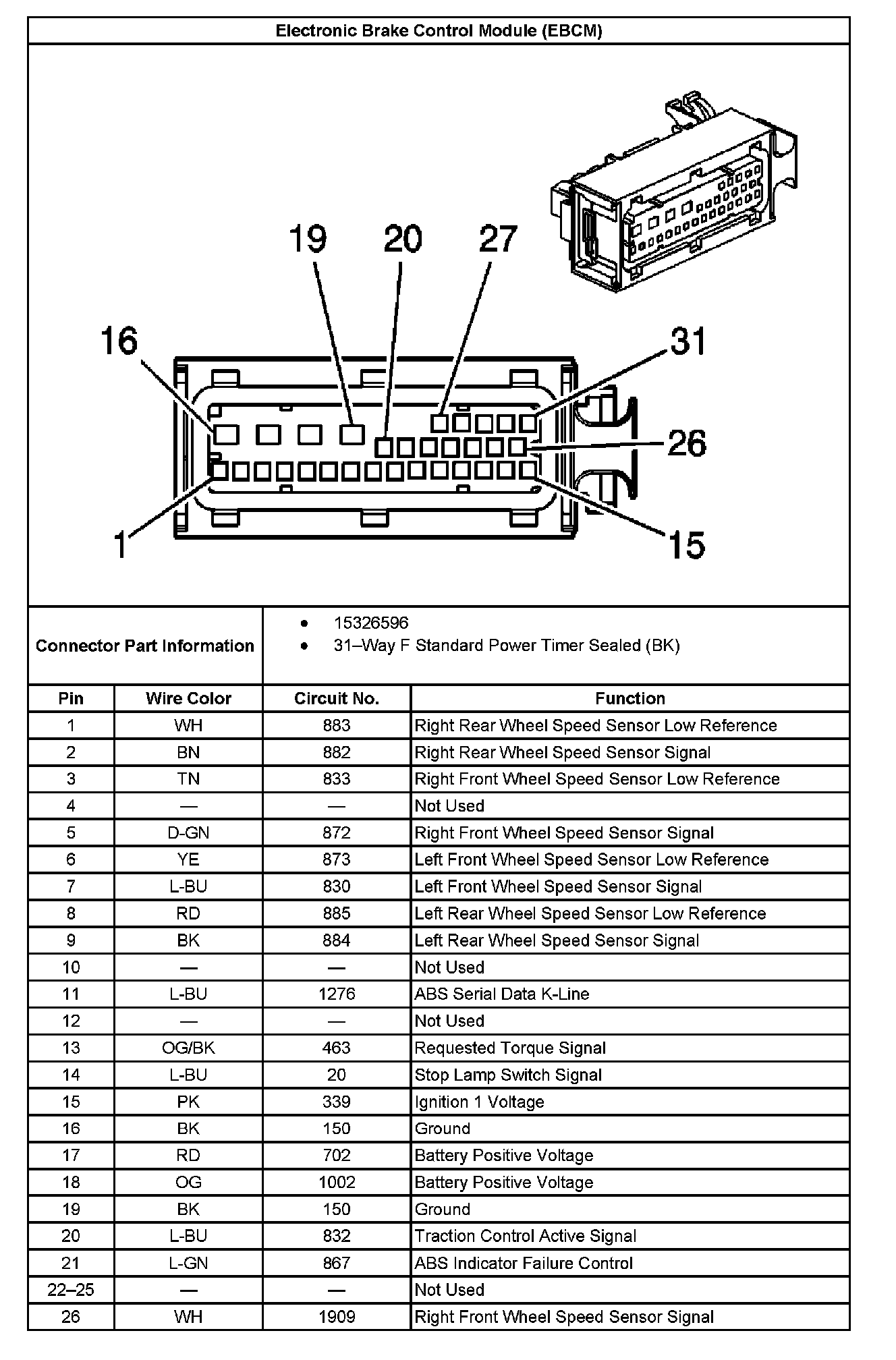

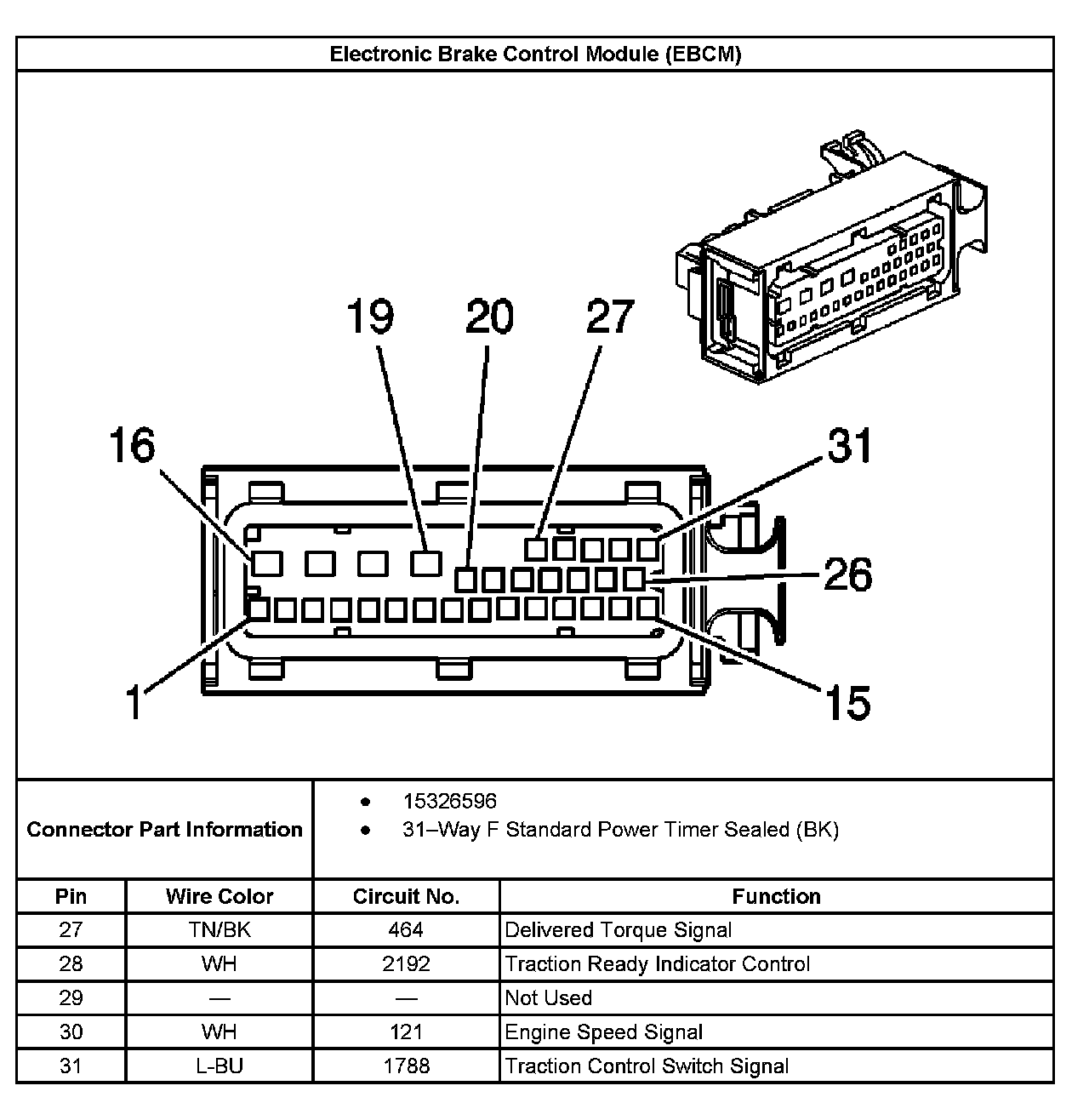

Electronic Brake Control Module

Electronic Brake Control Module:



Electronic Brake Control Module:
