Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Components

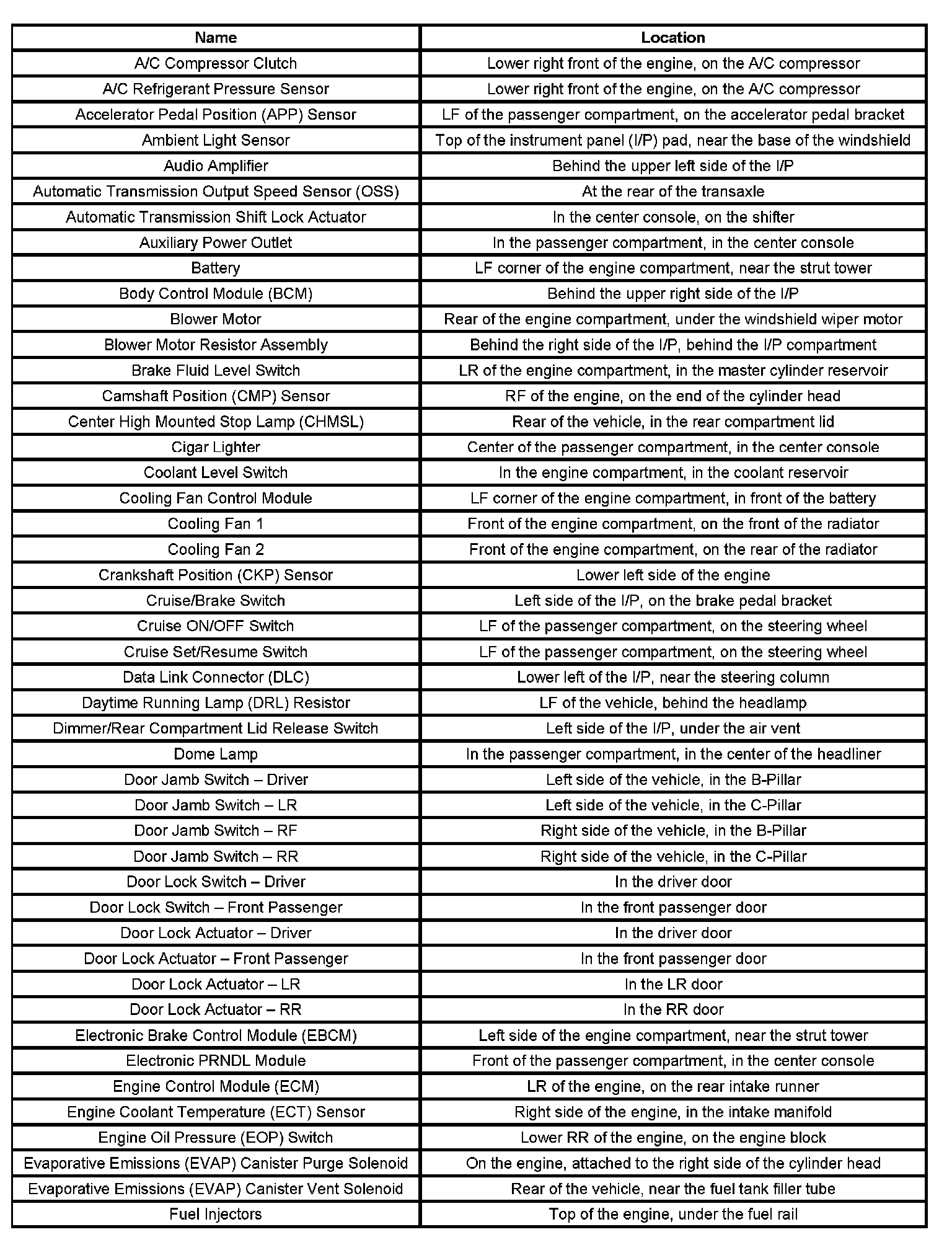

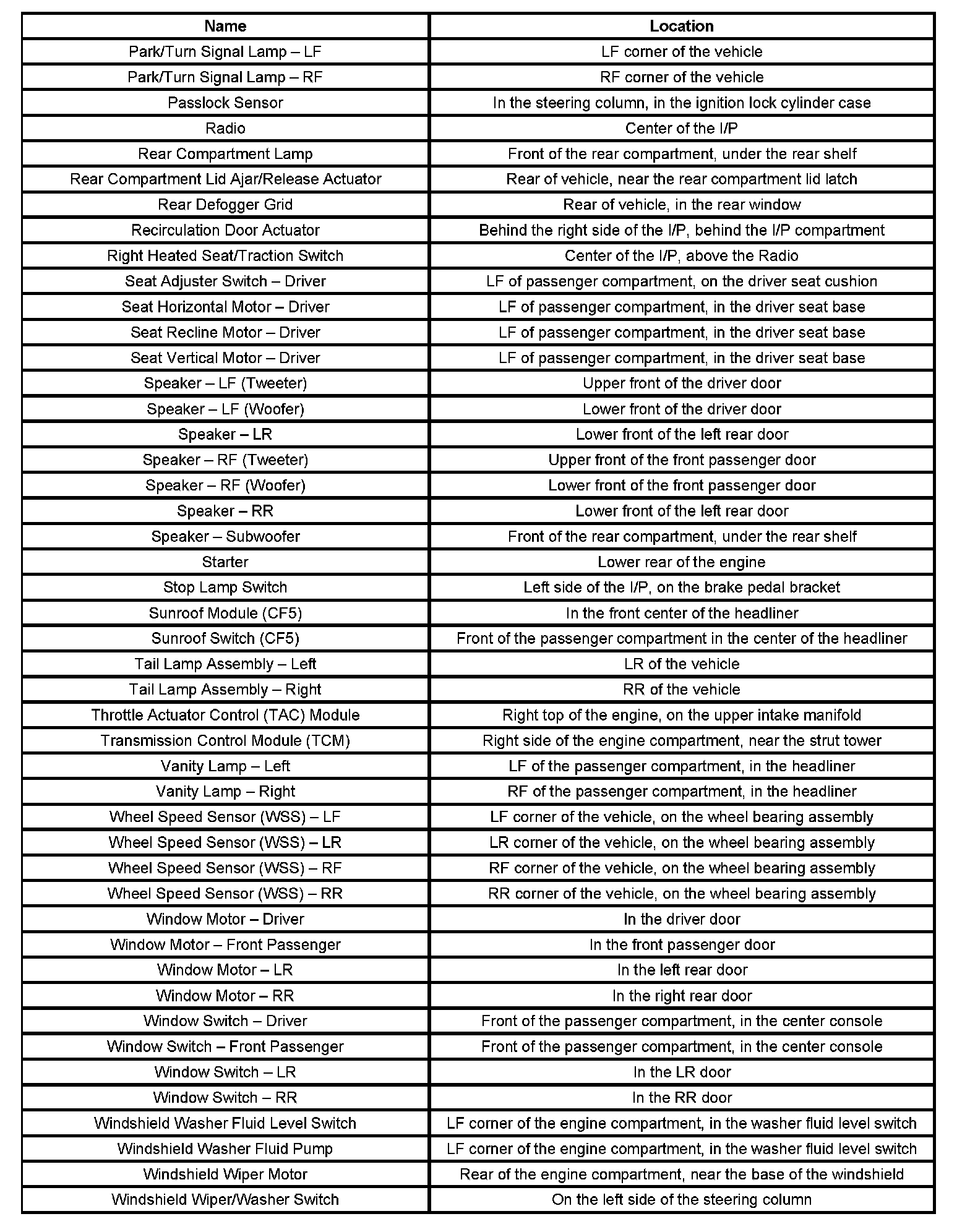

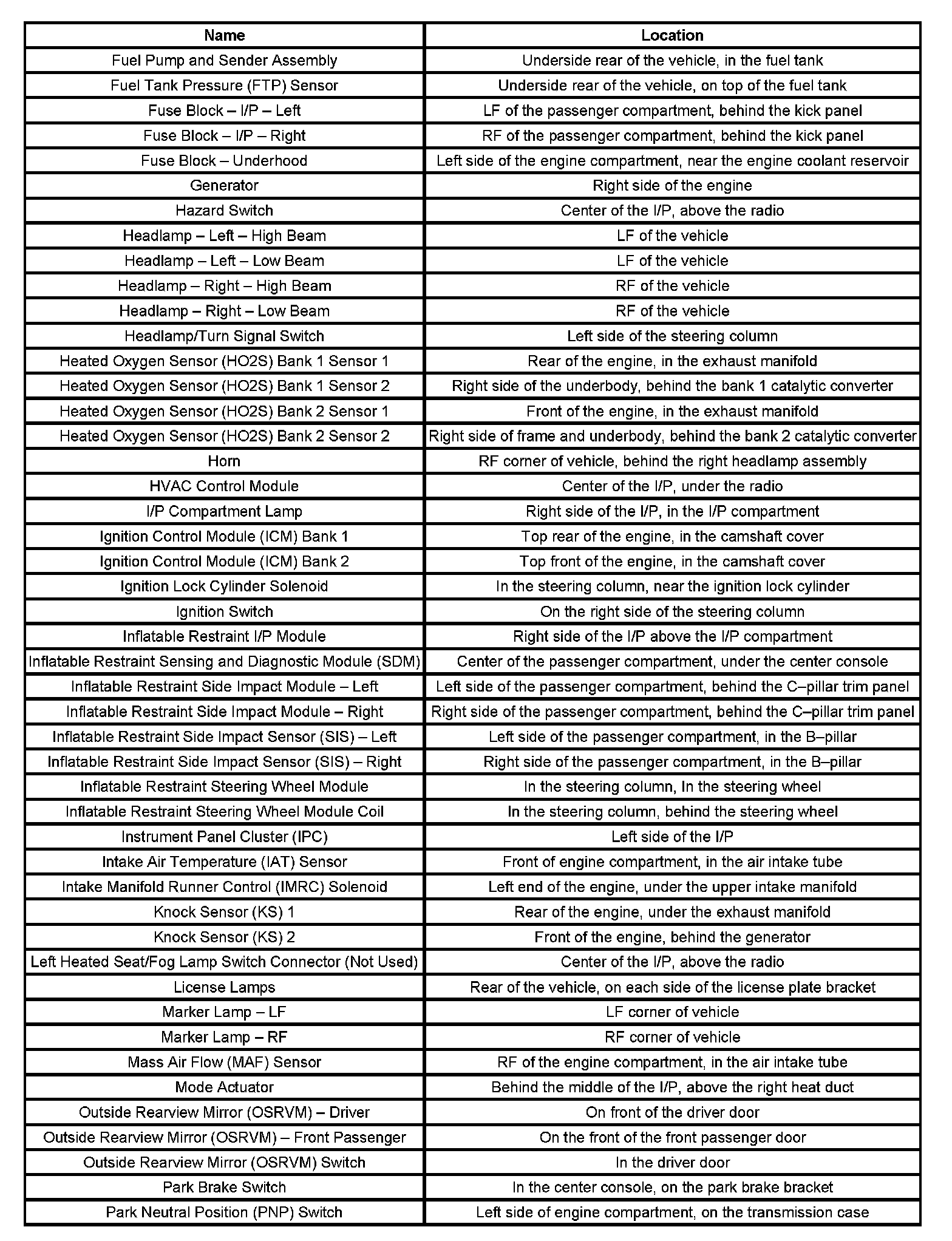

Components

A/C - Fu:

Fu - Pa:

Pa - Wi:
