Auxiliary Power Outlet: Service and Repair

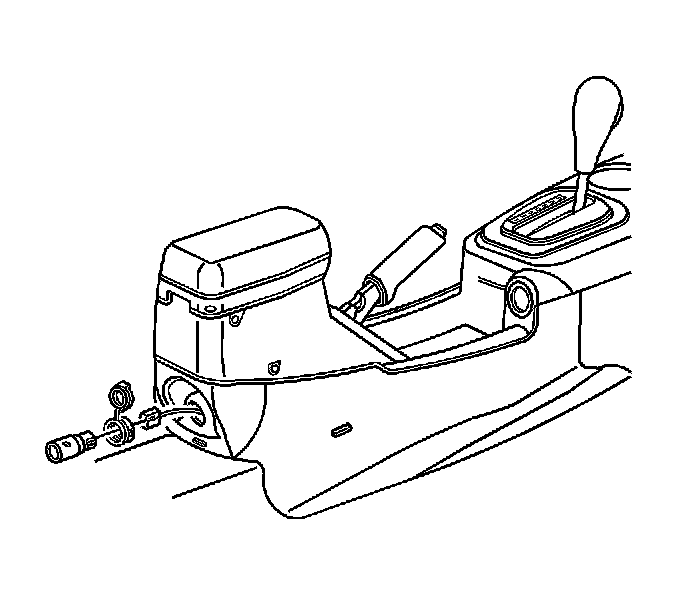

ACCESSORY POWER RECEPTACLE COVER REPLACEMENT - FLOOR CONSOLE

REMOVAL PROCEDURE




1. Remove the power accessory receptacle.
2. Remove the power outlet cover.

INSTALLATION PROCEDURE




1. Position the power outlet cover with the key to the slot into the power outlet hole.
2. Install the power accessory receptacle.
