Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Maintenance >> Fluids >> Fluid - A/T >> Testing and Inspection

Fluid - A/T: Testing and Inspection

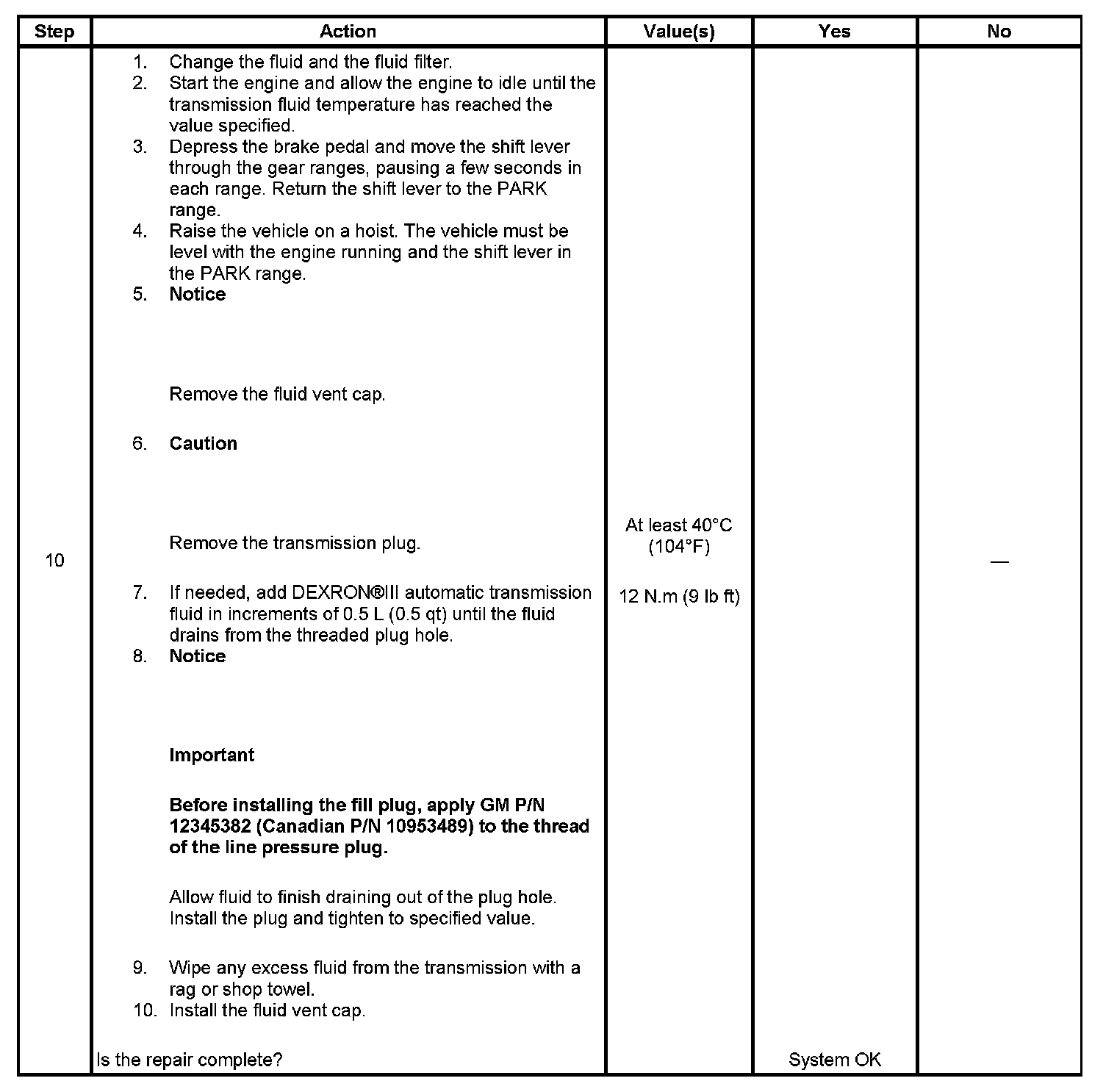

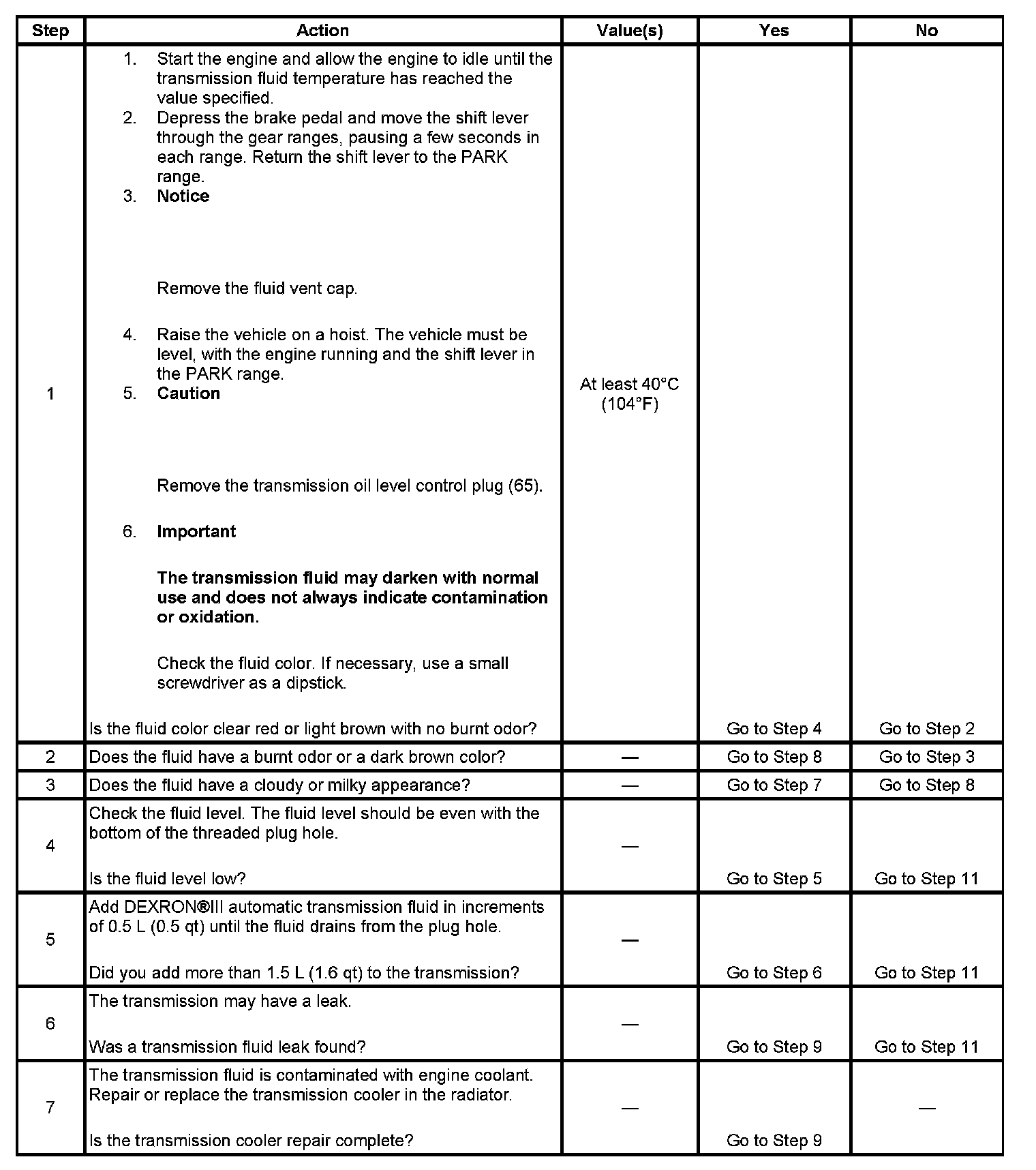

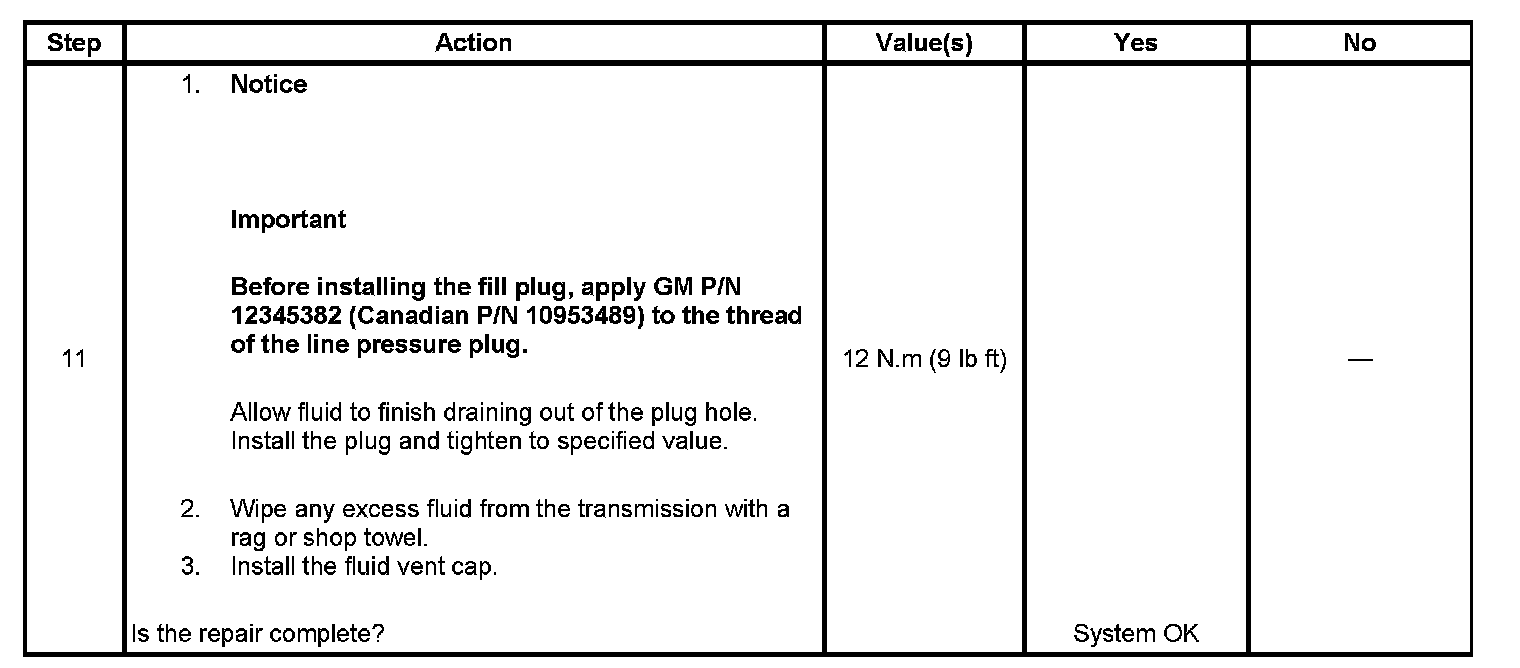

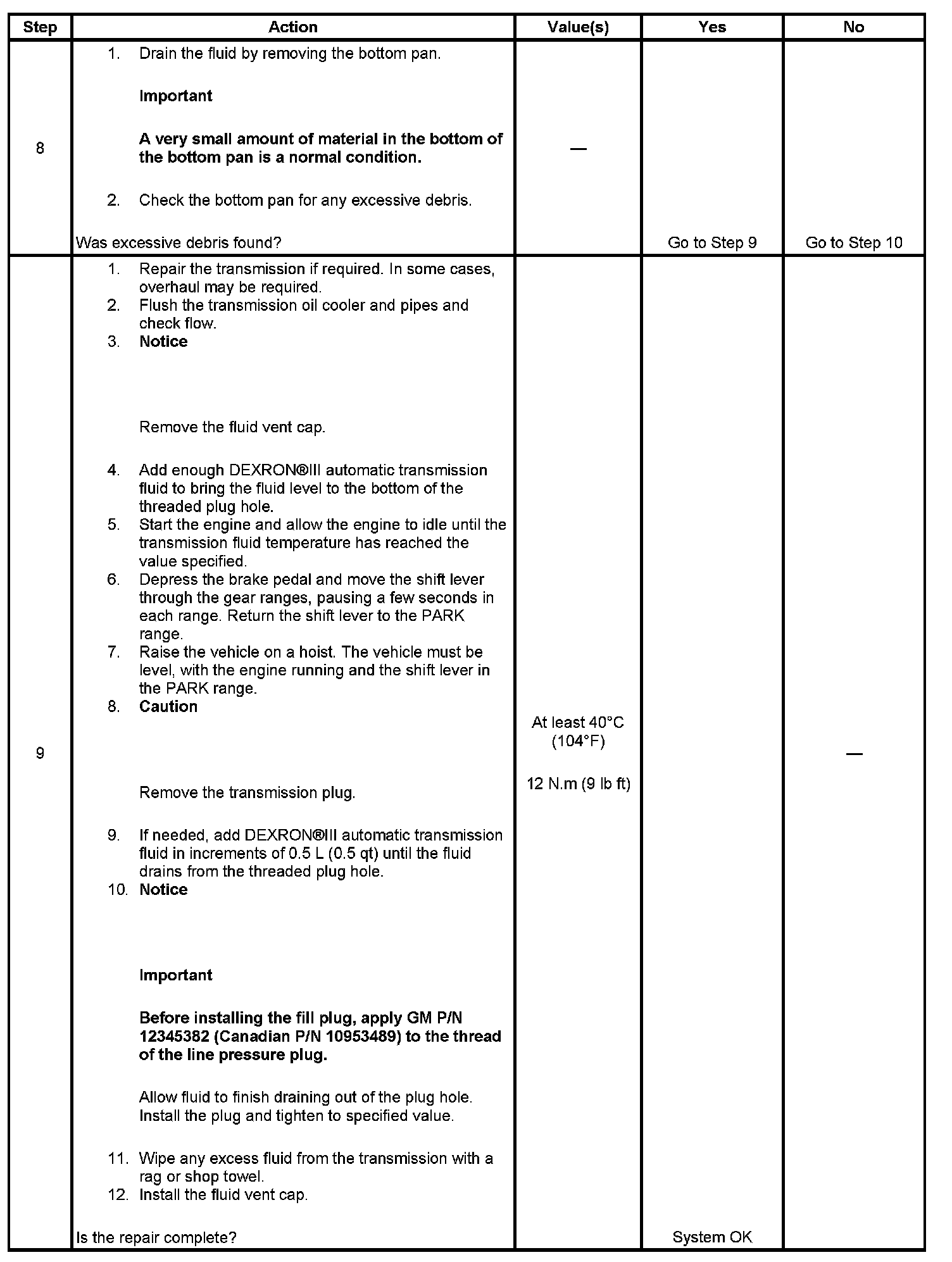

Transmission Fluid Checking Procedure

Transmission Fluid Check:





The oil level control plug (65) is located on the torque converter side of the transmission.
