Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp

Turn Signal Lamp

Park/Turn Signal Lamp - LF (Coupe):

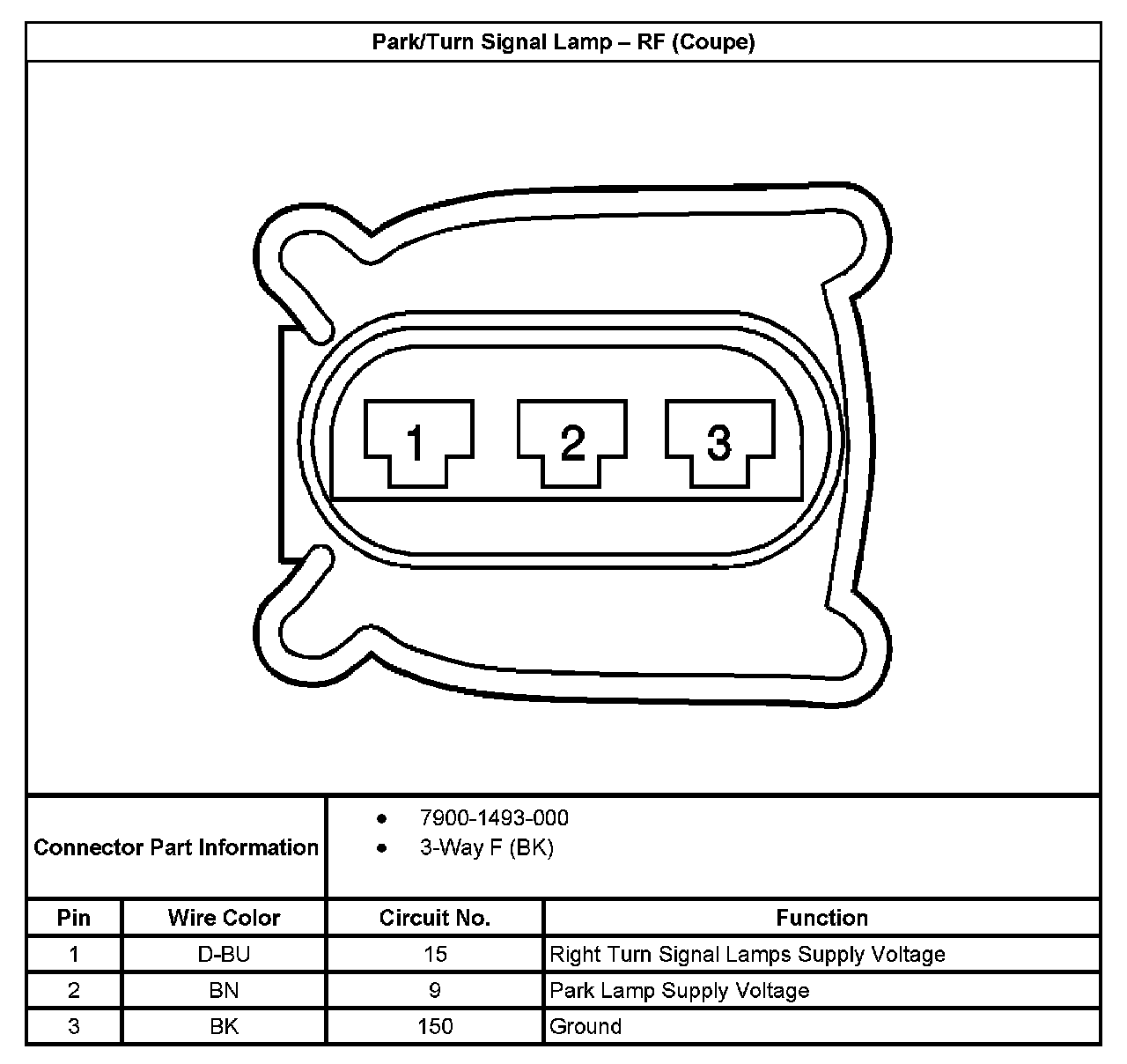

Park/Turn Signal Lamp - RF (Coupe):

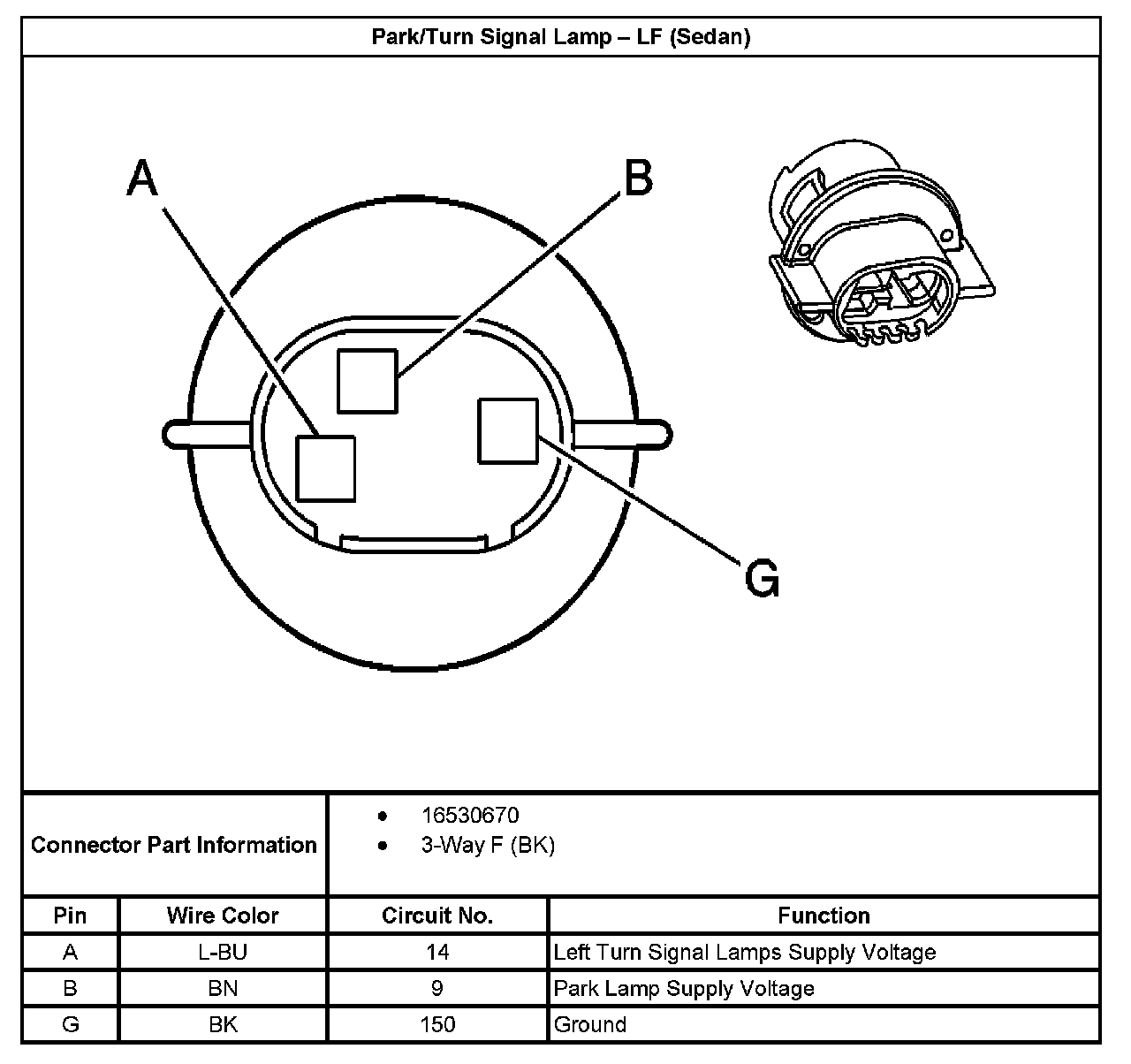

Park/Turn Signal Lamp - LF (Sedan):




Park/Turn Signal Lamp - RF (Sedan):




Tail/Turn Signal Lamp - Left:

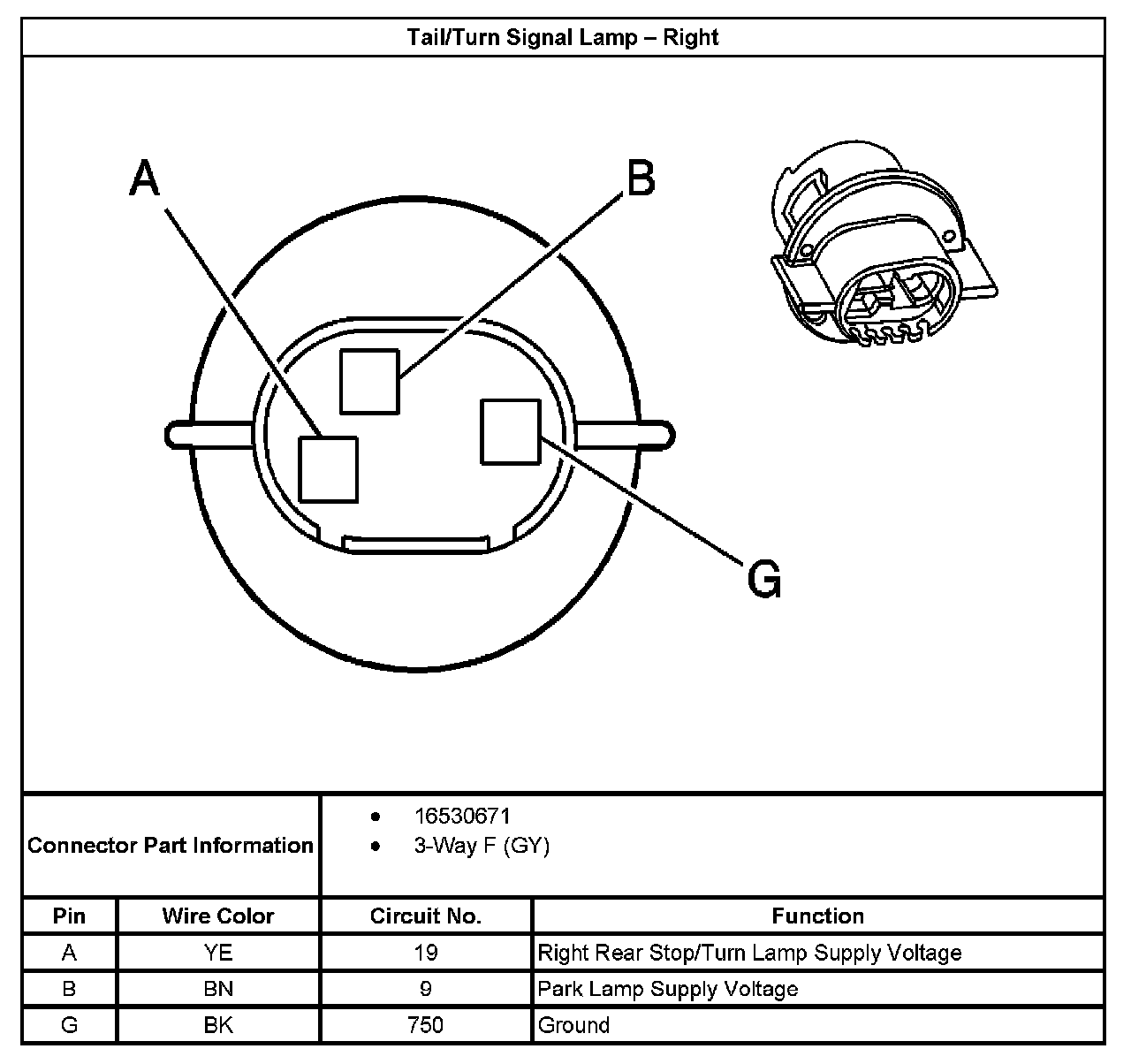

Tail/Turn Signal Lamp - Right:
