Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Latch

Trunk / Liftgate Latch

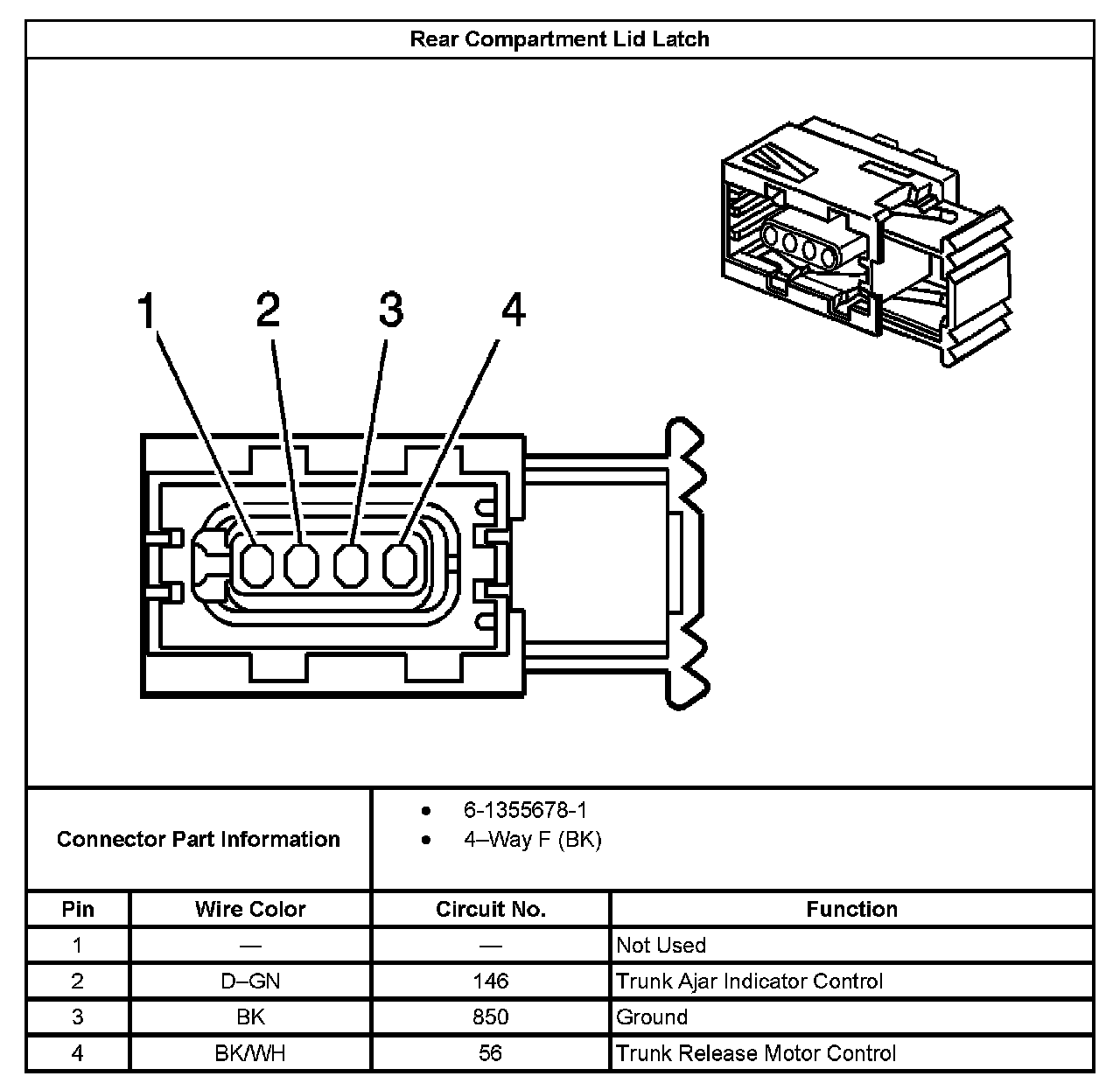

Rear Compartment Lid Latch:
