Impact Sensor
Impact Sensor

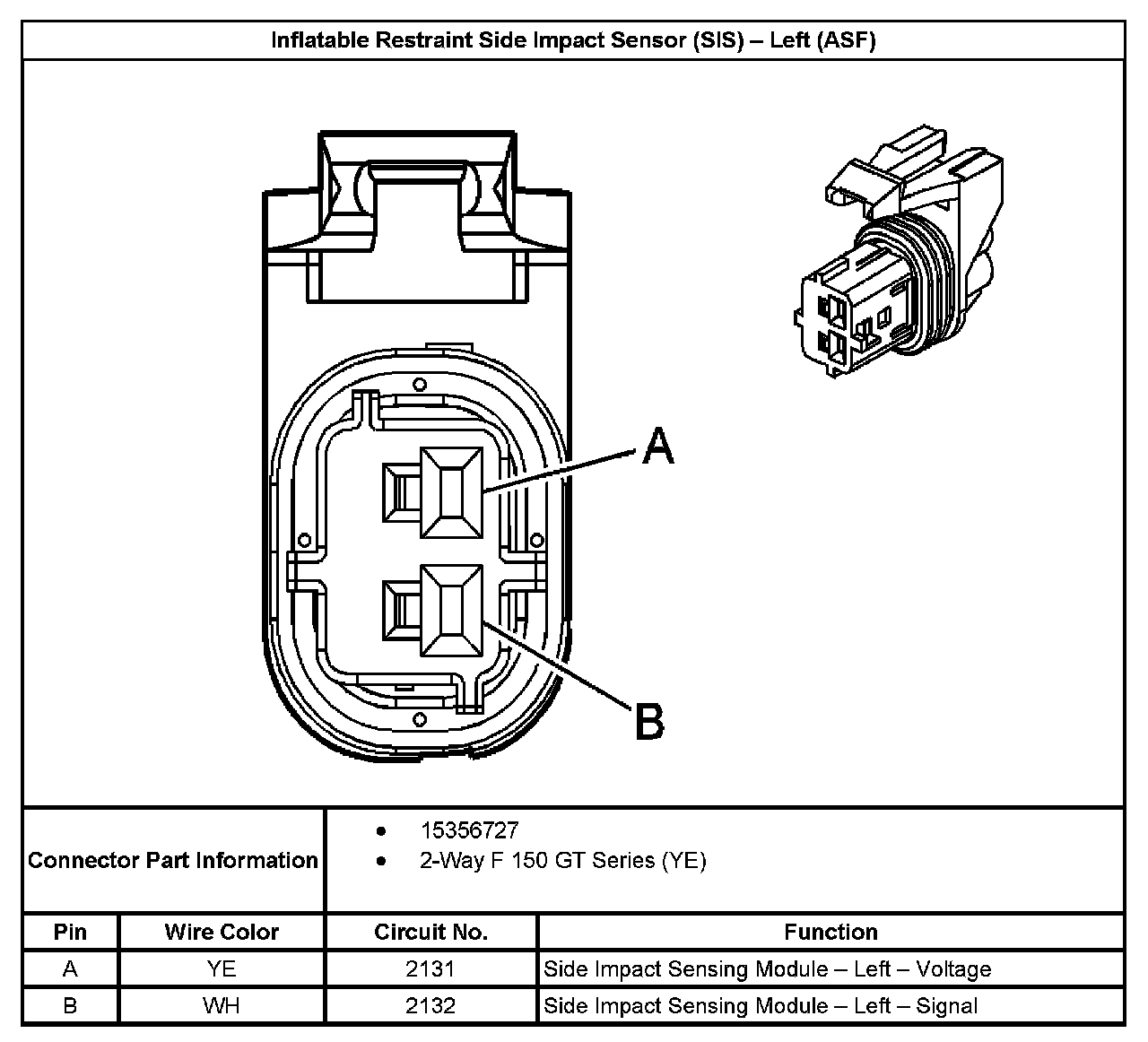

Inflatable Restraint Side Impact Sensor (SIS)-Left (with RPO Code ASF):

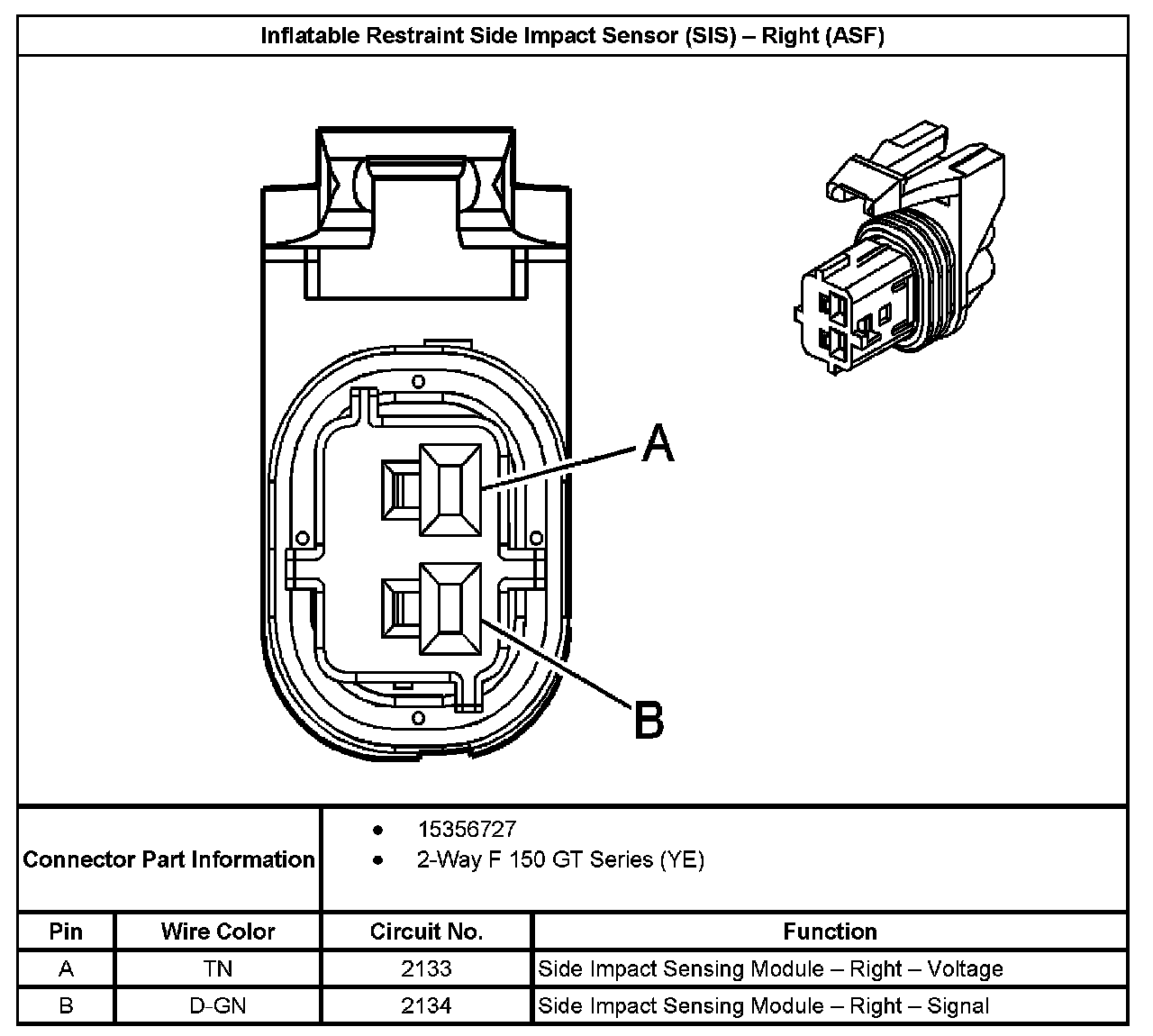

Inflatable Restraint Side Impact Sensor (SIS)-Right (with RPO Code ASF):
