Doors

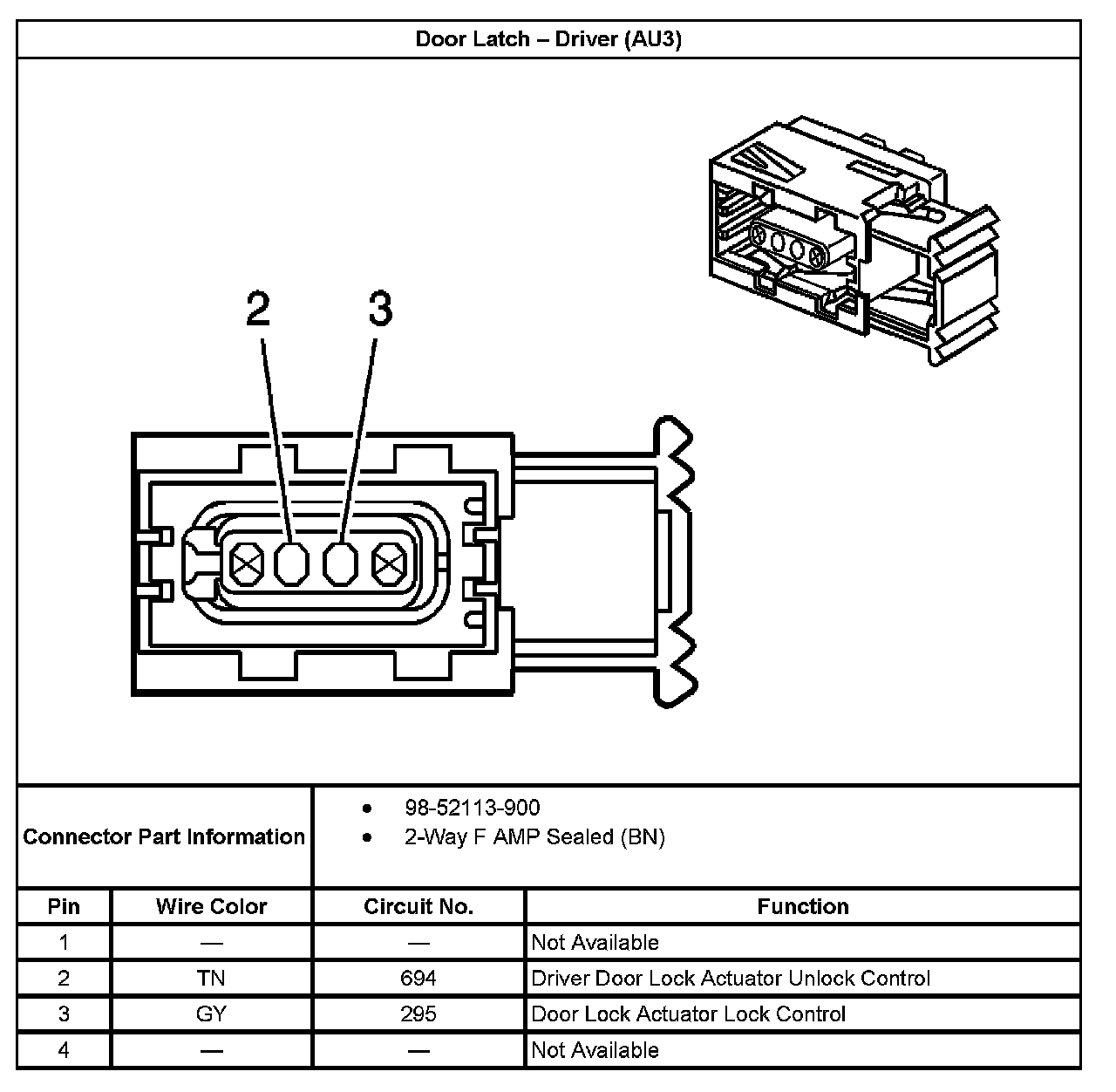

Door Latch - Driver (With RPO Code AU3):

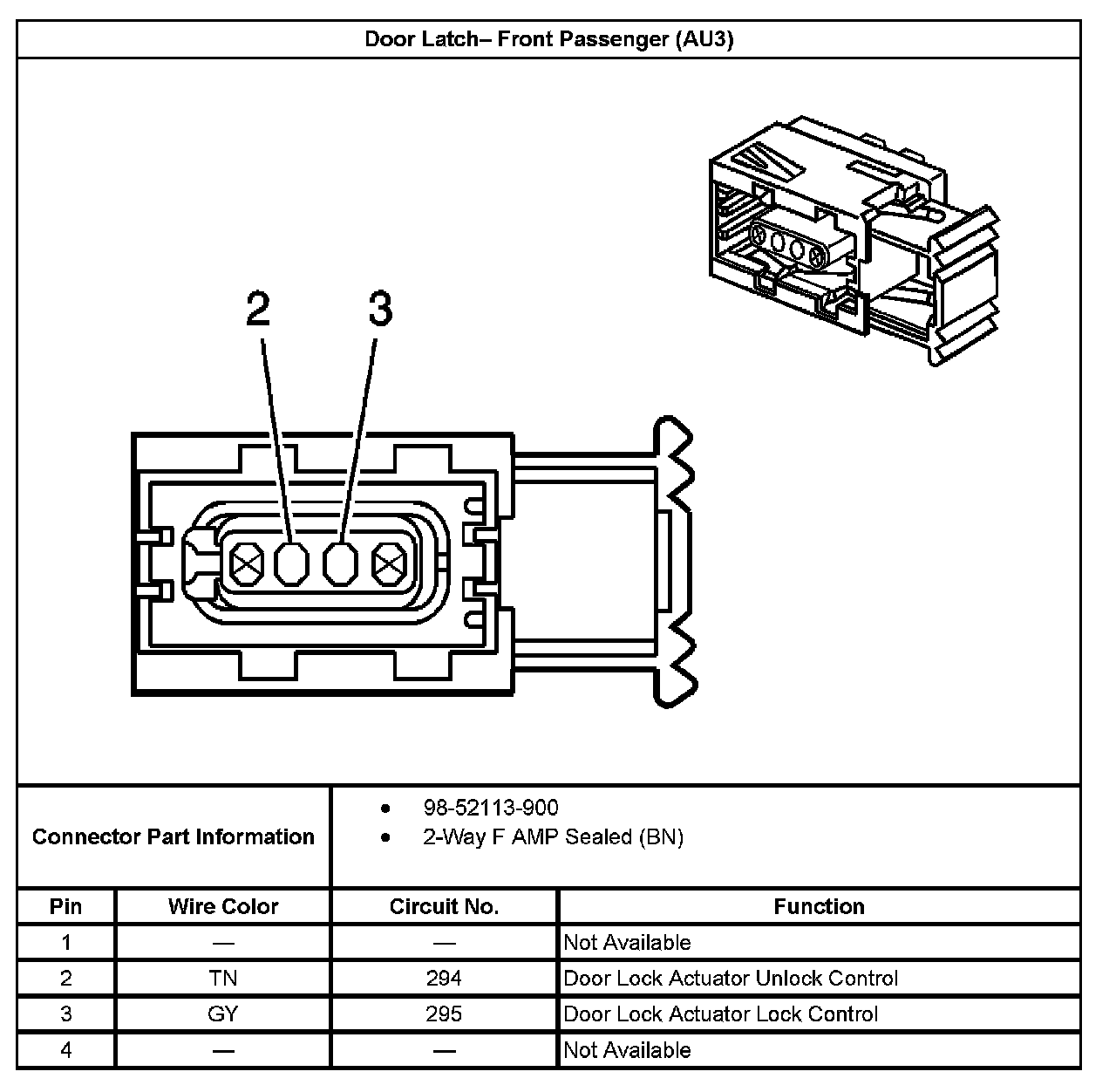

Door Latch- Front Passenger (With RPO Code AU3):

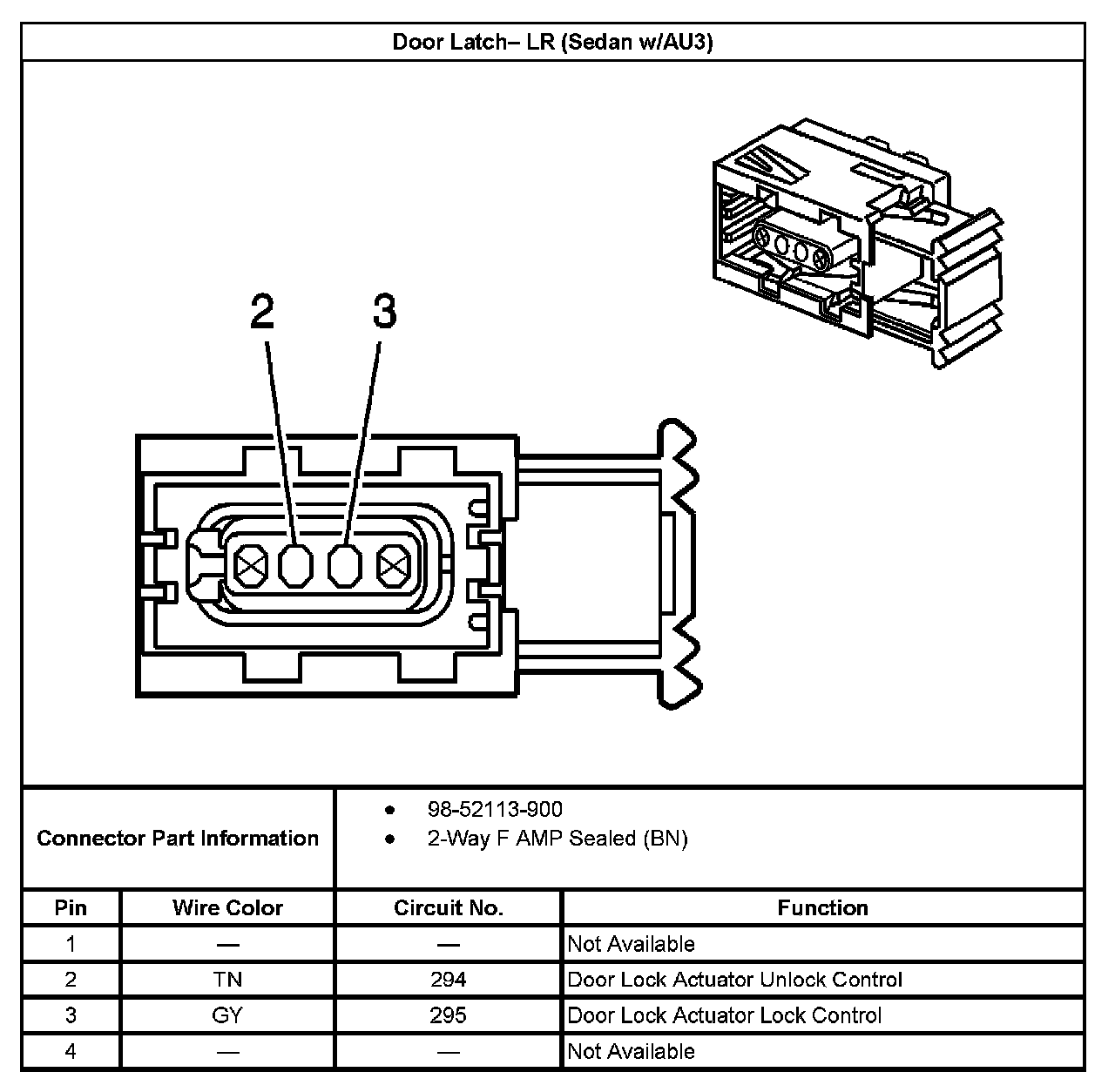

Door Latch - LR (Sedan With RPO Code AU3):

Door Latch - RR (Sedan With RPO Code AU3):
