Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Power Outlet

Auxiliary Power Outlet

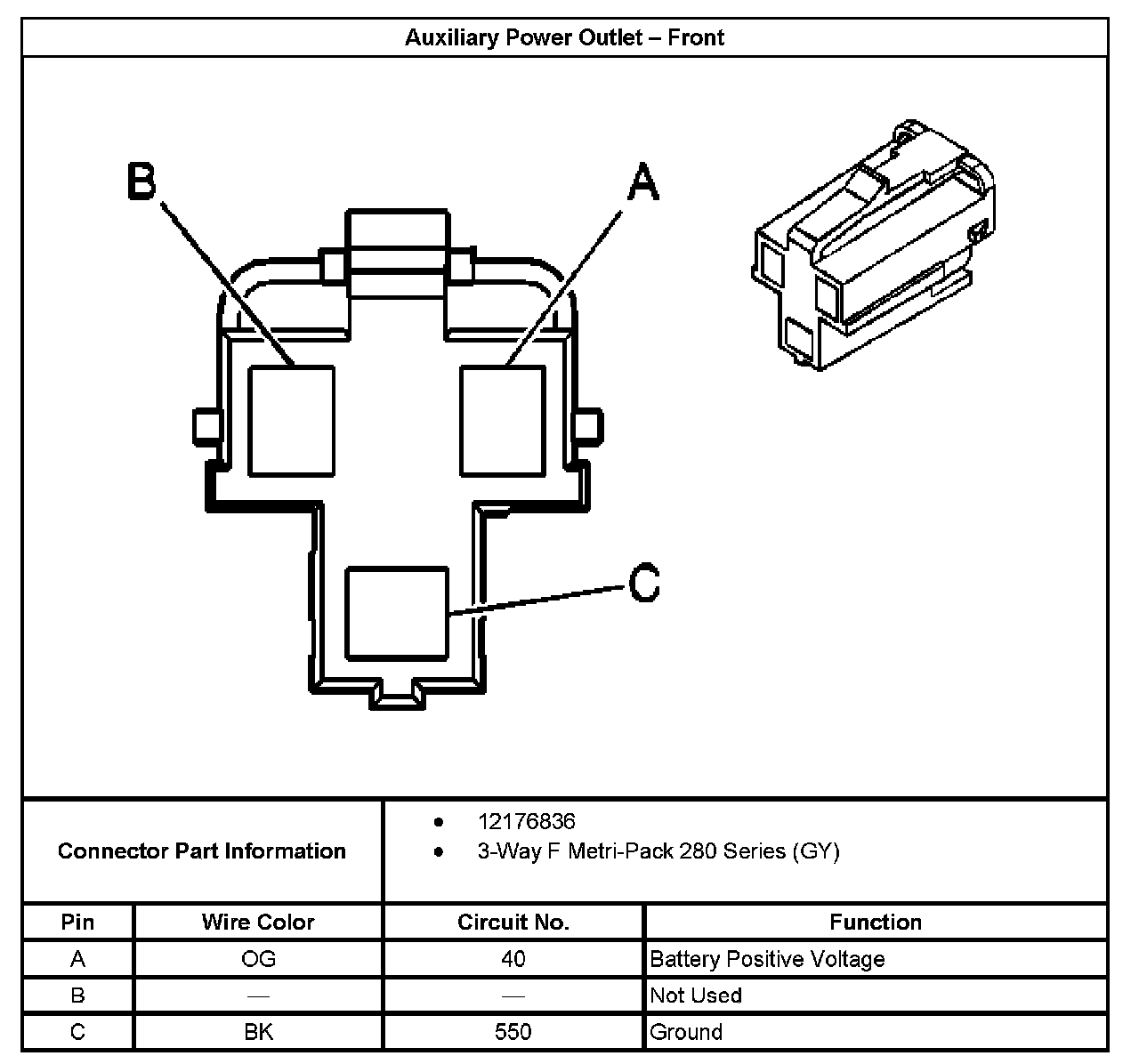

Auxiliary Power Outlet-Front:

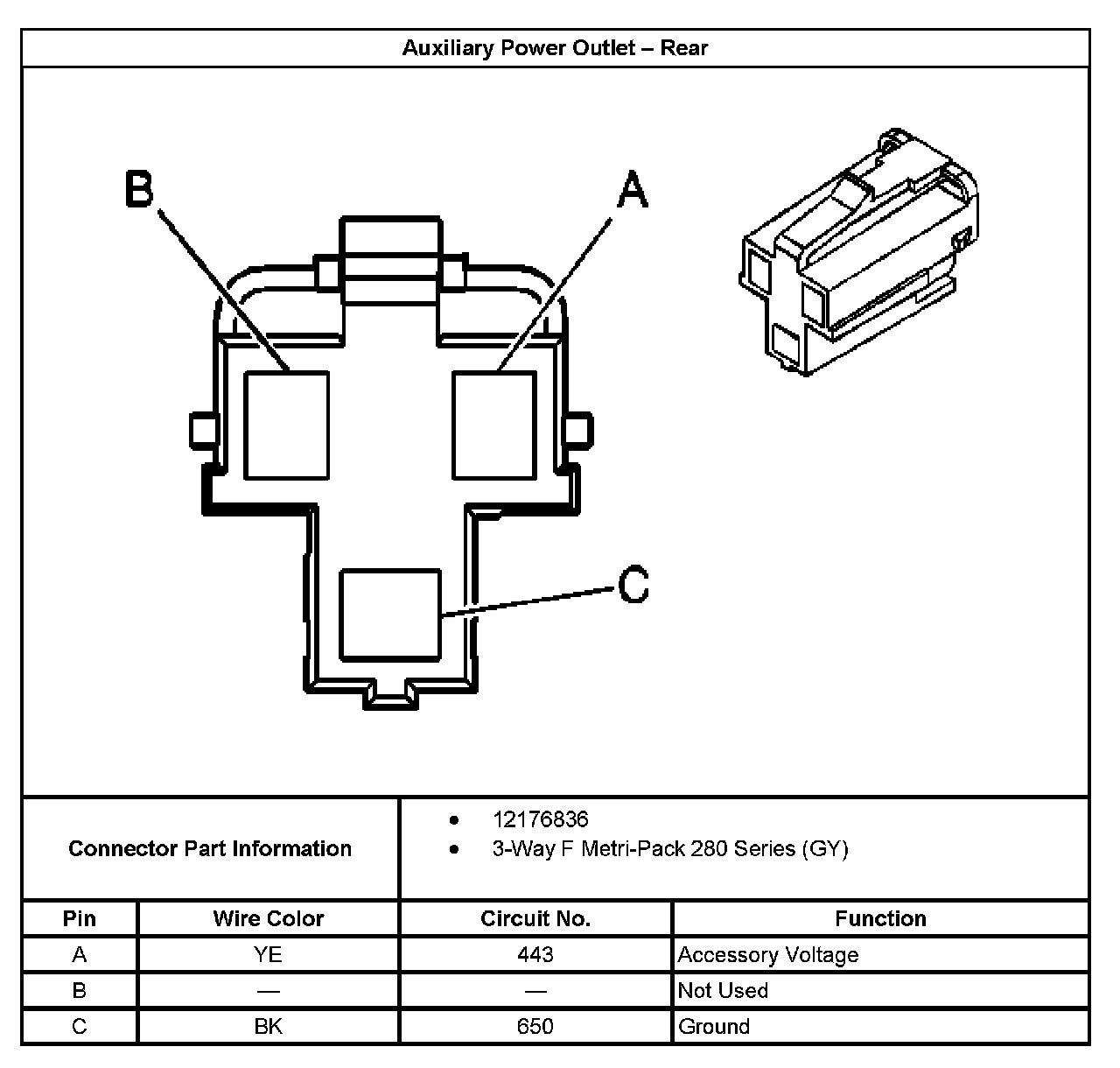

Auxiliary Power Outlet-Rear:
