Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ambient Temperature Sensor / Switch HVAC

Ambient Temperature Sensor / Switch HVAC

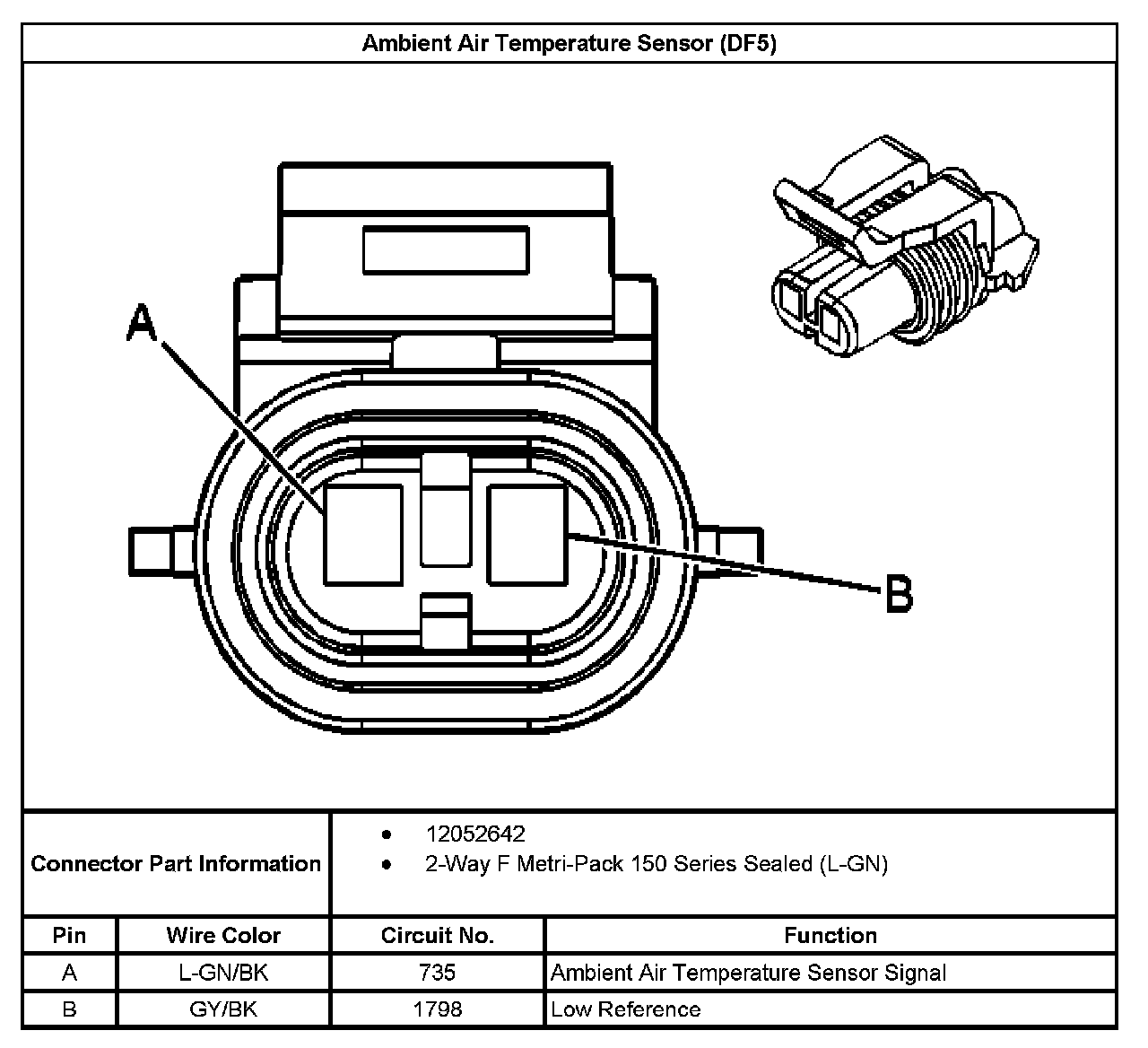

Ambient Air Temperature Sensor (With RPO Code DF5):
