Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T

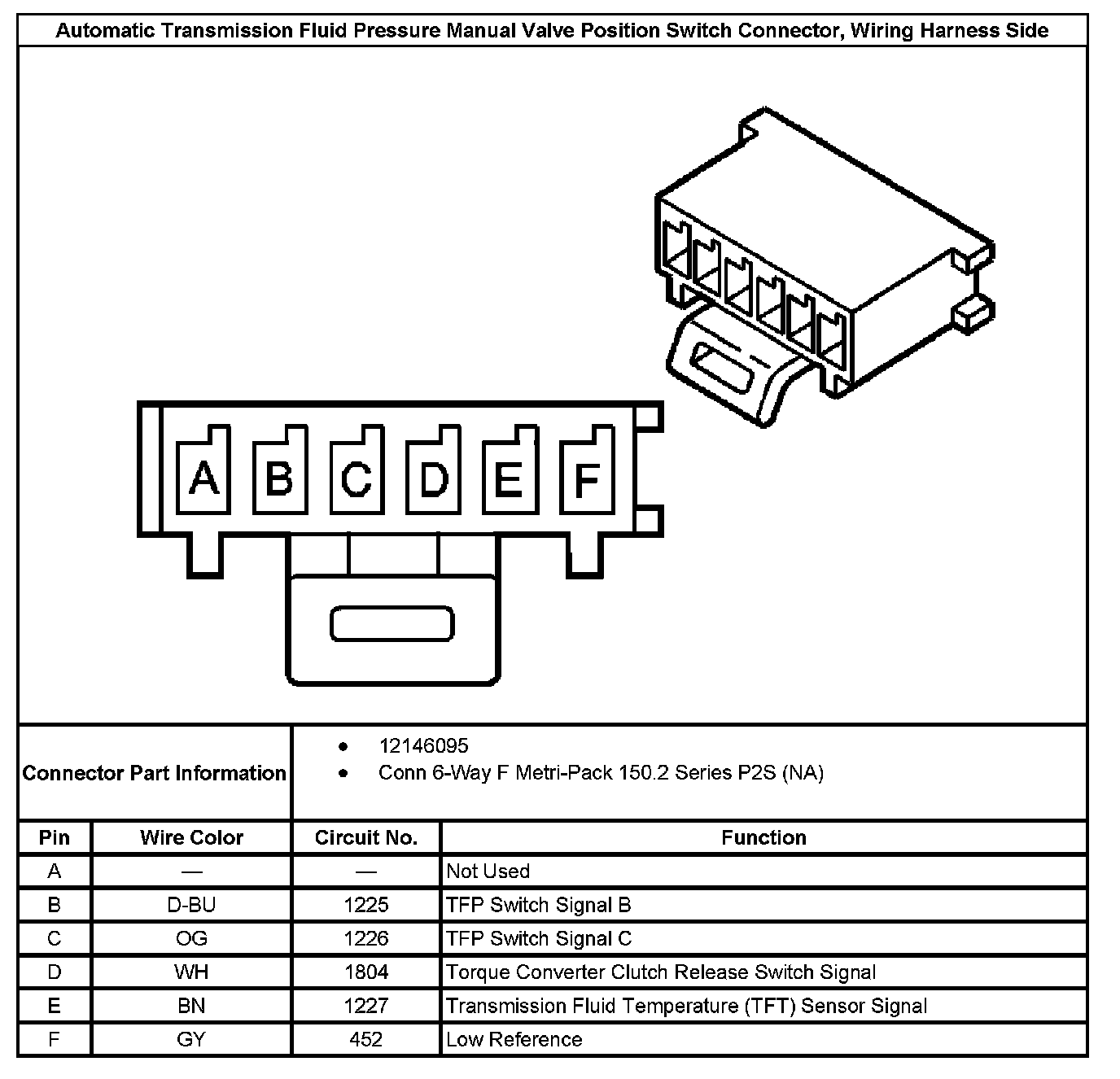

Automatic Transmission Fluid Pressure Manual Valve Position Connector, Wiring Harness Side:
