Power Window Motor

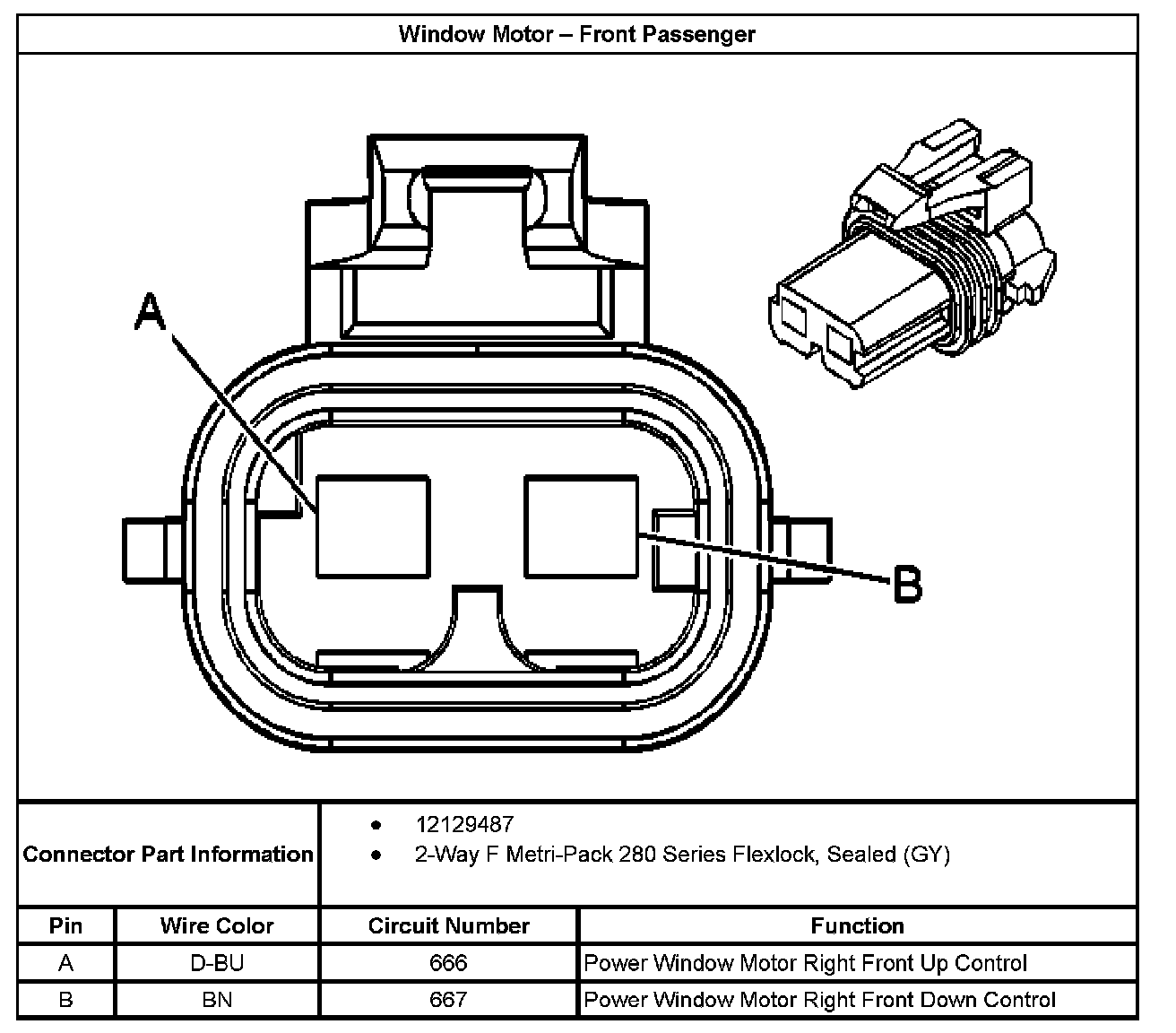

Window Motor - Front Passenger:

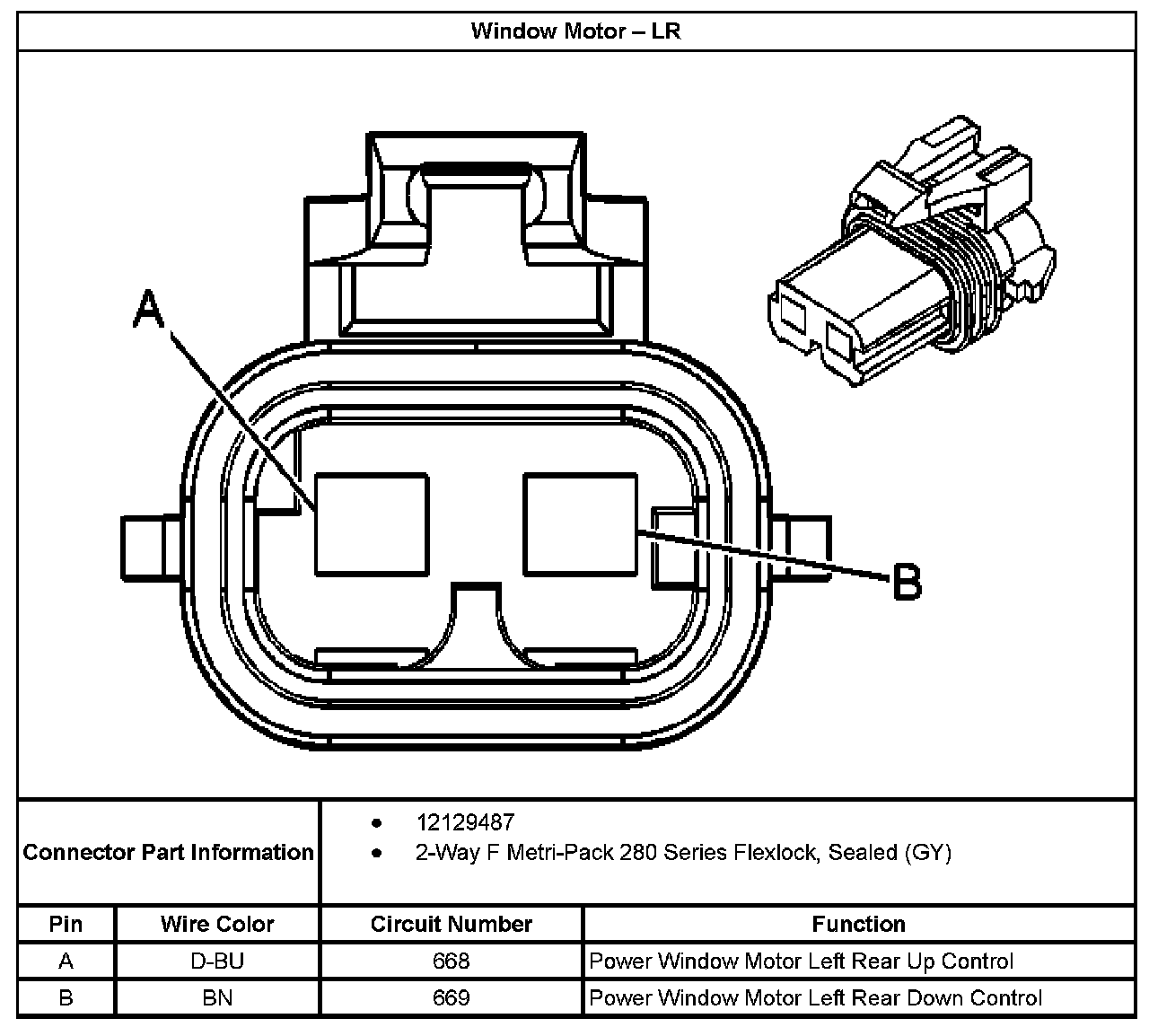

Window Motor - LR:

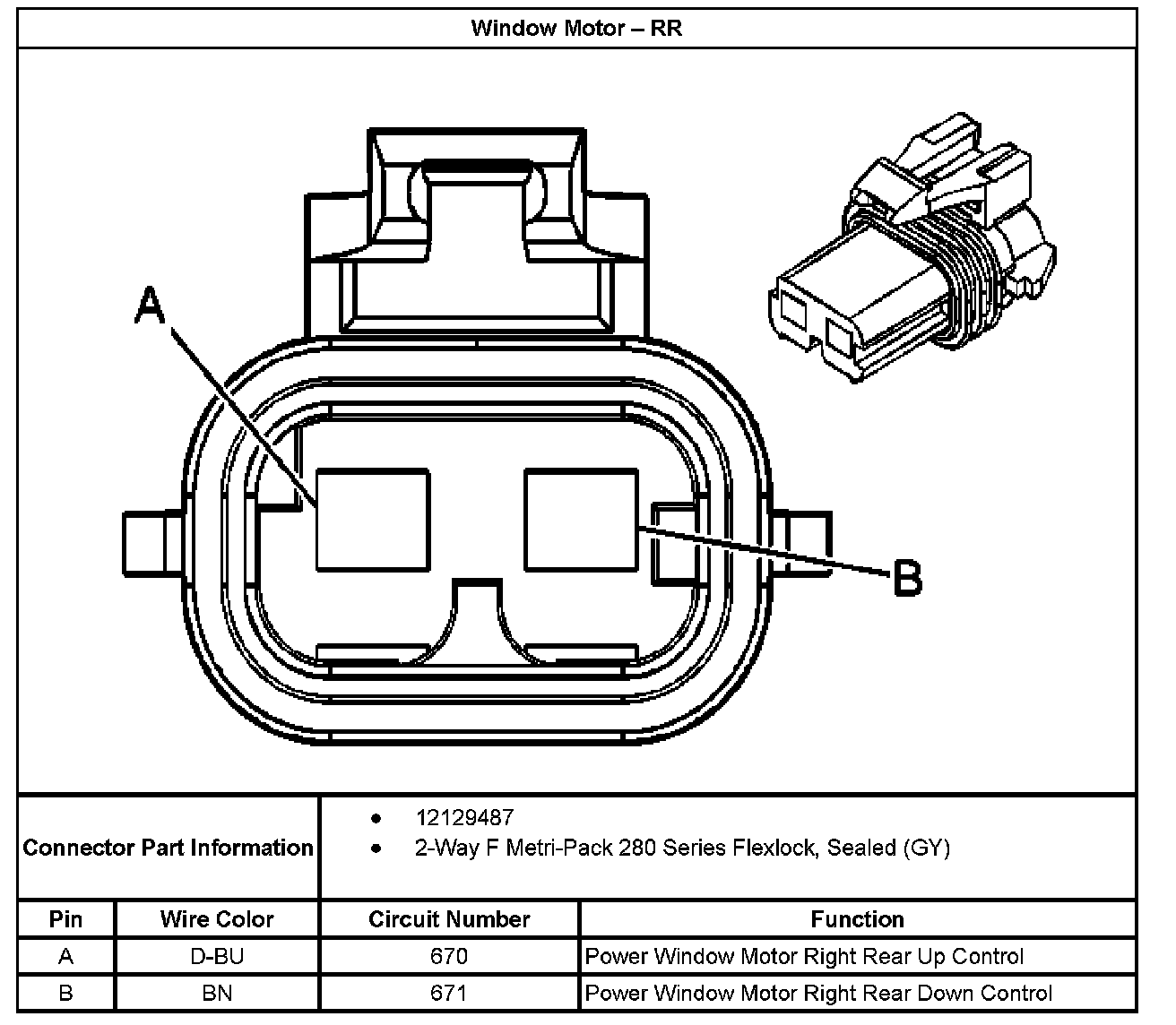

Window Motor - RR:

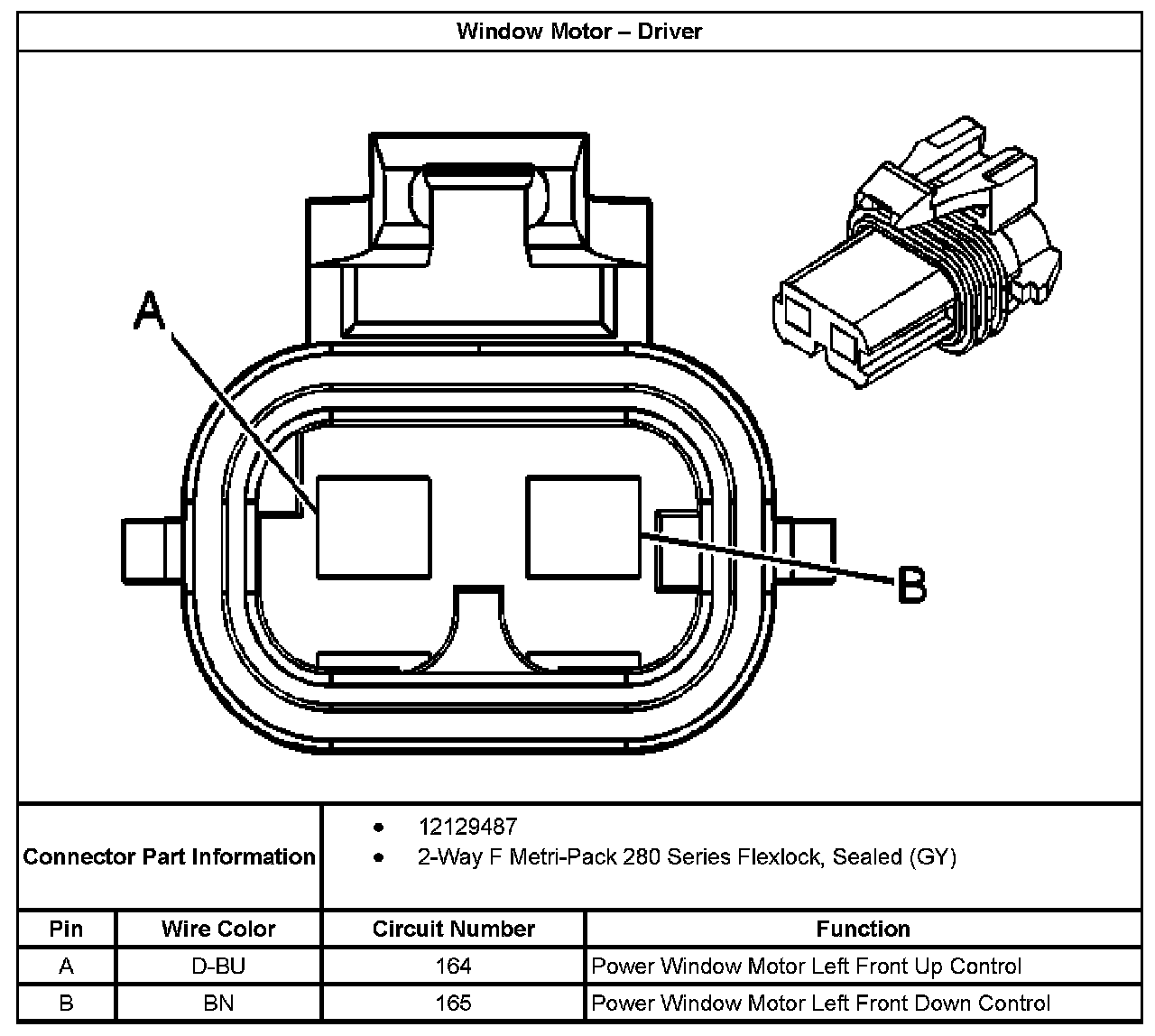

Window Motor - Driver:
