Home >> Saturn >> 2004 >> VUE AWD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - I/P C2

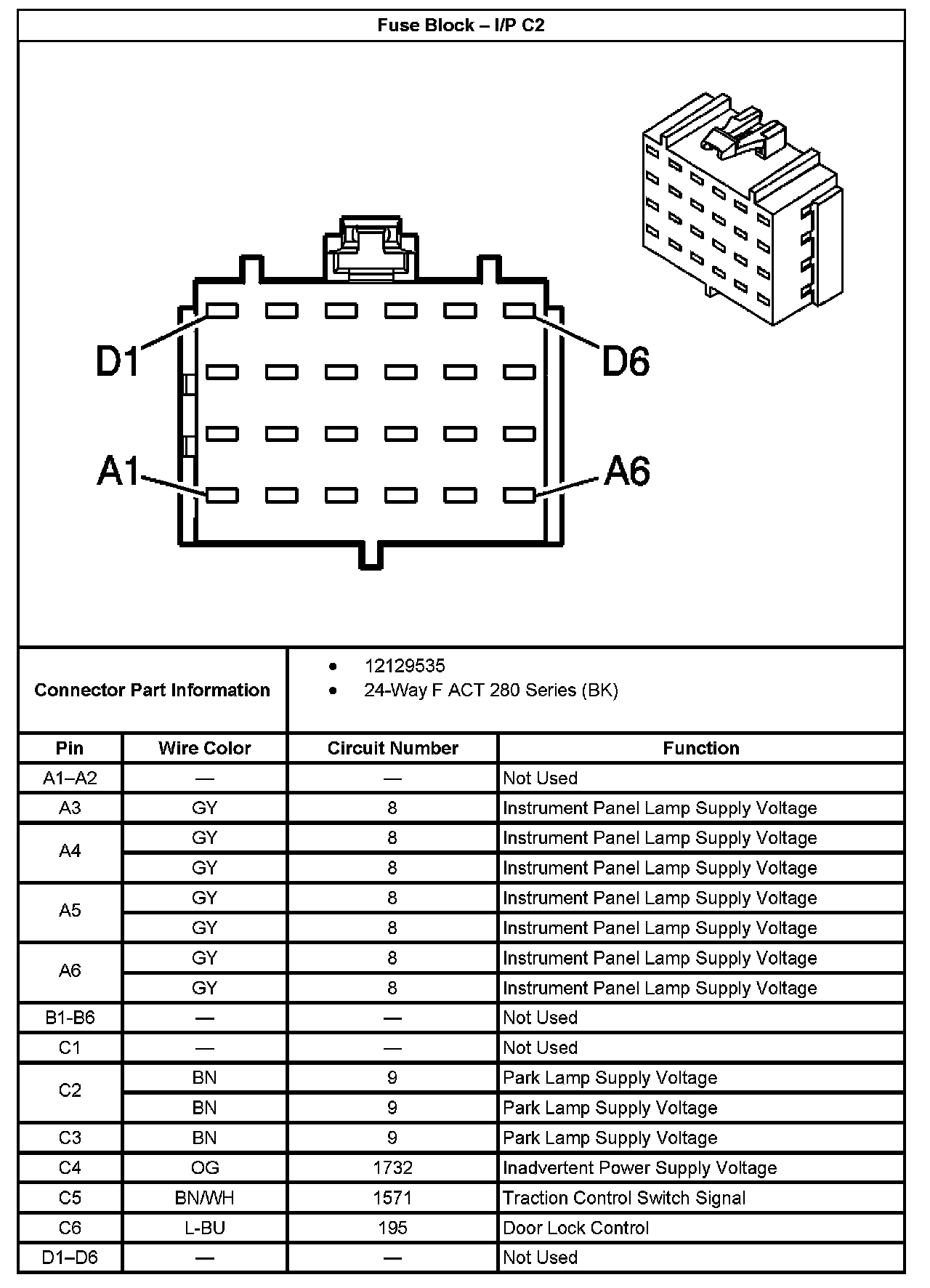

Fuse Block - I/P C2

Fuse Block - I/P C2:
