Fuel Tank Unit

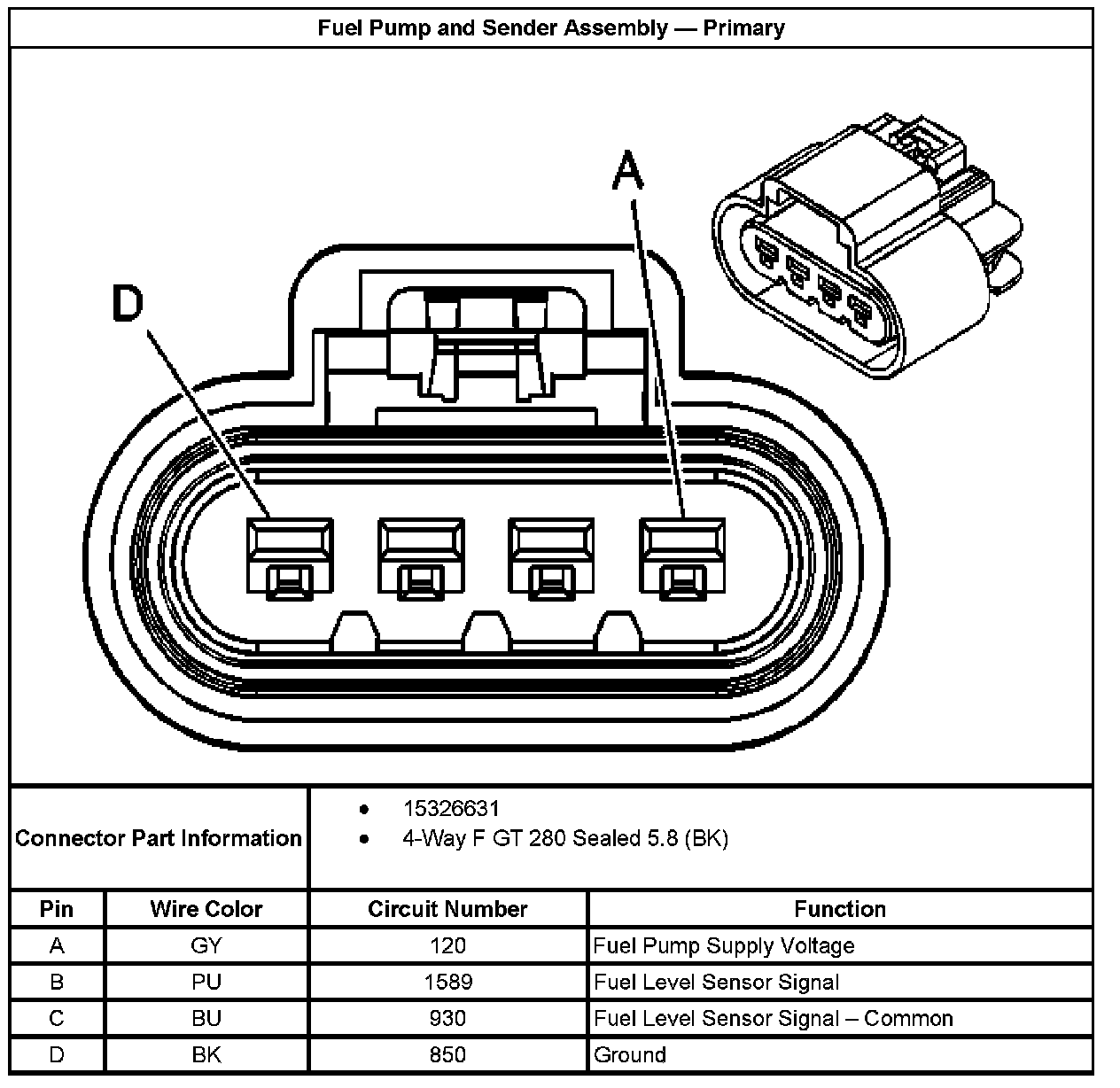

Fuel Pump And Sender Assembly - Primary:



Fuel Pump And Sender Assembly - Secondary:
