Amplifier, Sound System
Amplifier, Sound System

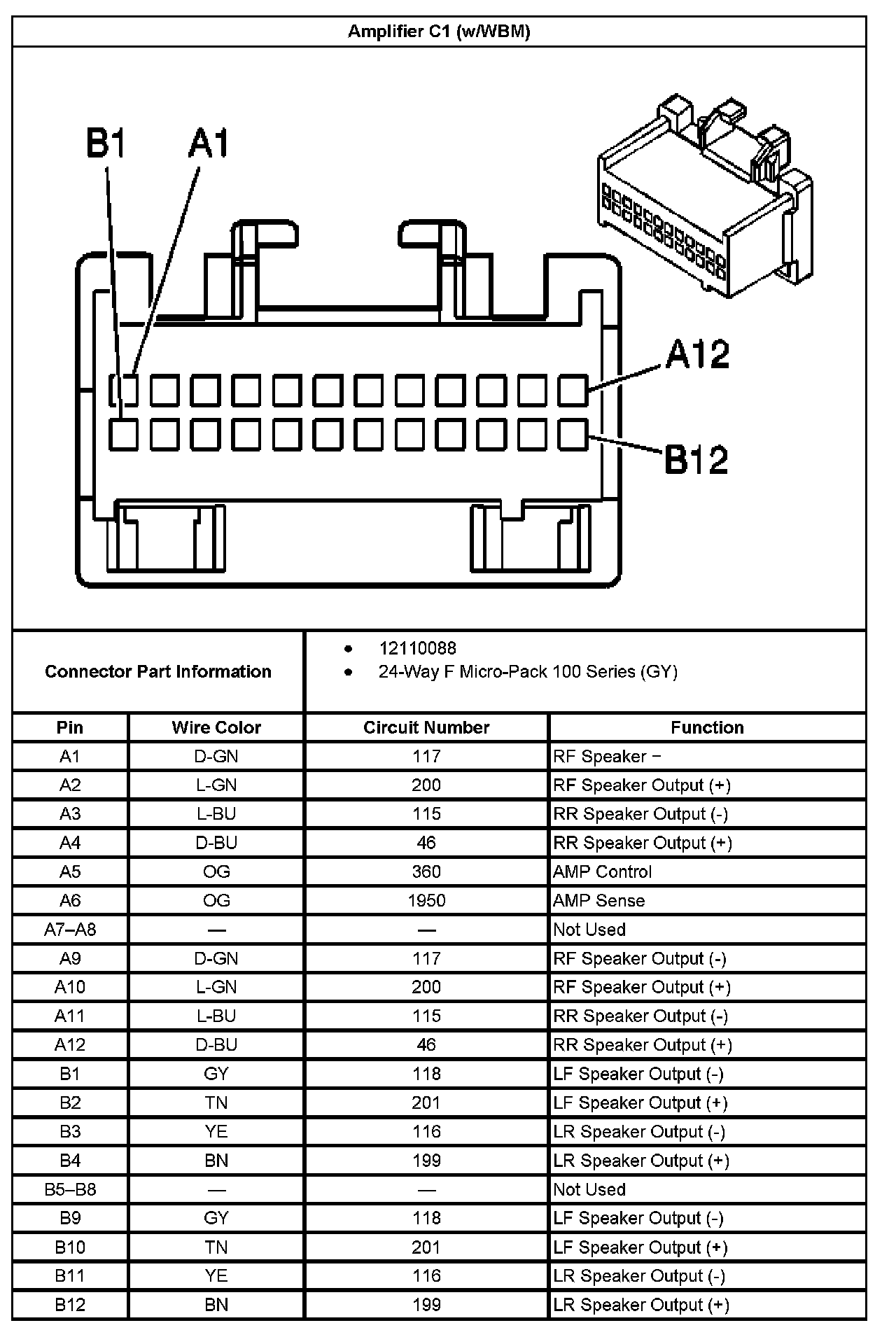

Amplifier C1 (With RPO Code WBM):

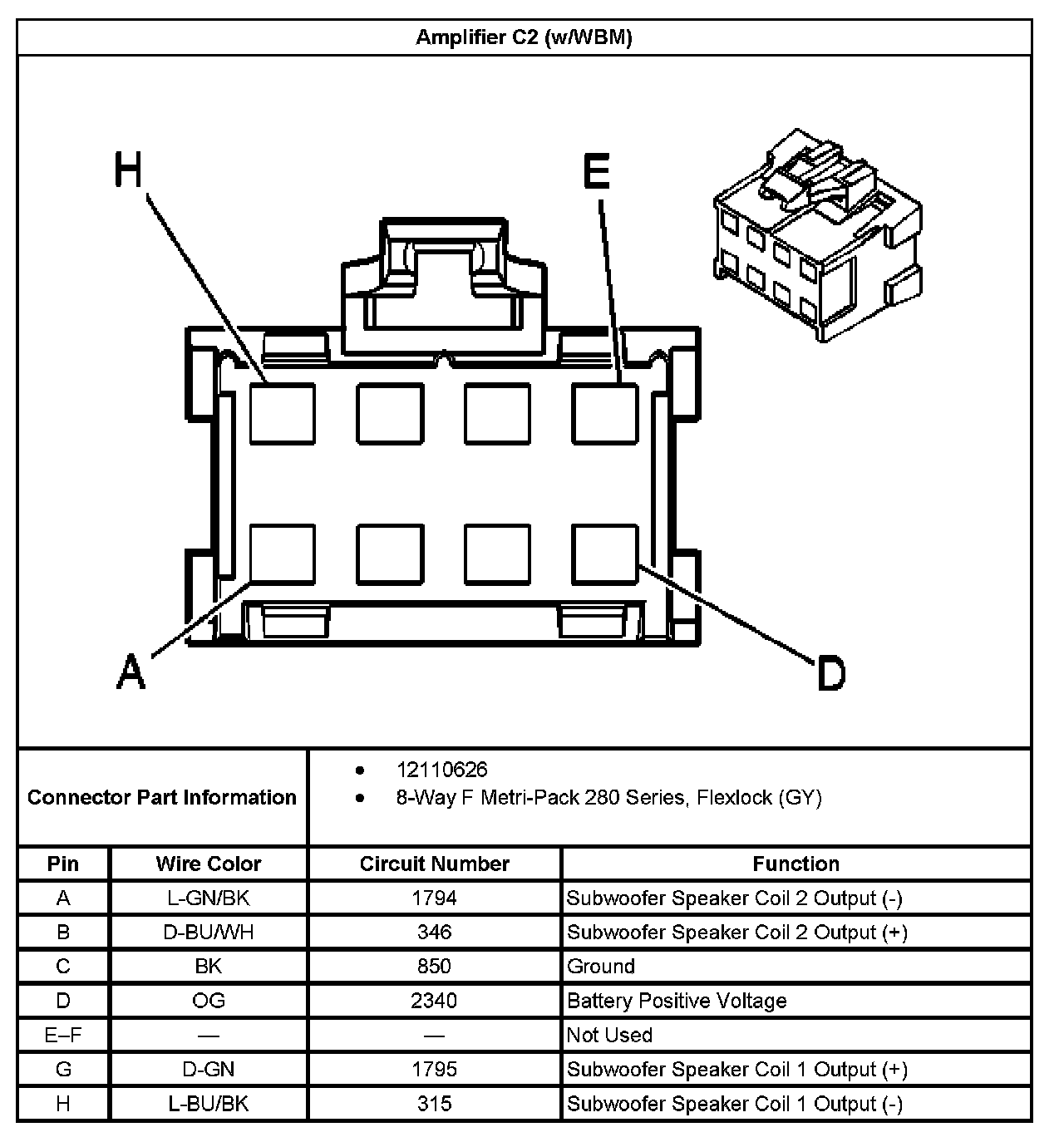

Amplifier C2 (With RPO Code WBM):
