Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

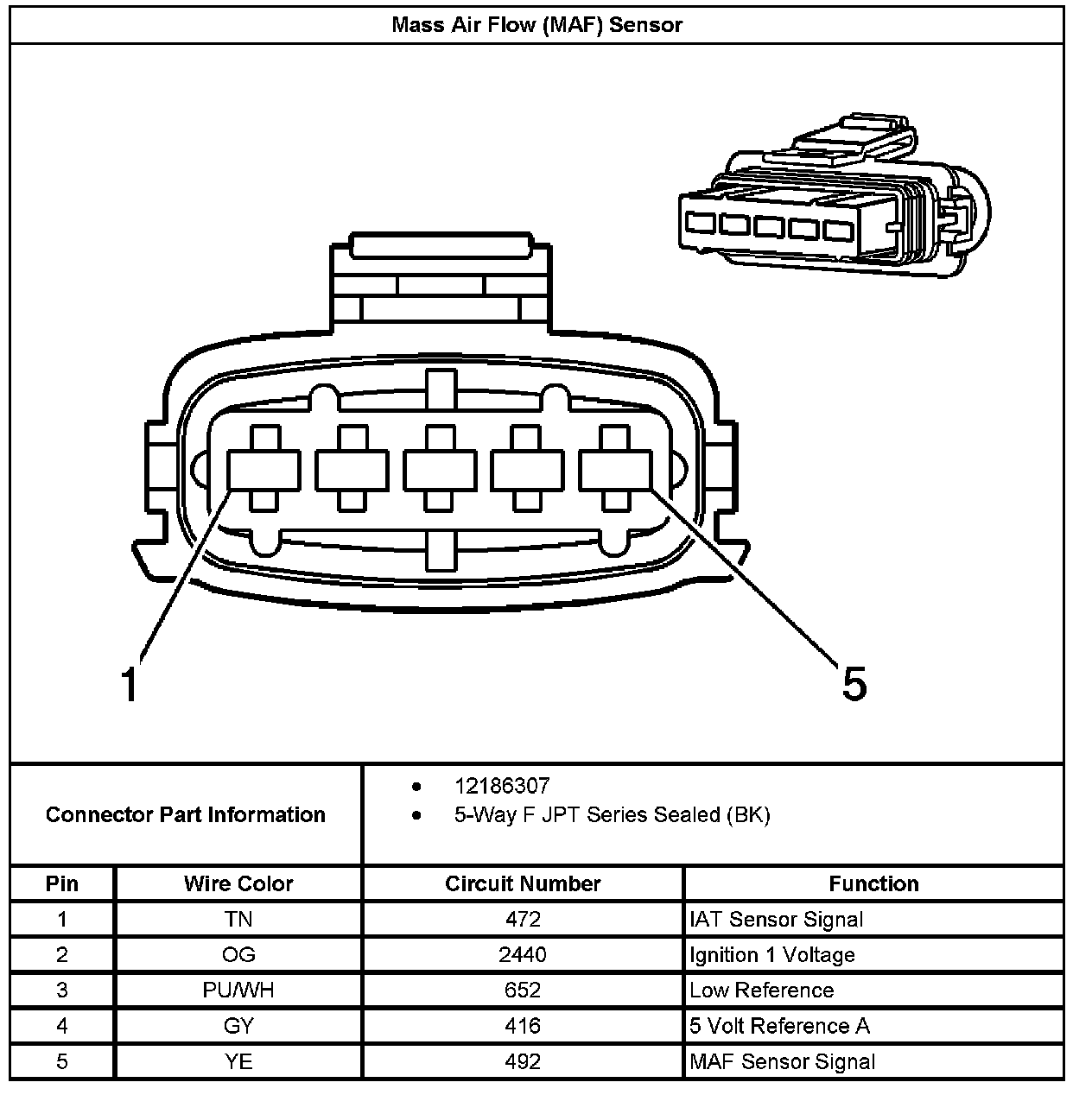

Mass Air Flow (MAF) Sensor:
