Ambient Light Sensor: Service and Repair

AMBIENT LIGHT SENSOR REPLACEMENT

REMOVAL PROCEDURE

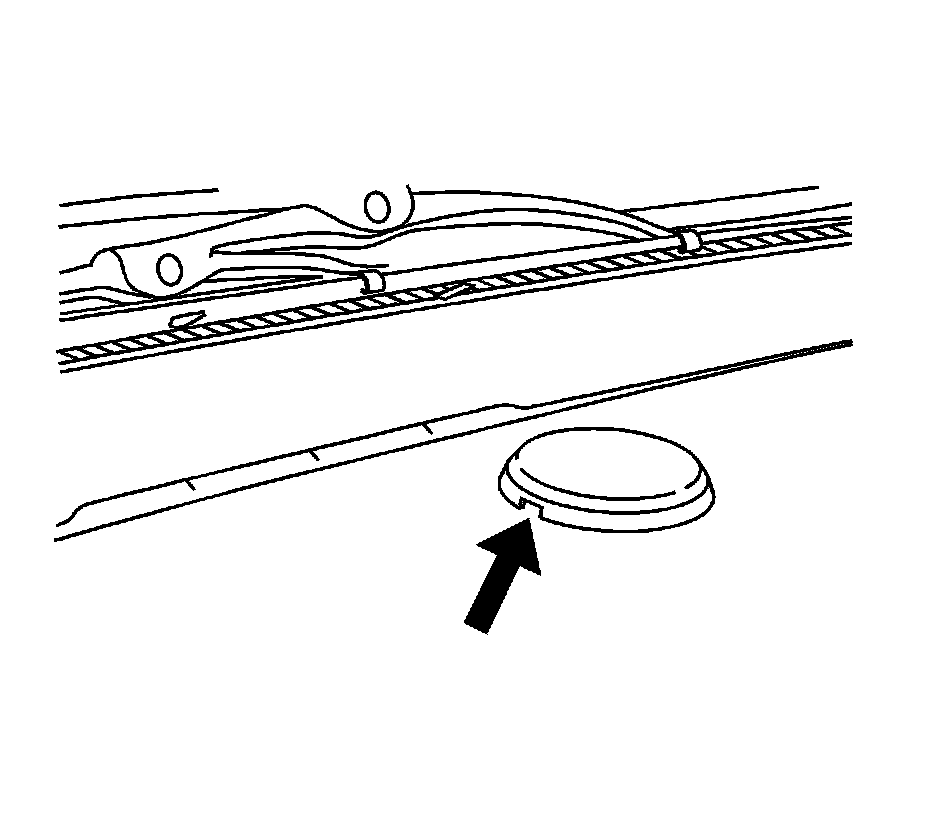

1. Insert a flat-bladed tool between the instrument panel (I/P) and light sensor.
2. Carefully pry the sensor assembly from the I/P.
3. Disconnect the wire connector.

INSTALLATION PROCEDURE




1. Install the wire connector to the sensor.
2. Push in the sensor assembly until fully seated.
