Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RF

RF

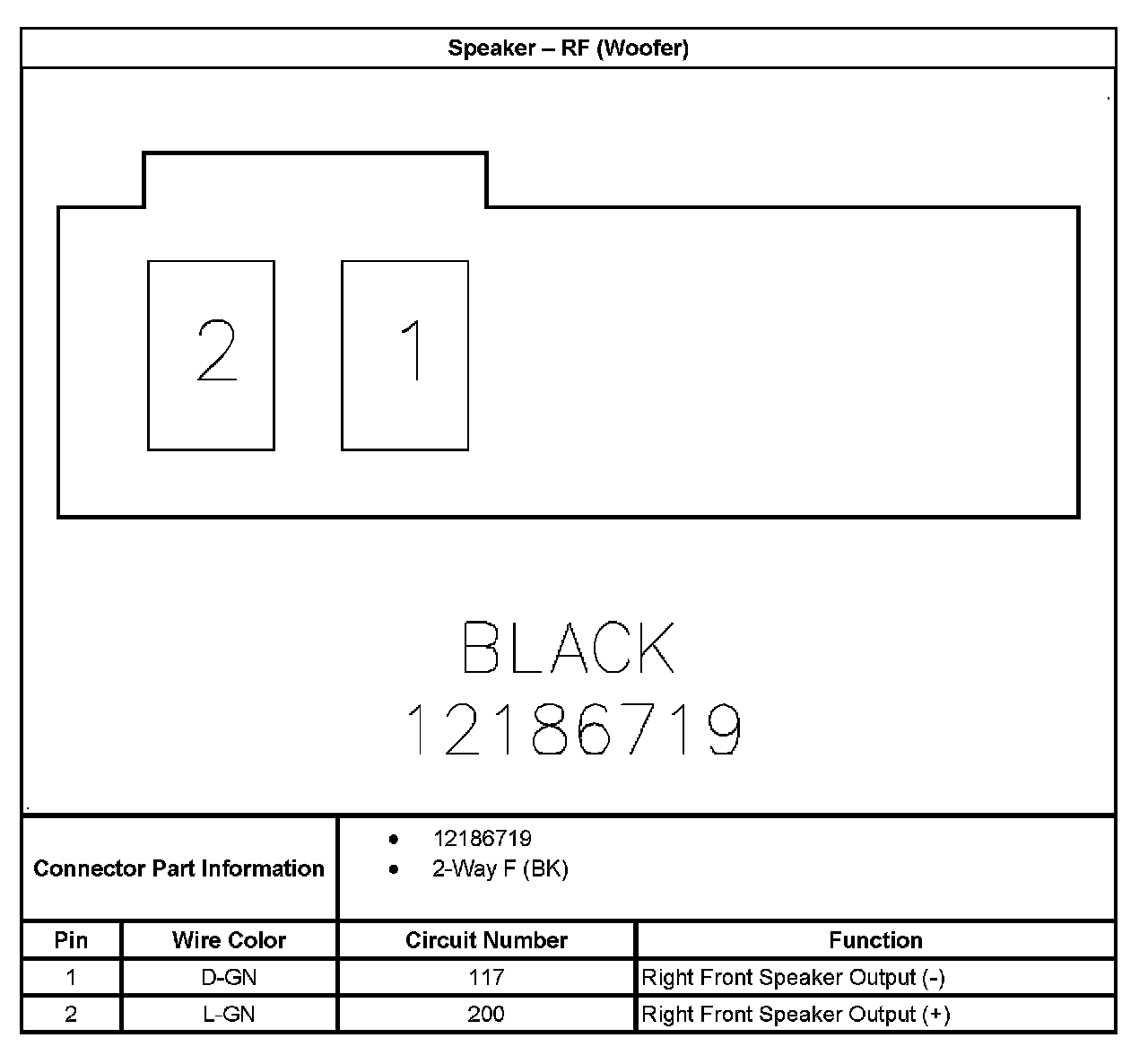

Speaker - RF (Woofer):

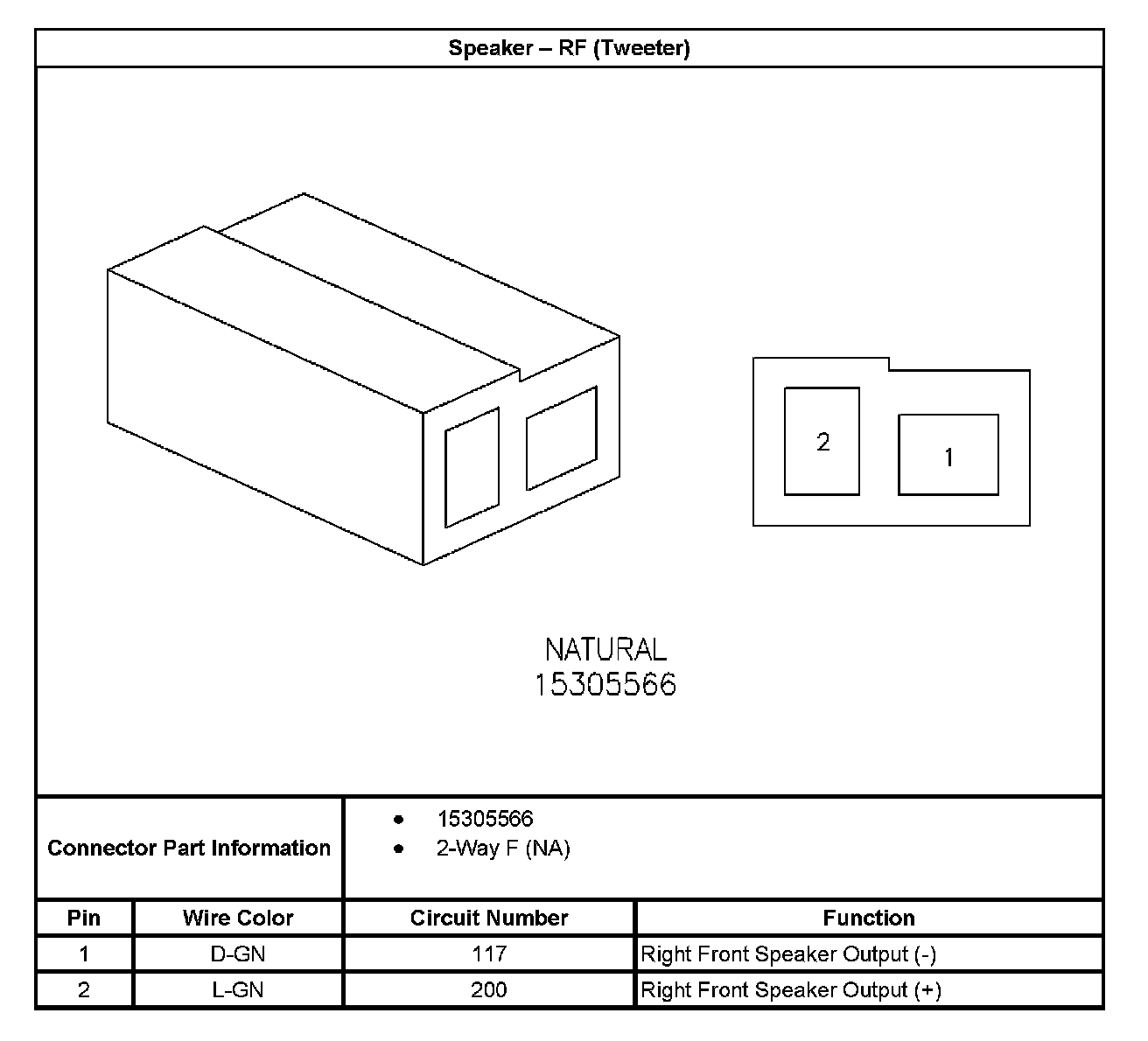

Speaker - RF (Tweeter):
