Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radiator Cooling Fan >> Cooling Fan Control Module - C1

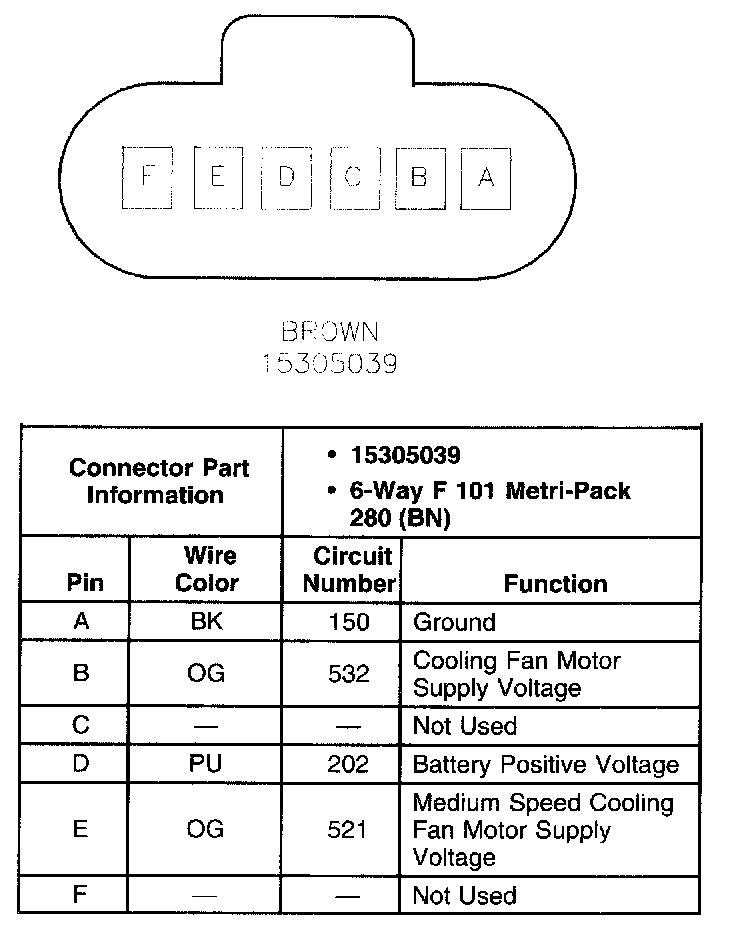

Cooling Fan Control Module - C1
